Operating Instructions & Parts Manual
Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain
the product described. Protect yourself and others by observing all safety information. Failure to comply could result in
personal injury and/or property damage. Retain instructions for future reference.
MODULE-AIR AF-36xxVT SERIES
AIR CLEANER
(AF-3643VT, AF-3623VT VERTICAL AND AF-3643VT, AF-3623VT HORIZONTAL)
Description
This 14,000 CFM Air Cleaner was designed for use as ambient air
filtration where airborne particles are prevalent. The air cleaner
consists of 6 intakes and one exhaust, one motor, one blower,
electrical components and a riveted sheet metal housing.
These units are about 750 pounds, and cannot be handled or
transported without the help of lifting tools.
It is recommended that you consult a professional electrician prior to
installing this product. If this Air Cleaner is to be used in an
application that presents a potential fire hazard, a fire protection
expert should be consulted.
Unpacking
The machine should be unpacked carefully. Check if the machine
and components are consistent with those indicated in the Parts List.
If any doubt arises or if parts appear to be missing, contact your
dealer.
MODEL
NUMBER
230V THREE PHASE
AF-36xxVT230
480V THREE PHASE
AF-36xxVT480
575V THREE PHASE
AF-36xxVT575
MODEL
TYPE:
NUMBER
(ALL)
FORWARD INCLINE
SOUND LEVEL: 68 Db(A)
APPROXIMATE WIEGHT
AF-36xxVT
MOTOR OPTIONS:
VOLTAGE
HP
10 HP 60/50
10 HP 60/50
10 HP
BLOWER:
CFM:
14000
4,000
750 lbs
Hz
AMP DRAW
27-25
12.5
60
11.2

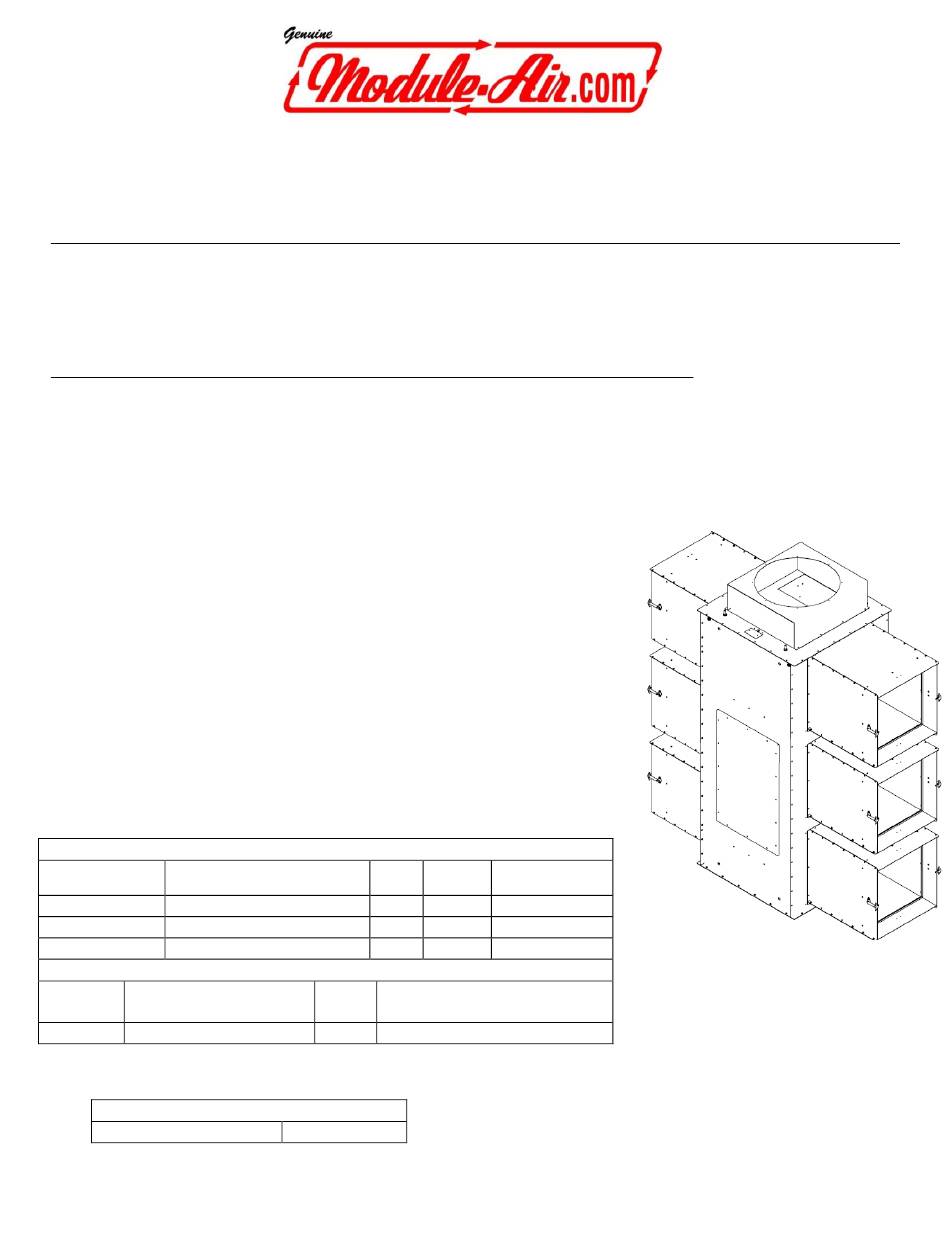

Seen above: AF-3623VT with Transition
Advertisement
Table of Contents
Related Manuals for MODULE-AIR AF-36 VT Series
Summary of Contents for MODULE-AIR AF-36 VT Series
- Page 1 Protect yourself and others by observing all safety information. Failure to comply could result in personal injury and/or property damage. Retain instructions for future reference. MODULE-AIR AF-36xxVT SERIES AIR CLEANER (AF-3643VT, AF-3623VT VERTICAL AND AF-3643VT, AF-3623VT HORIZONTAL)
-
Page 2: Operation
2. Follow step (1) to remove the prefilter, then if unit is equipped with clips, push them out and away from the bag filter, slide out the old bag filter and slide in new one until clips snap around it. Troubleshooting Chart Revised 03-01-2018 Module-Air... -
Page 3: Safety Guidelines - Definitions
If you have potentially reactive metal dusts any questions relative to a a system. Module-Air can offer (like aluminum, magnesium and particular application, DO NOT use basic guidelines for such an other materials). - Page 4 The unit can now be lowered and installation of your Module-Air air the nuts under the strut can be 13. Turn the unit “off” and filtration system, the tightened up to finish the...
- Page 5 Revised 03-01-2018 Module-Air...
- Page 6 Three phase motor 480 V Three Phase/ 60Hz 3 phase power Revised 03-01-2018 Module-Air...
- Page 7 Revised 03-01-2018 Module-Air...
- Page 8 NOTE: In order to maintain the one year warranty on MODULE-AIR products replacement filters must be purchased from MODULE-AIR for that first year. Proof of filter orders must be kept on file and be readily available upon request by MODULE-AIR.
