WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
A) Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer.
B) Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to prevent power
from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning
device, such as a tag, to the service panel.
Read carefully before attempting to assemble, install, operate or maintain the product described. Protect yourself and
others by observing all safety information. Failure to comply could result in personal injury and/or property damage.

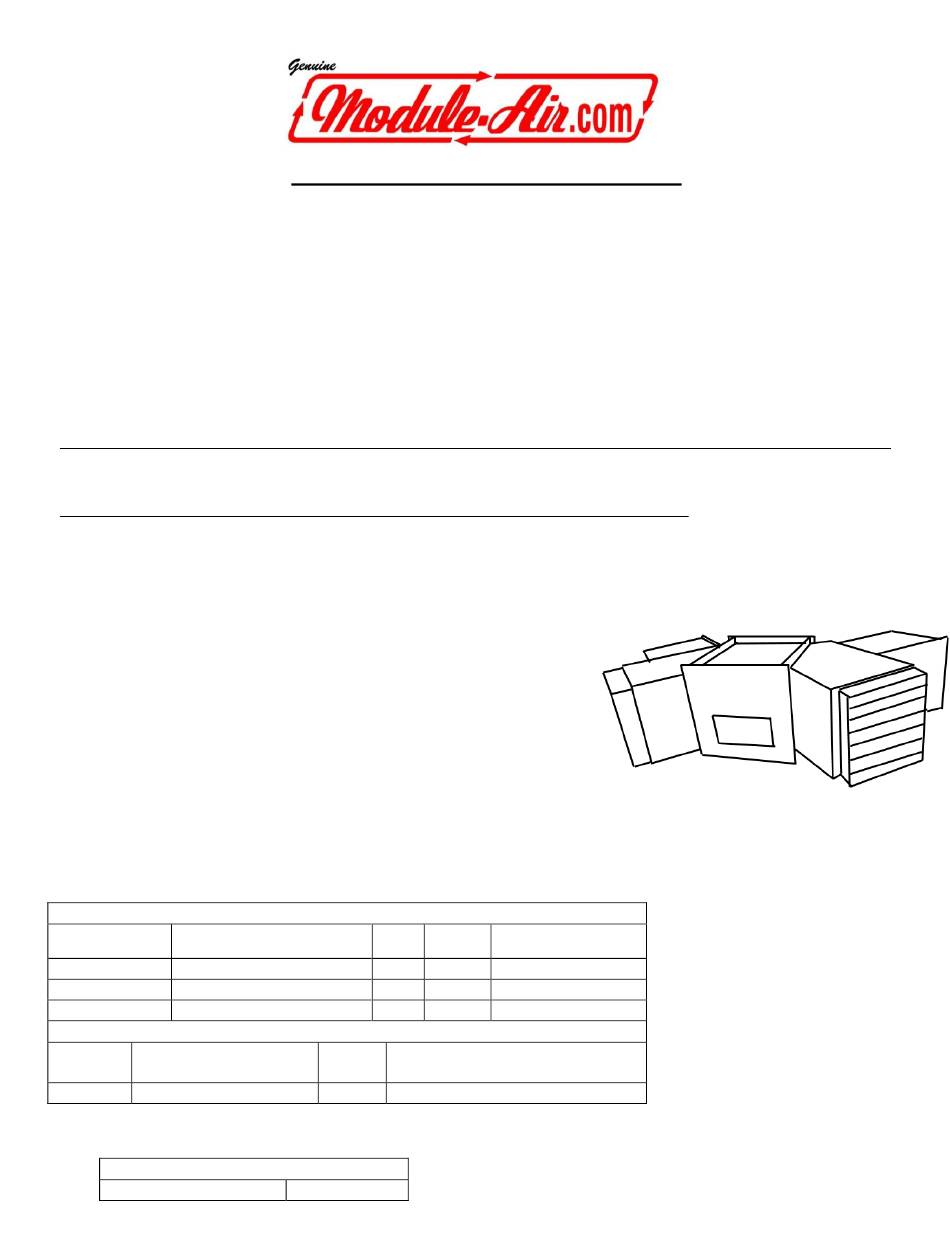

MODULE-AIR AF-2243 SERIES AIR CLEANER
Description
This 8500 CFM Air Cleaner was designed for use as ambient air
filtration where airborne particles are prevalent. The air cleaner
consists of 4 intakes and one exhaust, one motor, one blower,
electrical components and a riveted sheet metal housing.
These units are about 410 pounds, and cannot be handled or
transported without the help of lifting tools.
It is recommended that you consult a professional electrician prior to
installing this product. If this Air Cleaner is to be used in an
application that presents a potential fire hazard, a fire protection
expert should be consulted.
Unpacking
The machine should be unpacked carefully. Check if the machine
and components are consistent with those indicated in the Parts List.
If any doubt arises or if parts appear to be missing, contact your
dealer.
MODEL
NUMBER
230V THREE PHASE
AF-2243230
480V THREE PHASE
AF-2243480
575V THREE PHASE
AF-2243575
MODEL
TYPE:
NUMBER
(ALL)
FORWARD INCLINE
SOUND LEVEL: 68 Db(A)
APPROXIMATE WIEGHT
AF-2243
Operating Instructions & Parts Manual
READ AND SAVE THESE INSTRUCTIONS
Retain instructions for future reference.
MOTOR OPTIONS:
VOLTAGE
HP
5 HP
5 HP
5 HP
BLOWER:
CFM:
8500
410 lbs
Hz
AMP DRAW
60
12.6
60
6.3
60
5.0
