Protec Algo-tec 6000HT Installation, Commissioning And Service Instructions

Overview

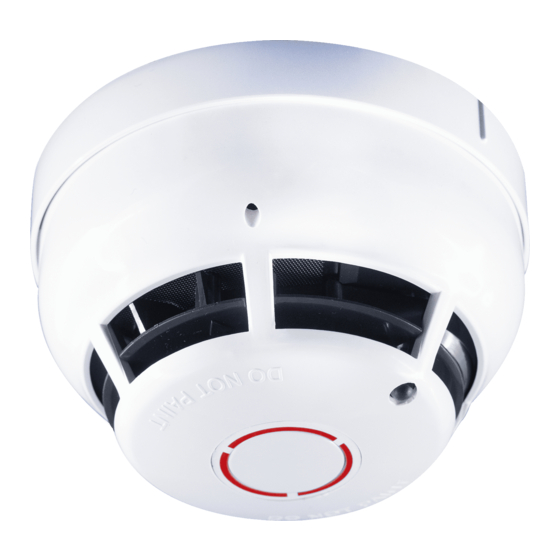

The Protec 6000PLUS/HT/SL is a loop powered fire sensor which reports back thermal levels in its installed location to the fire
alarm control panel. The sensor is also equipped with an integrated loop powered programmable electronic sounder, beacon
and an integrated loop Isolator.

Technical Specification

Loop protocol
Loop isolator fitted
Loop voltage range
Loop average quiescent current (24V loop)
Loop average alarm current (24V loop)
Analogue values
Indications
Environmental operational limits
Sounder Frequencies
IP rating
Isolator Specification

Installation

1. Base options: 6000PLUS/BASE
6000PLUS/FFBASE
28-075-01 (Plug and Play Fast Fix)
28-075-02 (Plug and Play Surface)
Note: See individual information sheets for base wiring details.
2. Install the detector in the base, turn firmly clockwise.

Commissioning

1. Each 6000PLUS detector has a unique serial number which will be used as part of the commissioning of the fire alarm
system. It is necessary to remove one of the 'peelable ' bar code labels present on the product and place it in the
commissioning booklet supplied with each Protec addressable control panel. The bar code sticker should be placed at the
relevant loop and address position intended. It is important that serial numbers are not mixed otherwise the addressing of
the 6000PLUS/HT/SL will be incorrect when commissioned.
2. Commission the device onto the system as detailed in the installation and commissioning manual for the fire alarm panel
being used.
6000PLUS/HT/SL Certification Details
EN 54 - 3: 2001 + A1 + A2
Alarm devices – Sounder
Type A: For indoor use
6000PLUS/HT/SL
High sensitivity
EN 54 - 5: 2000 + A1: 2002 Class A1
DEL2090 Issue 4 02/11 SB
6000PLUS/HT/SL Installation, Commissioning and Service Instructions
Protec Algo-tec™ 6000PLUS
Yes
18 to 27V Algo-tec™ Protocol
0.4mA
10mA
Thermal
Normal 80 to 180 bits
Fault Low <25 bits
Fault High>250 bits
On-board red indicating LED
-10 to 50 degrees C ( 95% RH no condensation or icing )
Continuous 990Hz, Warble 730Hz to 990Hz, Pip 990Hz
IP21C
Please see Protec DEL2110 for details
EN Standards Compliance/ Approvals table
Protec Fire Detection plc, Nelson, Lancashire, England, BB9 6RT
0832-CPD-1183
Point type Heat detector
Class A1/A2
6000PLUS/HT/SL
Technical Data included in this datasheet DEL2090 Issue 4
Medium Sensitivity
EN 54 - 5: 2000 + A1: 2002 Class A2
Page 1 of 3
LPCB Approved as part of product approval
LPCB Approved as part of product approval
LPCB Approved as part of product approval
LPCB Approved as part of product approval
0 8 3 2
10
EN 54 - 5
Low Sensitivity
Not approved.
Equivalent to EN 54 - 5: 2000 + A1: 2002 Class B
EN 54 - 17: 2005
Short-circuit isolator
6000PLUS/HT/SL
Copyright © Protec Fire Detection plc 2010
