Protec 6000 PLUS Installation, Commissioning And Service Instructions

Overview

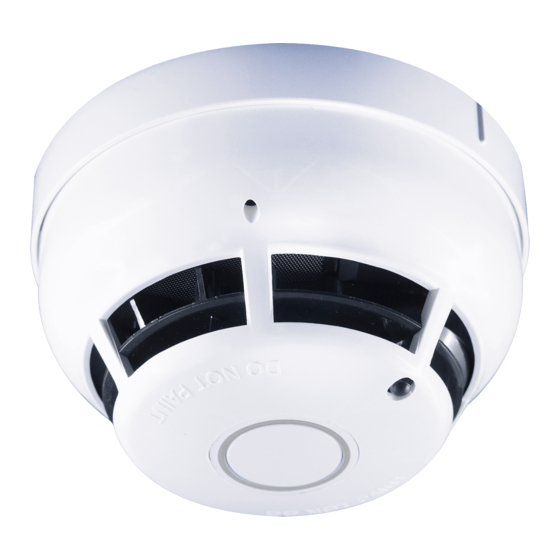

The Protec 6000PLUS/OPHTCO/S is a loop powered Fire sensor which reports Smoke, Thermal and Carbon Monoxide levels
in its installed location to the fire alarm control panel. The sensor is also equipped with an integrated loop powered sounder.

Technical Specification

Loop protocol
Loop isolator fitted
Loop voltage range
Loop average quiescent current (24V loop)
Loop average alarm current (24V loop )
Analogue values
Indications
Environmental operational limits
Sounder Frequencies
Sounder synchronisation
IP rating
Isolator Specification

Installation

1. Base options: 6000PLUS/BASE
6000PLUS/FFBASE
28-075-01 (Plug and Play Fast Fix)
28-075-02 (Plug and Play Surface)
Note: See individual information sheets for base wiring details.
2. Install the detector in the base, turn firmly clockwise.

Commissioning

1. Each 6000PLUS/ detector has a unique serial number which will be used as part of the commissioning of the fire alarm
system. It is necessary to remove one of the 'peelable' bar code labels present on the product and place it in the
commissioning booklet supplied with each Protec addressable control panel. The bar code sticker should be placed at the
relevant loop and address position intended. It is important that serial numbers are not mixed otherwise the addressing of
the 6000PLUS/OPHTCO/S will be incorrect when commissioned.
Commission the device onto the system as detailed in the installation and commissioning manual for the fire alarm panel
2.
being used.
6000PLUS/OPHTCO/S Certification Details
EN 54 - 5
Point type heat detector
Class A2
6000PLUS/OPHTCO/S
High Sensitivity Med Sensitivity
No Approval Approved to:
EN 54-7: 2000 + A1: 2002 + A2: 2006
EN 54-5: 2000 + A1: 2002, Class A2
CEA 4021:2003-07
DEL2104 Issue 4 02/11 SB
6000PLUS/OPHTCO/S Installation, Commissioning and Service Instructions
Protec Algo-tec™ 6000PLUS
Yes
18 to 27V Algo-tec™ loop
0.45 mA
5mA
Smoke
Normal 40 to 60 bits
Fault Low <35 bits
Fault low High>90 bits
On-board red indicating LED
-10 to 50 degrees C ( 95% RH no condensation or icing )
Continuous 990Hz, Warble 730Hz to 990Hz, Pip 990Hz
Sounder synchronisation is achieved by panel control
IP21C
Please see Protec DEL2110 for details
EN Standards Compliance/ Approvals table
Protec Fire Detection plc, Nelson, Lancashire, England, BB9 6RT
EN 54 - 7
Point type smoke detector
6000PLUS/OPHTCO/S
Technical Data included in this datasheet DEL2104 Issue 4
Thermal
Normal 80 to 180 bits
Fault Low <25 bits
Fault High>250 bits
LPCB Approved as part of product approval
LPCB Approved as part of product approval
LPCB Approved as part of product approval
LPCB Approved as part of product approval
0 8 3 2
10
0832-CPD-1177
EN 54 - 3: 2001 + A1 + A2
Alarm devices – Sounder
Type A: For indoor use
6000PLUS/OPHTCO/S
Low Sensitivity
Approved to:
EN 54-7: 2000 + A1: 2002 + A2: 2006
EN 54-5: 2000 + A1: 2002, Class A2
CEA 4021:2003-07
Page 1 of 3
Carbon Monoxide
Normal 30 to 100 bits
Fault Low <20 bits
Fault High>150 bits
EN 54 - 17:2005
Short-circuit isolator
6000PLUS/OPHTCO/S
Isolator/sounder
Approved to:
EN 54-17: 2005
EN 54-3: 2001 + A1: 2002 + A2:
2006
Copyright © Protec Fire Detection plc 2010
