Protec 6000PLUS/HT Installation, Commissioning And Service Instructions

Overview

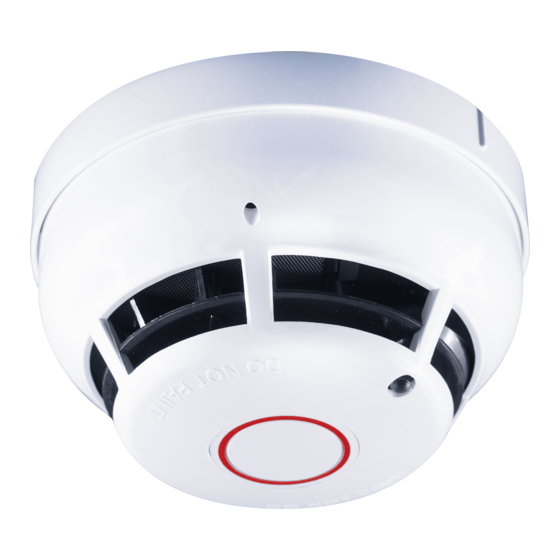

The Protec 6000PLUS/HT is a loop powered fire sensor which reports back thermal levels in its installed location to the fire
alarm control panel.

Technical Specification

Loop protocol
Loop isolator fitted
Loop voltage range
Loop quiescent current (24V average loop)
Loop alarm current ( maximum )
Analogue values
Indications
Environmental operational limits

Installation

1. Base options: 6000PLUS/BASE
6000PLUS/FFBASE
28-075-01 (Plug and Play Fast Fix)
28-075-02 (Plug and Play Surface)
Note See individual information sheets for base wiring details.
2. Install the detector in the base, turn firmly clockwise.

Commissioning

1. Each 6000PLUS detector has a unique serial number which will be used as part of the commissioning of the fire alarm
system. It is necessary to remove one of the 'peelable ' bar code labels present on the product and place it in the
commissioning booklet supplied with each Protec addressable control panel. The bar code sticker should be placed at the
relevant loop and address position intended. It is important that serial numbers are not mixed otherwise the addressing of
the 6000PLUS/HT will be incorrect when commissioned.
2. Commission the device onto the system as detailed in the installation and commissioning manual for the fire alarm panel
being used.
6000PLUS/HT Certification Details
High Sensitivity
EN 54-5: 2000 + A1: 2002 Class A1
DEL2088 Issue 4 02/11 SB
6000PLUS/HT Installation, Commissioning and Service Instructions
Protec Algo-tec™ 6000PLUS
No
18 to 27V Algo-tec™ Protocol
0.2 mA
2.0mA
Thermal
Normal 80 to 180 bits
Fault Low <25 bits
Fault High>250 bits
On-board red indicating LED
-10 to 50 degrees C ( 95% RH no condensation or icing )
LPCB Approved as part of product approval
LPCB Approved as part of product approval
LPCB Approved as part of product approval
LPCB Approved as part of product approval
EN/CEA Standards Compliance/ Approvals table
0 8 3 2
Protec Fire Detection plc, Nelson, Lancs
10
0832-CPD-1169
EN 54 - 5:
Point type Heat Detector
Class A1/A2
6000PLUS/HT
Technical Data included in this datasheet. DEL 2088 Issue 4
Medium Sensitivity
EN 54-5: 2000 + A1: 2002 Class A2
Page 1 of 2
Low Sensitivity
Not approved.
Equivalent to EN 54-5: 2000 + A1: 2002
Class B
