Funbikes QD03K Owner's Manual page 9

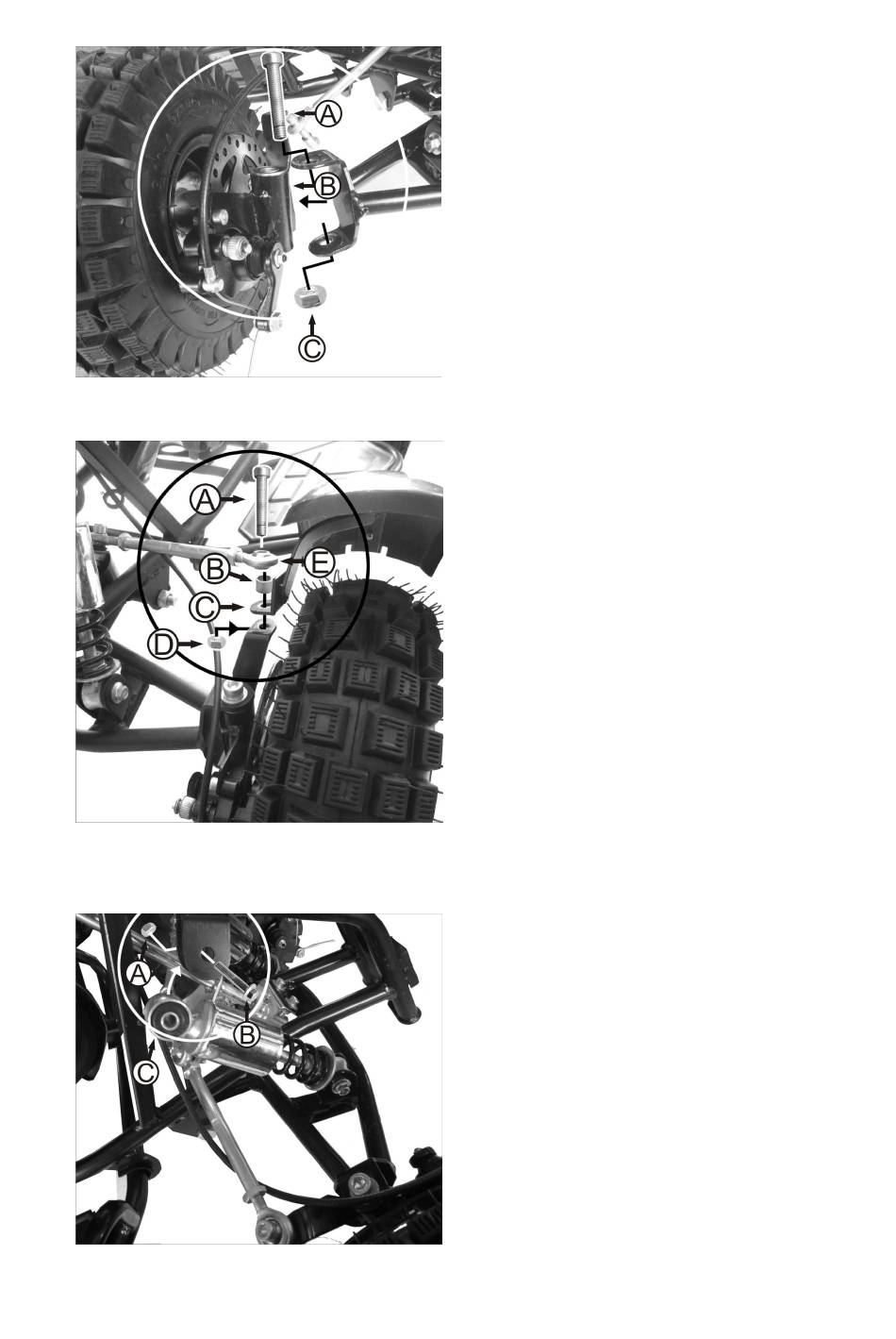

ASSEBMLY TIE ROD
ASSEBMLY FRONT SHOCK
ASSEMLY BUMPER
A: Bolt M10×90 2pcs
B: Wheel suspension left and right
C: Nut M10 2pcs
1. Put the front wheel suspension (B) into the
front swing arm joint, align the bearing
hole to the joint upper and bottom hole.
2. Mount the bolt (A) through the hole and
twist the nut (C),tighten it securely with
17mm open end wrench and 8mm allen
wrench.
A :Bolt M8×40 2pcs
B: Bush Φ10×1.5×10 2pcs
C: Bracket left and right 2pcs
D :Nut M8 2pcs
E. Tie rod left and right 2pcs
1. Align the hole of tie rod end ball (E),
bush(B), bracket of mudguard(C) in
sequence.
2.Mount the bolt(A) and tighten the nut (D)
securely with 13mm open end wrench and
6mm allen wrench.
A:Nut M8 1pcs
B:Bolt M8×40 1pcs
C:Front shock
1. Uplift the frame to align the shock (3)
mounting hole to the shackle joint hole.
2. Fix the bolt (2) through the shock
mounting hole and shack joint and tighten
the nut (1) securely with 10mm and 13mm
open end wrench.
