Funbikes QD03K Owner's Manual page 8

ASSEMLY REAR WHEEL 6"
ASSEMBLY REAR SHOCKER
ASSEMLY FRONT WHEEL

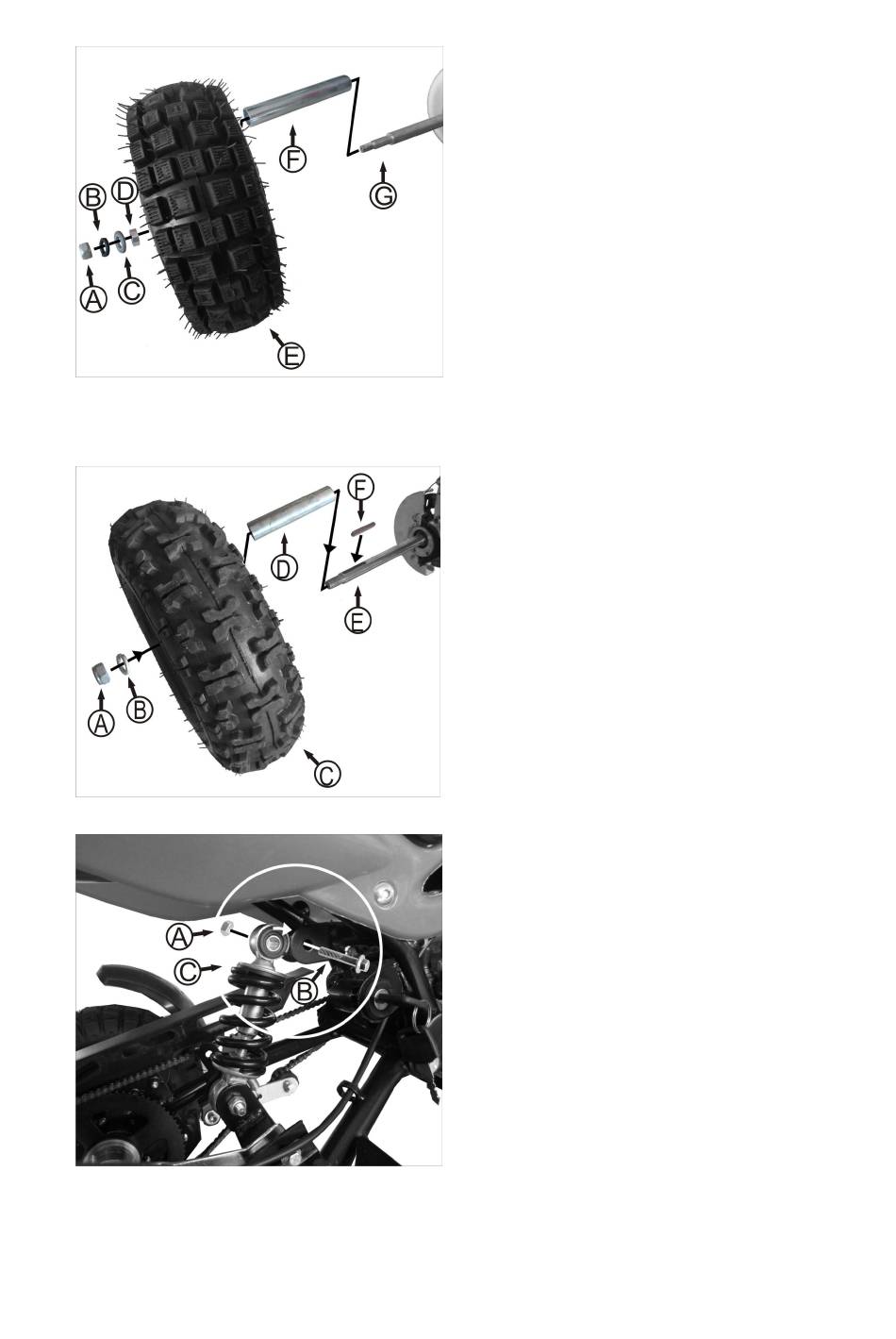

A: Nut M10 2PCS
B: Spring Washer Φ10 2PCS
C: Washer Φ10 2PCS
D: Bush Φ22×1.8×139 1pcs (Left)
Φ22×1.8×139 1pcs(Right)
E:Rear wheel 2PCS
F:Sleeve Φ22×1.8×10 2PCS
G:Rear axle
1.Install the sleeve(F) to the rear axle (G).
2.Fix the rear wheel (E) through the axle (G).
3.Mount the bush(D),flat washer(C),spring
washer (B) and nut(A) in sequence, then
tighten the nut securely with 17mm open end
wrench.
A: Nut M14 2pcs
B: Washer Φ14 2pcs
C: Rear wheel
D: Sleeve Φ22×1.8×112 2pcs
E: Rear axle
F: Pin 2pcs
1. Install the sleeve(D) to the rear axle (E).
2. Put the pin(F) into the groove on the axle.
3. Fix the wheel(C) through the axle.
4. Mount the spring washer (B) and then
tighten the nut(A) securely with 22mm open
end wrench.
A: Nut M8 1pcs
B: Bolt M8×40 1pcs
C: Rear shock
1. Uplift the frame to align the shock (C)
mounting hole to the shackle joint hole.
2. Fix the bolt (B) through the shock
mounting hole and shack joint and
tighten the nut (A) securely with 10mm
-13mm open end wrenc
h
