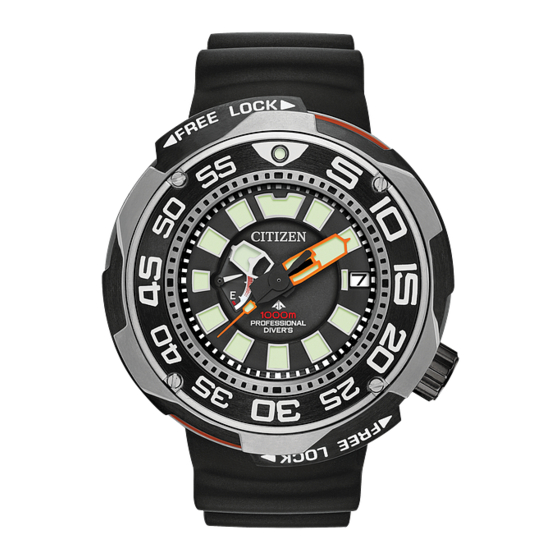

Citizen Promaster 1000M Professional Diver Abbreviated Instruction

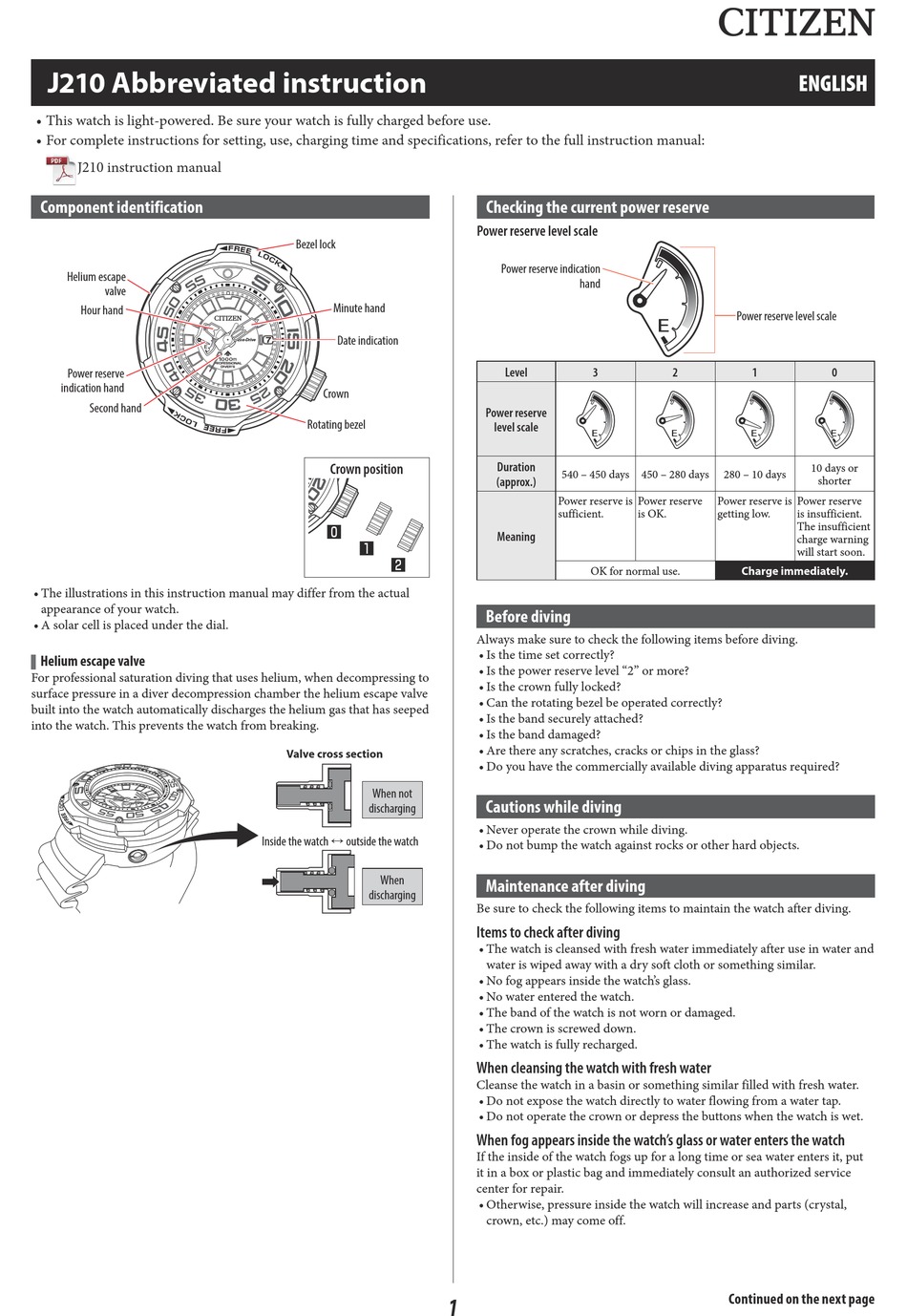

J210 Abbreviated instruction
• This watch is light-powered. Be sure your watch is fully charged before use.
• For complete instructions for setting, use, charging time and specifications, refer to the full instruction manual:
J210 instruction manual
Component identification
Helium escape
valve
Hour hand
Power reserve
indication hand
Second hand
• The illustrations in this instruction manual may differ from the actual
appearance of your watch.
• A solar cell is placed under the dial.
Helium escape valve
For professional saturation diving that uses helium, when decompressing to
surface pressure in a diver decompression chamber the helium escape valve
built into the watch automatically discharges the helium gas that has seeped
into the watch. This prevents the watch from breaking.
Bezel lock
Minute hand
Date indication
Crown
Rotating bezel
Crown position
0
1
2
Valve cross section
When not
discharging
Inside the watch ↔ outside the watch
When
discharging
Checking the current power reserve
Power reserve level scale
Power reserve indication
hand
Level 3
Power reserve
level scale
Duration
540 – 450 days 450 – 280 days
(approx.)
Power reserve is
sufficient.
Meaning
OK for normal use.
Before diving
Always make sure to check the following items before diving.
• Is the time set correctly?
• Is the power reserve level "2" or more?
• Is the crown fully locked?
• Can the rotating bezel be operated correctly?
• Is the band securely attached?
• Is the band damaged?
• Are there any scratches, cracks or chips in the glass?
• Do you have the commercially available diving apparatus required?
Cautions while diving
• Never operate the crown while diving.
• Do not bump the watch against rocks or other hard objects.
Maintenance after diving
Be sure to check the following items to maintain the watch after diving.
Items to check after diving
• The watch is cleansed with fresh water immediately after use in water and
water is wiped away with a dry soft cloth or something similar.
• No fog appears inside the watch's glass.
• No water entered the watch.
• The band of the watch is not worn or damaged.
• The crown is screwed down.
• The watch is fully recharged.
When cleansing the watch with fresh water
Cleanse the watch in a basin or something similar filled with fresh water.
• Do not expose the watch directly to water flowing from a water tap.
• Do not operate the crown or depress the buttons when the watch is wet.
When fog appears inside the watch's glass or water enters the watch
If the inside of the watch fogs up for a long time or sea water enters it, put
it in a box or plastic bag and immediately consult an authorized service
center for repair.
• Otherwise, pressure inside the watch will increase and parts (crystal,
crown, etc.) may come off.
1
ENGLISH
Power reserve level scale
2 1
280 – 10 days
Power reserve Power reserve is Power reserve
is OK. getting low. is insufficient.
The insufficient
charge warning
will start soon.
Charge immediately.
Continued on the next page
0
10 days or
shorter
