Request to Customers
All repairs performed on this watch, excluding repairs involving the
band, are to be performed at the CITIZEN. When desiring to have your
watch repaired or inspected, place contact the Citizen Service Center
either directly or through the store where you purchased your watch.
3

Advertisement

loading
Need help?

Need help?

Do you have a question about the BJ8050-08E and is the answer not in the manual?

Questions and answers

Summary of Contents for Citizen BJ8050-08E

  • Page 1 Request to Customers All repairs performed on this watch, excluding repairs involving the band, are to be performed at the CITIZEN. When desiring to have your watch repaired or inspected, place contact the Citizen Service Center either directly or through the store where you purchased your watch.
  • Page 2 Contents 1. Features of the Citizen Promaster 300 m Professional Diver 1. Features of the Citizen Promaster 300 m Professional Diver ....5 This watch is a diver’s watch designed to withstand depths down to 300 m (water 2. Names of Components ................6 pressure equivalent to 30 atm).

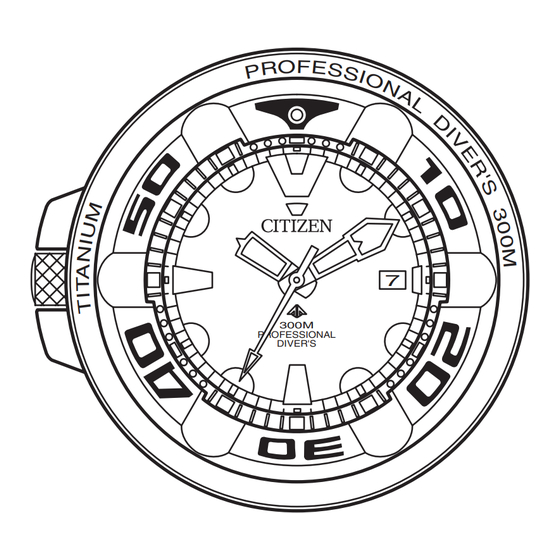

  • Page 3 2. Names of Components 3. Before Using This watch is powered not by an ordinary battery, but by converting photo energy to electrical energy. Rotating bezel Before using, expose to light and make sure the watch is sufficiently charged. See "8. Time Required for Charging" for reference charging times. A secondary battery is used in this watch to store electrical energy.
  • Page 4 4. Setting the Time and Date W W Setting the time 1. Stop the second hand at the 0 second position by pulling the crown out to the 2nd click. Note: 2. Turn the crown to set the time. A screw down locking crown is employed to enhance the water resistance of the watch. 3.
  • Page 5 5. Functions of Solar Powered Watches If the charge becomes insufficient, a warning function will operate and the display If insufficient charge continues changes as shown below. Normal time Insufficient charge Time setting display warning display warning display If insufficiently charged Stop 300M...
  • Page 6 W W Insufficient Charge Warning Function W W Time Setting Warning Function The second hand changes to a two second If the watch stops, subsequent exposure to light interval movement to indicate insufficient allows the Quick Start Function to start again, and recharging.
  • Page 7 6. Care and Handling During Charging 7. Replacing the Secondary Battery Unlike ordinary batteries, the secondary battery used in this watch does not have W W Notes on use to be periodically replaced due to repeated charging and discharging. Take care to charge your watch during use. Please note that if you wear long sleeves, the watch can easily become insufficiently CAUTION charged because it is hidden and not exposed to light.
  • Page 8 8. Time Required for Charging * The recharging time is the time when the watch is continuously exposed to light. Full charge time ..The time to fully recharge after the watch has stopped. Time required for recharging may vary according to the design (color of the dial, etc.) One day usage .....
  • Page 9 9. Do not Using this Watch while Diving 10. When Using for Diving when... Precautions when Using during Diving: * When using a diver's watch, please make sure that you have received the proper PROHIBITED education and training for various types of diving, and observe all rules. Do not use your watch while diving when the following occur.
  • Page 10 * Please check that the second hand is moving properly. 11. Using the Rotating Bezel If the second hand is moving at two-second intervals, this means that the watch is not sufficiently charged. Sufficiently charge the watch when this occurs. The rotating bezel can be used as a reference for elapsed time during diving or for the amount of time remaining relative to a predetermined amount of time.
  • Page 11 Determination of Remaining Time 12. Adjusting length with the Extension Band * The remaining time can be determined by (Model No.BJ8040-01E, BJ8050-08E only) aligning the mark on the rotating bezel ▼ with the target time. * When wearing the watch over a wetsuit and so forth, and the length of the standard band is not long enough, attach the extension band provided to adjust the length of the band.
  • Page 12 13. Precautions For correct use within the design limits of the watch, confirm the level of water- CAUTION: Water-resistance performance resistance of your watch, as indicated on the dial and case, and consult the table. There are several types of water-resistant watches, as shown in the following table. The unit "bar"...
  • Page 13 • Use a soft cloth to wipe off dirt, perspiration and water from the case andcrystal. or Citizen Service Center for repair. Leaving the watch in such a state will allow • Use a soft, dry cloth to wipe off perspiration and dirt from the leather band.
  • Page 14 CAUTION: • Do NOT place the watch close to household appliances that generate static Operating environment electricity. • Use the watch within the operating-temperature range specified in the Timekeeping may become inaccurate if the watch is exposed to strong static instruction manual.
  • Page 15 14. Specifications 1. Caliber No.: B873 2. Type: Analog Quartz Watch with 3 Hands 3. Accuracy: Within ±15sec/month (within a normal temperature range of 5˚C/41˚F to 35˚C/95˚F) 4. Quartz oscillator frequency: 32,768Hz 5. IC: C/MOS-LSI (1 pc.) 6. Operational temperature range: -10˚C/14˚F to +60˚C/140˚F 7.
