DOREL ASIA

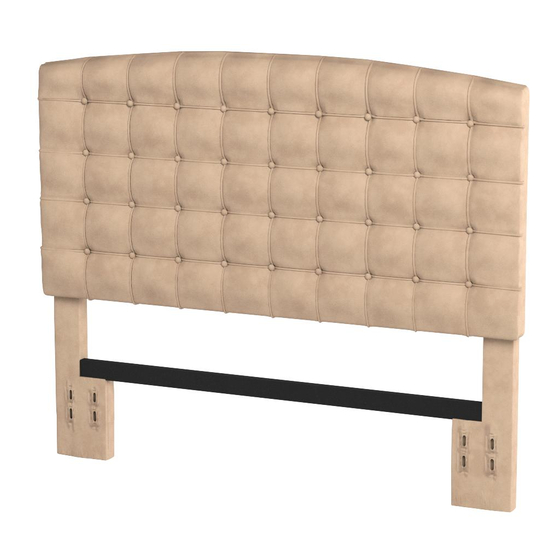

KING HEADBOARD
CONTAINS
INFORMATION. PLEASE READ AND
KEEP FOR FUTURE REFERENCE.
DO NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, contact our customer service
department. We will replace the part FREE of charge.
DA4015HK-BG (Beige)
DA4015HK-BR (Brown)
0-65857-16379-7
0-65857-16380-3
THIS INSTRUCTION BOOKLET
IMPORTANT
(TAKEN FROM CARTON)
Date of purchase:
_______ / _______ / _______
Tel #: 1-800-295-1980
NEED HELP!
E-Mail: das@dorel.com
CALL US FOR ASSISTANC
Fax #: 514-353-7819
1-800-295-1980
DO NOT RETURN PRODUC
E-MAIL:DAS@DOREL.COM
Model No:
UPC CODE:
NOTE:
SAFETY
Lot number:
________________
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Dorel Asia DA4015HK-BG
Summary of Contents for Dorel Asia DA4015HK-BG
- Page 1 DOREL ASIA Model No: KING HEADBOARD DA4015HK-BG (Beige) DA4015HK-BR (Brown) UPC CODE: 0-65857-16379-7 0-65857-16380-3 NOTE: THIS INSTRUCTION BOOKLET IMPORTANT CONTAINS SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. Lot number: (TAKEN FROM CARTON) ________________ Date of purchase: _______ / _______ / _______ DO NOT RETURN PRODUCT TO THE STORE.
-
Page 2: Care And Cleaning
Check bolts/screws periodically and tighten them if necessary. LIMITED WARRANTY Dorel Asia warrants its product to be free from defects in material and workmanship and agrees to remedy any such defect. This warranty covers 1 year from the date of original purchase. -
Page 3: Hardware List
KING HEADBOARD DA4015HK-BG / DA4015HK-BR HARDWARE LIST Ø5/16" X 50mm Ø22 X 1.8mm Ø12.5 X 1.2mm HEX SOCKET HEAD BOLT FLAT WASHER SPRING WASHER 8 PCS 12 PCS 12 PCS Ø1/4" X 90mm Ø16 X 1.8mm Ø10.5 X 1.2mm HEX SOCKET HEAD BOLT... -
Page 4: Parts List
KING HEADBOARD DA4015HK-BG / DA4015HK-BR PARTS LIST HEADBOARD BODY LEFT LEG 1 PC 1 PC RIGHT LEG STRETCHER 1 PC 1 PC NOTE: LEGS (B & C) AND STRETCHER (D) ARE PACKED INSIDE THE HEADBOARD BODY (A). PULL BACK THE FABRIC... - Page 5 KING HEADBOARD DA4015HK-BG / DA4015HK-BR STEP 1: Place all parts on a clean, smooth surface. Attach the stretcher (D) to the left leg (B) and right leg (C) with flat washers (5), spring washers (6) and hex socket head bolts (4). Use Allen Key (9) to tighten the bolts.
- Page 6 KING HEADBOARD DA4015HK-BG / DA4015HK-BR STEP 2: Pull back the fabric lining on the back of the headboard body (A). Attach the assembled legs to the headboard body (A) using flat washers (2), spring washers (3) and hex socket head bolts (1). Use Allen Key (10) to tighten the bolts.
- Page 7 KING HEADBOARD DA4015HK-BG / DA4015HK-BR NOTE: THE BED FRAME IS NOT INCLUDED AND MUST BE PURCHASED SEPARATELY. THE FOLLOWING ILLUSTRATIONS ARE FOR REFERENCE ONLY. Attach the bed frame (purchased separately) to bed posts using bolts (7), spring washers (3), flat washers (2) and nuts (8). Use Allen Key (10) to tighten bolts and use the open end...
- Page 8 KING HEADBOARD DA4015HK-BG / DA4015HK-BR CAUTION: This unit is intended for use only with the products and/or maximum weights indicated. Use with other products and/or products heavier than the maximum weights indicated may result in instability or cause possible injury.
- Page 9 MODEL #: DA4015HK-BG / DA4015HK-BR Customer Service PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE PLEASE CONTACT CUSTOMER SERVICE REPRESENTATIVES AT THE FOLLOWING NUMBERS SHOULD THERE BE ANY MISSING OR DEFECTIVE PART(S). Customer Service Phone Number 1-800-295-1980 Email: das@dorel.com...
