Viakom CV-S200THC20H Quick Start Manual

Specification
Model CV-S200THC20H
Image Sensor 1/2.7" Aptina 2.1MP CMOS Sensor
Resolution 1080P
Signal System PAL / NTSC
Minimum Illumination 0.01 Lux/F1.2
S/N Ratio More than 50dB
Synchronous System Internal
IR Distance 20 Meters (with 14µ x 18PCS Infrared LED)
IR Power On Photodiode AUTO Control
CVBS / CVI / TVI / AHD
Video Output
Power/Current DC12V(+/-10%)/500mA
Lens Board Len 3.6mm
Weather Proof
Dimension (mm)
Φ94 x 69(H)
Weight (g) 400
Operating Conditions -10~+50
Accessories list
Name
Camera
User Guide
Switch the output signal by OSD button
Press "left" key after 5 seconds then release : CVBS
Press "right" key after 5 seconds then release : TVI
Press "up" key after 5 seconds then release : AHD
Press "down" key after 5 seconds then release : CVI
/
RH95% MAX
Notes:
Number
Do not attempt to disassemble the camera. If the camera
1
can not work, please contact local franchiser or our company.
1

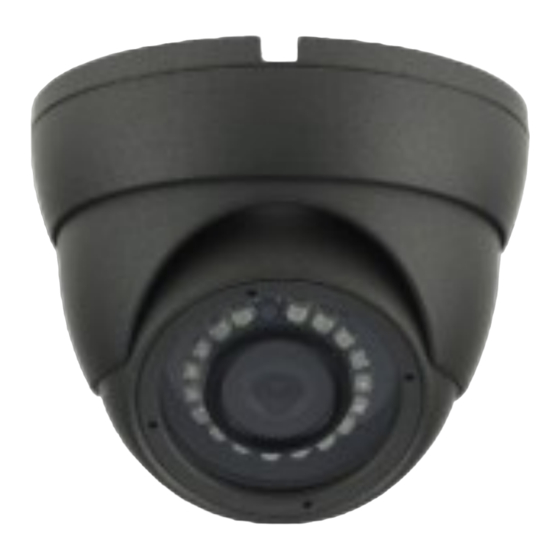

CV-S200THC20H Camera
Vandalproof IR Dome Camera
Thank you for using our product.
Before providing power for the camera, please read
this manual carefully before use.
We adopt the latest technical of sensor and driver.
It owns the characters of high definition and stability,
strong anti-jamming, rich and real color. Fixing and
using this model are convenient too. It is very good
for you to apply to your CCTV system.
