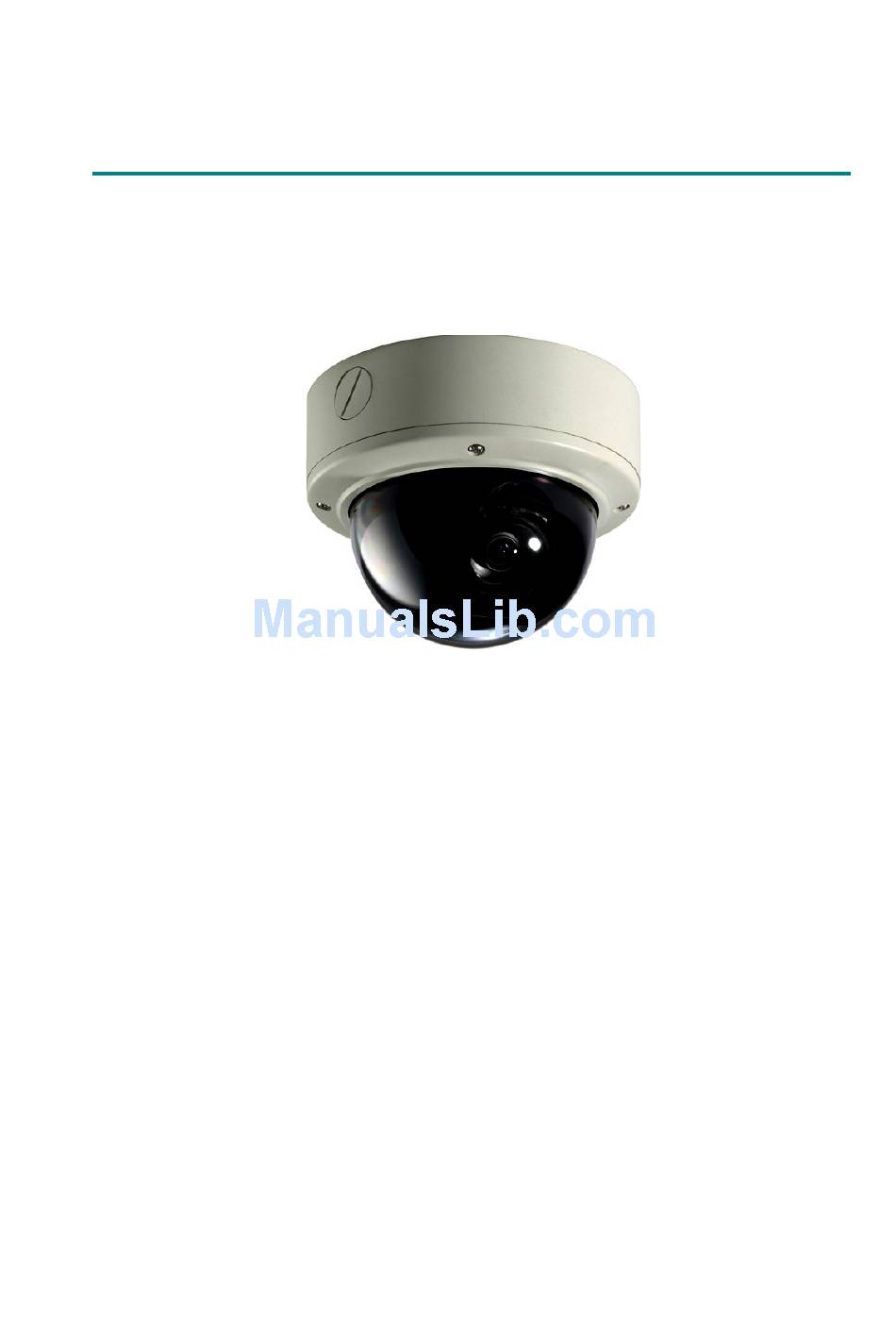

  • Page 1 VDA110HQX – VFA49LIR...
  • Page 2 By selecting this product, you have decided to use a professional device that guarantees highest quality and reliability. We would like to thank you very much for your confidence and kindly ask you to read the following instructions carefully before Installation and operation in order to take full advantage of all quality features regarding this product.

  • Page 3: Installation

    1. Precautions 2. Package 3. Features 1. Advantageous ways of installation 2. Protections from all kinds of conceivable dangers 3. State of the art image enhance technologies 4. Other features 4. Name and function of each part 5. How to operate key functions 1.
  • Page 4 Please read the manual carefully before the installation in order to make use the camera be set up correctly and to have the best picture quality. Please keep the manual in good condition for your future reference and service application. Installation and services should only be carried out by an authorized personnel according to local safety regulations.
  • Page 5 1. Color Camera VDA110 ------------------- 1EA 2. Instruction manual ----------------------------------1EA 3. Fuse -------------------------------------------------------------1EA 4. Sponge plate ------------------------------------------------1EA 5. Wrench Driver--------------------------------1EA 6. Mounting screws ---------------------------------1EA 7. Extra Video output cable----------------------------------1EA 8. Ceiling mount Adaptor plate -----------------------------------------1EA ! ! ! ! "# "# "# "#...
  • Page 6 C. Save cost and time for the maintenance of dome ( " " % ( " When the dome clear part in front of the lens has a scratch or contamination, the whole part of the dome cover set had to be disassembled for a renewal of the clear part in conventional dome cameras.VDA110’s dome cover is rotated by hand to eliminate the complicated procedures.
  • Page 7 ! ! ! ! ) ) ) ) " " " " " " " " A. Vandal-proof The body is made of 4.0mm thick die-cast and the dome made of 2.2mm thick polycarbonate to be protective from a high impact of vandalism on the dome. B.

  • Page 8: State-Of-The-Art Image Enhance Technologies

    3) State-of-the-art image enhance technologies A. True Day & Night image conversion for 24 hours clear view The image is converted to B/W mode from Color and the IR responsive filter is automatically moves in at 5 lux darkness. $ ( / This dual filter mechanism is uniquely designed to have a blue filter in daytime for a precise color reproduction and to have an IR focus corrective filter at nighttime so that there is no focus shift when the IR lights are activated.
  • Page 9 F. Greatly improved Day & Night response Does the picture converts itself between color and b/w at the right time exactly and is the IR illumination on and off at the same time as well? A new technology of Day and Night control is added to this device. An accurate control of image conversion and a precise operation of day &...
  • Page 10 A. 4-9mm (2.5 x Zoom) IR Extra-low dispersion glass vary-focal Lens The unit incorporates 4mm-9mm optical zoom lens that utilizes extra low dispersion glasses for Day& Night use. 3 .# 1 4 B. Dual switching power (w/Auto Line-lock) The unit builds in highly efficient switching power control that self configures 12VDC or 24VAC input and 24VAC line pulse automatically (Automatic line-lock).
  • Page 11 Power input To provide power to the camera V_PHASE CONTROL VR To adjust the V_PHASE level from 0° to 360° when 24VAC Line lock is required. HEATER OPTION To connect the heater unit. Heater is option. 1 1 1 1 - $ % % % % 1) Auto IRIS (DC iris lens) control This is an automatic function that optimizes the amount of light reaching to a CCD by driving...
  • Page 12 This is aimed for the installer to check camera angle and function adjustments on the spot via service monitor. Extra BNC cable is included in the package. 4) DIP/SW functions Function S/W=>ON S/W=>OFF BLC ON BLC OFF Normal GAMMA 0.45 ATW/PUSH PUSH F/L ON...
  • Page 13 F.L (Flickerless) F.L on is used when the picture is shaking under the fluorescent light affected by difference between the display system(60Hz) and AC power signal(50Hz) only. 2 2 2 2 Installation and services should only be carried out by an authorized personnel according to local safety regulations.

  • Page 14: How To Reposition The Cable From The Back To The Side Of Base

    <DRW 2-1> <DRW 2-2> <DRW 2-3> Locate the camera set with the hinges right onto the frame grabbers and gently push down the camera-set onto the base as in the DRW 2-1. Push the camera-set down onto the base with enough strength until it sounds ‘click’ as in the DRW 2-2.
  • Page 15 Put the cable into the base through the side conduit hole as in DRW 3-6. <DRW 3-7> <DRW 3-8> Fix the cable and the safety wire (Hanger) with cable tie and screw as in DRW 3-7. Plug in the power connector to the camera board as in DRW 3-8. 4) How to adjust the Zoom/Focus.

  • Page 16: How To Connect The Power

    a. Pan 180° Angle adjustment either to the left direction or right direction within 180° is possible. 1. Hold the Pan locking ring with hand and loosen it by turning it counterclockwise as in the picture left. 2. Adjust the panning angle and lock the Pan locking ring by turning it clockwise as in the picture.

  • Page 17: Installation Overview

    Connect the copper wire of the power cable to the screw terminal provided at the end of the camera cable. Required power supply For 24VAC: 24VAC/500mA For 12VDC: 12VDC/1000mA regulated. 7) Installation overview & - 4 4 - & & / / / &...

  • Page 18: Troubleshooting

    " Before sending the camera out for repair, check the items below. If the problem persists after checking these items, contact your service center. Problems Trouble shooting Nothing appears on the Please check the power connection. screen. Please check the video signal line connection. The video image is not Please check if the lens or the outer glass is clean.
  • Page 19 4 4 4 4 5) Specification Description Category MODEL VDA110HQ-VFA49LIR VDA110HQX-VFA49LIR Image sensor 1/3" Sony Super HAD CCD 1/3" Sony Ex-view HAD CCD Image Effective Pixels 768(H) x 494(V) - NTSC, 752(H) x 582(V)-PAL H.Resolution...
  • Page 20 Specifications are subject to change without prior notice for improvement.
