V551 Installation Guide
55" LCD Display
Contents:

Product Description:

Type:
Resolution:
Aspect Ratio:
FCC:
Power Consumption:
BTU's:
NOTES:
This document is intended to be used as a reference guide to supply useful information for a design or installation. It is not
intended to be a step-by step procedure for installation.
Any ceilings or walls must be strong enough to support the monitor and the installation must be in accordance with any local
building codes. All mounts should make secure contact to wood studs.
4:3 sources can be displayed on the 16:9 screen in either normal aspect ratio with bars on the left or right, or stretched horizontally
to fill the screen using the menus (see "Aspect Modes" in menus and user manual).
Distances are in inches, for millimeters multiply by 25.4.
Distances may vary ±5%.

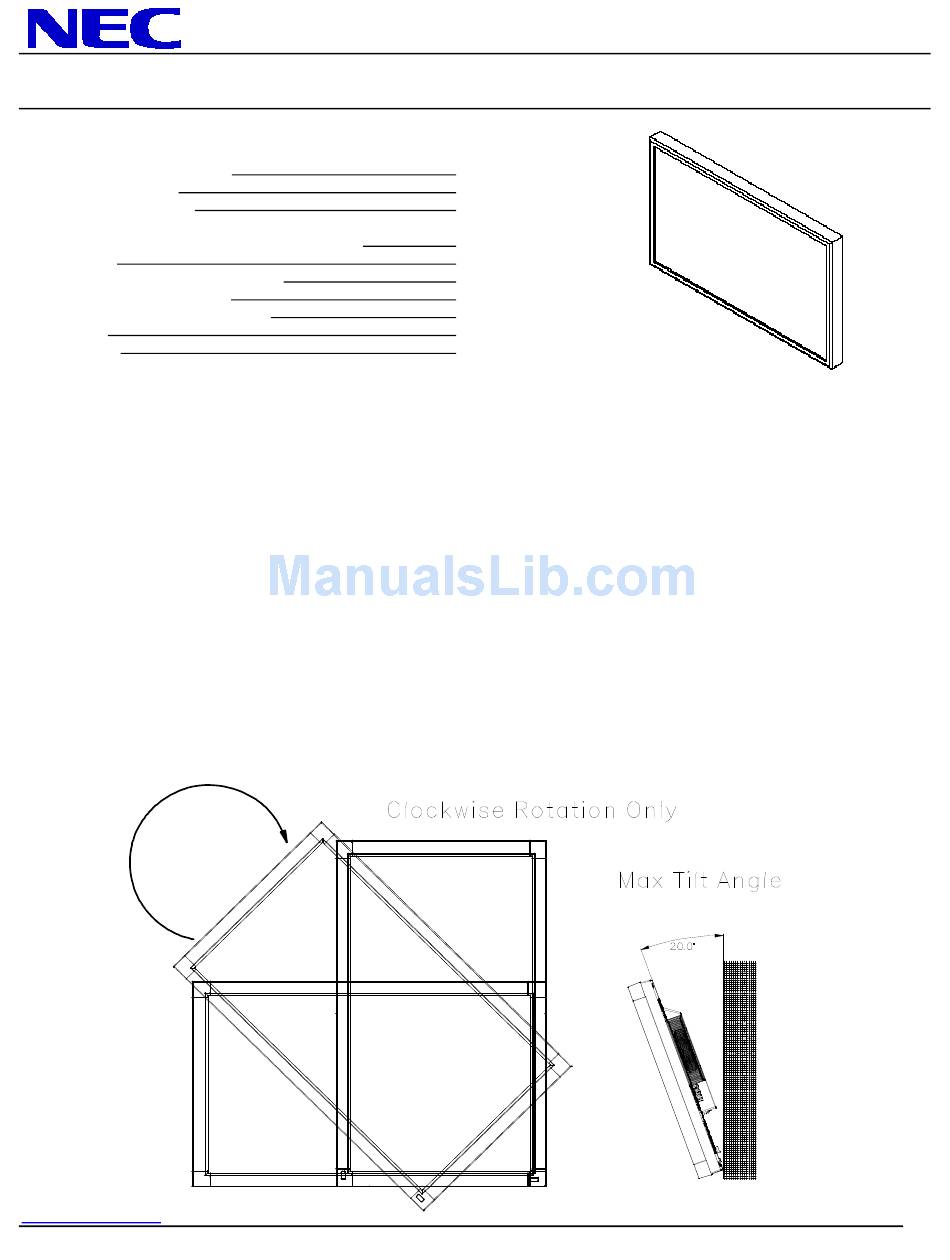

Tilt Angle and Rotation:

Below is the maximum angle the monitor can be tilted. Note that the monitor can only be tilted in either landscape or portrait
orientation.
www.necdisplay.com
LCD Display
1920 x 1080
16:9
Class B
260 W (typ)
887.16 BTU/hour
NEC Display Solutions of America, Inc.
Page 1
Page 1
Page 2
Page 3
Page 4
Page 5
Page 6
Page 7
Page 8
Page 8
Dimensions without stand: 51.9" (W) x 30.5" (H) x 4.7" (D)
Dimensions with stand:
Weight without stand:
Weight with stand:
Rev 1.0
51.9"(W) x 32.1"(H) x 15.7"(D)
83.8 lbs / 38.0 kg
88.7 lbs / 40.2kg
V551
Page 1 of 8

Advertisement

Table of Contents

   Also See for NEC V551

   Related Manuals for NEC V551

   Summary of Contents for NEC V551

  • Page 1: Table Of Contents

     Below is the maximum angle the monitor can be tilted. Note that the monitor can only be tilted in either landscape or portrait orientation. www.necdisplay.com NEC Display Solutions of America, Inc. Page 1 Page 1 Page 2 Page 3...
  • Page 2: Ventilation Requirements

    The ventilation space should not be covered or closed off at the front of the opening. If for some reason the opening needs to be covered, other means of ventilation will need to be incorporated into the design. Contact NEC for design review and recommendations.
  • Page 3: Display Dimensions

    NEC Display Solutions of America, Inc. V551 Installation Guide 55” LCD Display Rev 1.0 Display dimensions: www.necdisplay.com V551 Page 3 of 8...
  • Page 4: Rear

    NEC Display Solutions of America, Inc. V551 Installation Guide 55” LCD Display Rev 1.0 Display dimensions (cont.): www.necdisplay.com V551 Page 4 of 8...
  • Page 5: Optional Table Top Stand Dimensions

    NEC Display Solutions of America, Inc. V551 Installation Guide 55” LCD Display Rev 1.0 Table Top Stand Dimensions (ST-5220): www.necdisplay.com V551 Page 5 of 8...
  • Page 6: Optional Speaker Dimensions

    NEC Display Solutions of America, Inc. V551 Installation Guide 55” LCD Display Rev 1.0 Optional Speaker Dimensions including holder (SP-RM1): www.necdisplay.com V551 Page 6 of 8...
  • Page 7: Display With Optional Wall Mount Kit

    NEC Display Solutions of America, Inc. V551 Installation Guide 55” LCD Display Rev 1.0 Dimensions with Optional Wall Mount Kit (WMK-3257): www.necdisplay.com V551 Page 7 of 8...
  • Page 8: Input Panel

    SCREEN MODE: NORMAL FULL WIDE ZOOM AUTO SETUP EXECUTE FILM MODE AUTO NOTE: Contact your NEC rep for codes not listed. NOTE: Use a cross/reverse/null modem cable. Cable Connection Communication Protocol: Interface: RS-232C Communication: Asynchronous Baud Rate: 9600 bps Data Length:...
