ASSEMBLY INSTRUCTIONS:

Item No: TA11200

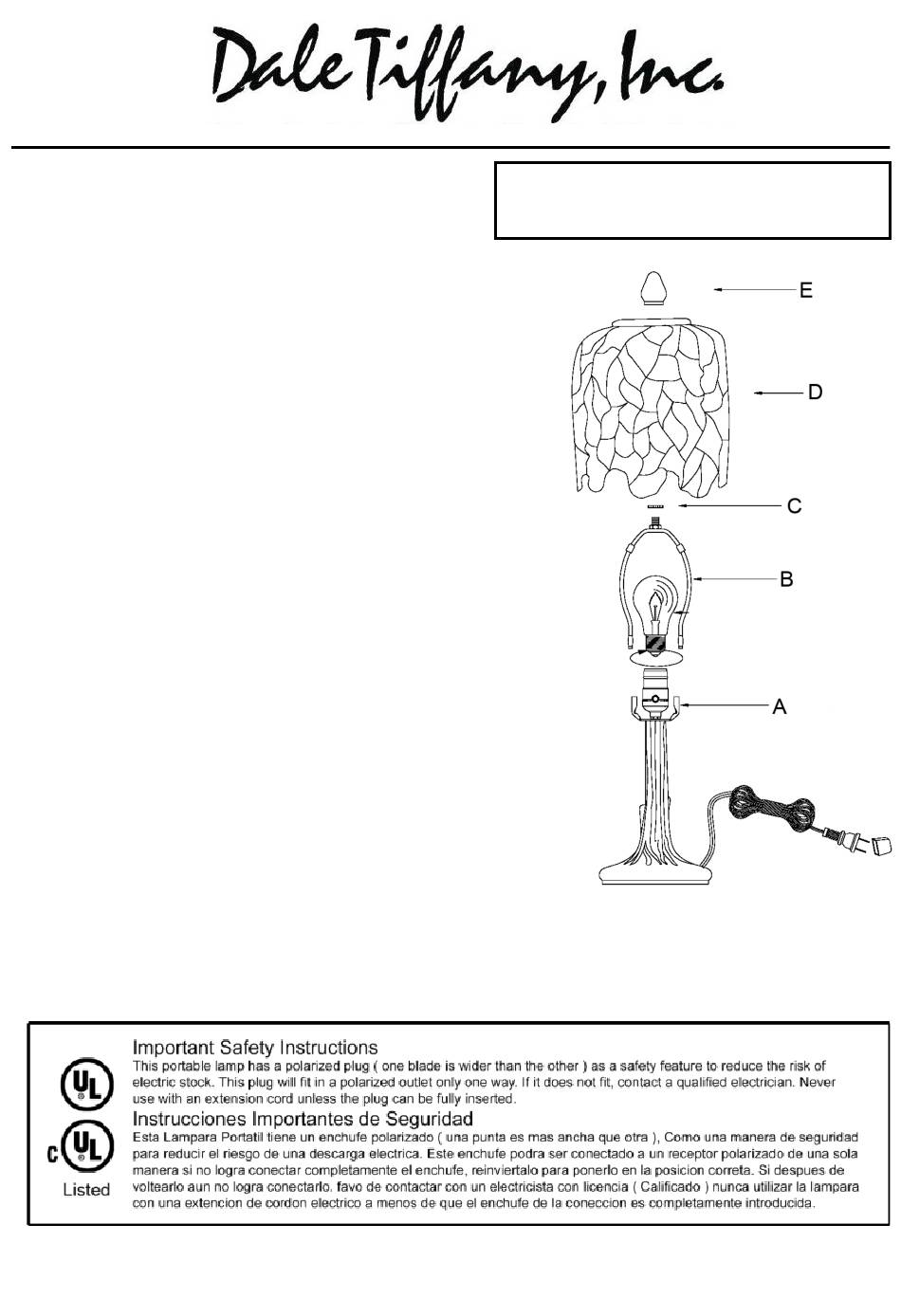

1. Place the base on a level surface.

2. Insert the harp (B) until it sits firmly into the saddle (A).

3. Adjust the knurl nut (C) on harp (B).

This can be used to raise the shade a little if necessary.

4. Place the shade (D) over the end of the harp (B) and

tighten the finial (E) securing the shade in place.

5. Insert the bulb into the bulb socket.

Recommended (1) maximum 40 WATT Type "B" Bulb

Or (1) maximum 13WATT CFL Bulb

(Bulb not included)

Cleaning of your lamp.

Unplug lamp, wipe with a damp cloth.

Do not use abrasives

*SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

Made in China

PLEASE RETAIN ORIGINAL

PACKAGING TO MINIMIZE DAMAGE.

Revision – 03/01/12
