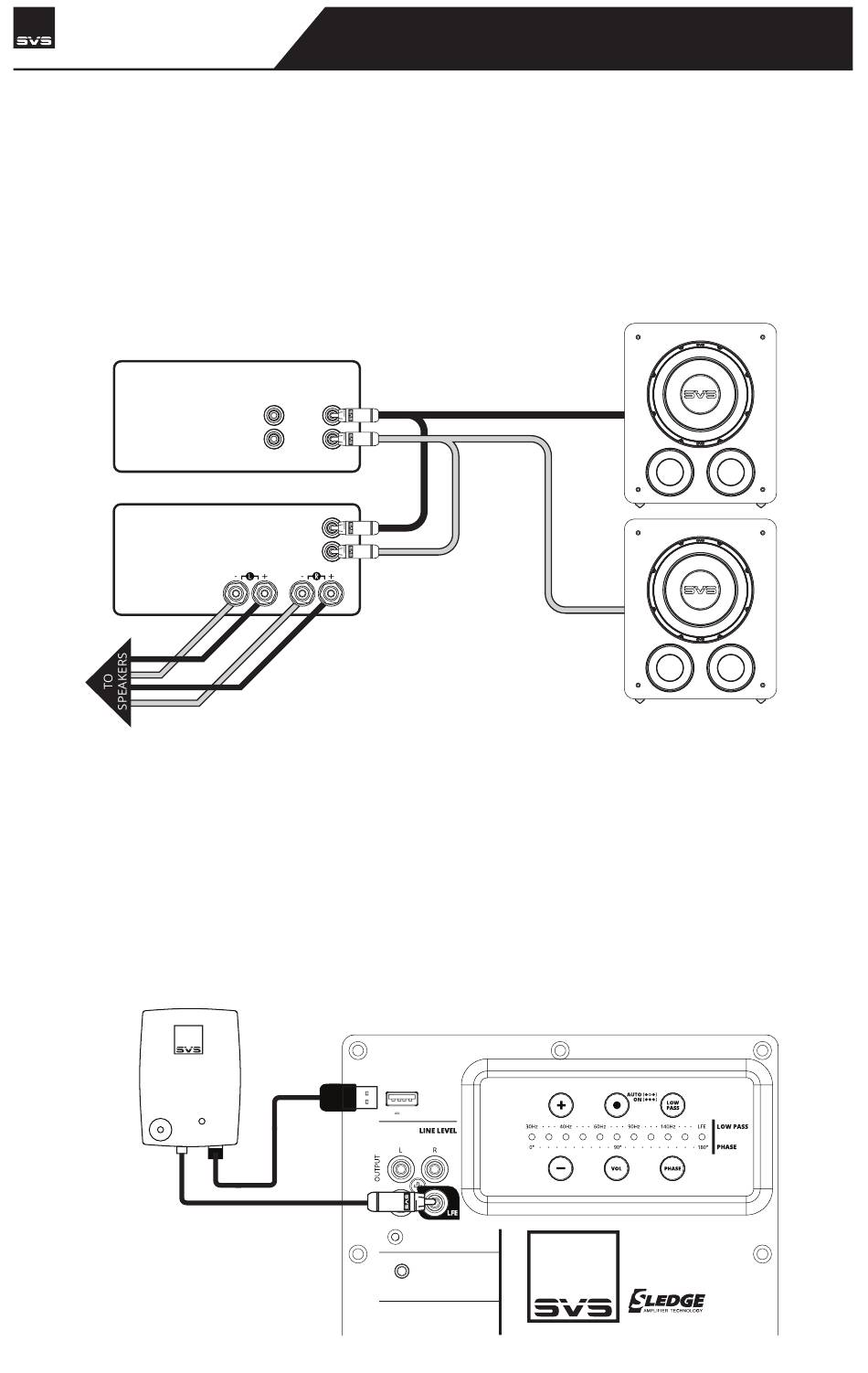

Connecting Multiple Subwoofers or "Going Dual" (cont'd)
In a 2-channel system you can set up Stereo Subwoofers, where one is used for the Left
Channel and one for the Right Channel. Typically, the subwoofers will be symmetrically
placed according to your speakers. And be sure to maintain all the correct Left and
Right output and input connections to ensure optimum performance.
RECEIVER/PREAMP
LINE LEVEL OUTPUTS
POWER AMPLIFIER
LINE LEVEL INPUTS
SPEAKER LEVEL
OUTPUTS
Going Wireless
If you want to add wireless connectivity via the SVS SoundPath Wireless Adapter (sold separately),
your PB-1000 Pro conveniently includes a USB input on the amplifier plate to easily power the
Receiver. Set-up is simple and quick and separate instructions are included with the adapter.
NOTE: The PB-1000 Pro amplifier should be turned off when making all connections.
