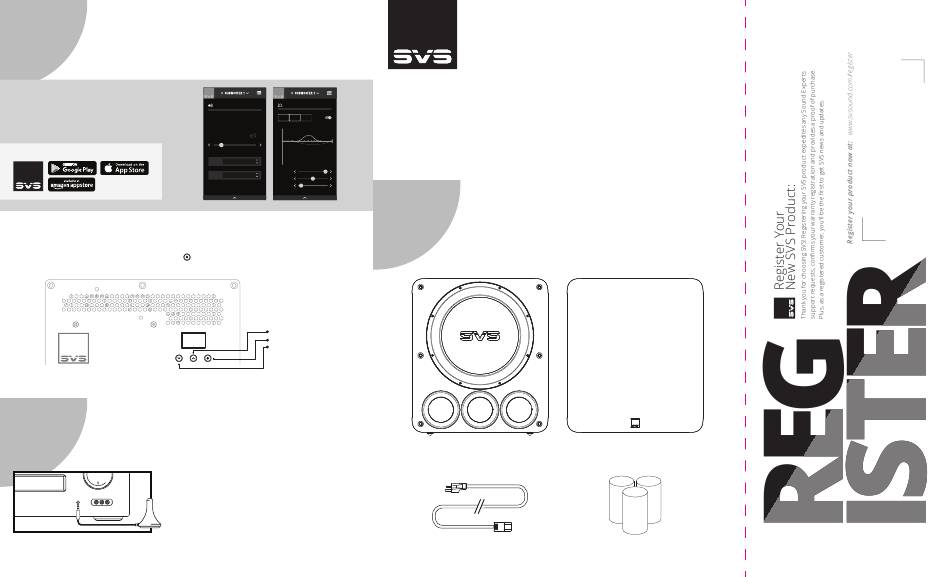

SVS PB17-Ultra R Evolution Quick Start Manual

4
Get Control
Your SVS PB17-Ultra R|Evolution Subwoofer can be controlled from the SVS
Mobile App or via the rear panel for maximum flexibility when optimizing
performance based on your room layout, speakers, system set-up and more.
Download The App
The SVS App is the easiest and most convenient
way to access all of the advanced control features
available on your PB17-Ultra R|Evolution, from the
comfort of your favorite seat.
For iOS, Android, & Amazon Devices
On The Subwoofer
The rear panel features an intuitive user interface with controls for adjusting the subwoofer's
primary settings. The OLED display shows settings for Volume, Low Pass Frequency, Phase and
more. Navigate the main menu by pressing the [ ] button repeatedly until you reach the setting
you wish to adjust. Use the up and down arrows to adjust the setting in real time.
5
SVS SOUNDPATH
WIRELESS AUDIO ADAPTER
IR INPUT
Please note, some DSP settings can only be accessed using the SVS app, including: polarity, parametric EQs, room gain compensation, custom presets, and more.
TRIGGER INPUT
3V-12V | AC/DC
Get Calibrated
LINE LEVEL
INPUT
OUTPUT
BALANCED
Set the PB17-Ultra R|Evolution volume to -10dB on the App or via the rear panel,
INPUT
then run auto-set-up in the AV receiver/processor. It is important to re-run your
receiver's calibration set-up if you are upgrading from another subwoofer and
L
each time you move the subwoofer.
OUTPUT
AUTO EQ - START
If your set-up doesn't include an Auto-EQ feature, adjust
the subwoofer volume control to level-match to your
MIC INPUT
loudspeakers.
For additional guidance on recommended crossover settings, visit our Subwoofer Matching Tool at
USB Output:
www.svsound.com/merlin, or contact our support team.
PARAMETRIC EQ
HOME / VOLUME
-22
PEQ1 PEQ2 PEQ3
ACTIVE ACTIVE DISABLED
0 20 40 50 100 200
6
4
2
0
-2
-4
-6
-8
-10
PRESET MOVIE
-12
FREQ: 200 Hz
OPTIONS LOW PASS FILTER
BOOST: 0 dB
Q FACTOR: 1.2
UP (Adjust setting)
NAVIGATE (Cycle through settings)
DOWN (Adjust setting)
LFE
L R
R
Quick Start Guide
PB17-Ultra R|Evolution
Congratulations on choosing the SVS PB17-Ultra R|Evolution, one of the most powerful and
advanced subwoofers in the world. We know you're anxious to start playing so the following steps
will guide you through the quick and easy installation process.
We strongly recommend reading the PB17-Ultra R|Evolution Owner's Manual to get the
best possible performance out of your new subwoofer. You'll find useful information about
1
subwoofer placement, connections, DSP functions and more. The full SVS PB17-Ultra R|Evolution
Owner's Manual can be found here: www.svsound.com/pb17-ultra-revolution-manual
Unbox It
If you followed the PB17-Ultra R|Evolution Subwoofer unboxing instructions
properly you will have the following items in front of you. Please confirm all
pieces are available before continuing.
[PB17-Ultra R|Evolution Subwoofer]
[Detachable Power Cord]
[Removable Grille]
[Port Plugs]
