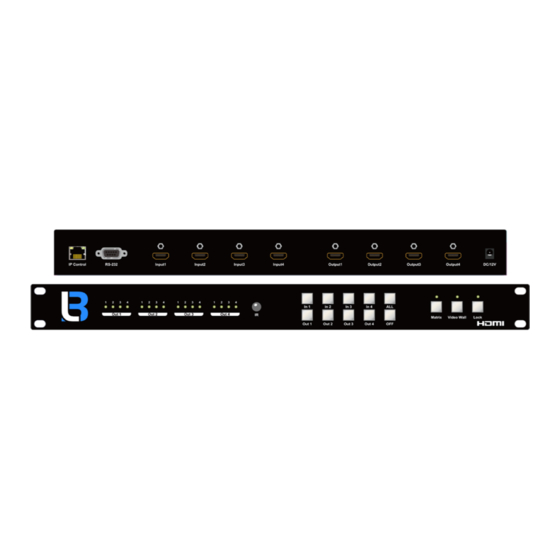

BRIGHTLINK 4X4 SEAMLESS HDMI MATRIX AND 2X2 HD VIDEO WALL
CONTROLLER
MODEL: BL-4X4S-VW22
Operating Instructions
BRIGHTLINKAV.COM
Dear Customer
Thank you for purchasing this product. For optimum performance and safety, please read
these instructions carefully before connecting, operating or adjusting this product. Please
keep this manual for future reference.
The Matrix offers solutions for digital entertainment center, HDTV retail and show site, HDTV,
STB, DVD and projector factory, noise, space and security concerns, data center control,
information distribution, conference room presentation, school and corporate training
environments.
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Brightlink BL-4X4S-VW22
Summary of Contents for Brightlink BL-4X4S-VW22
- Page 1 BRIGHTLINK 4X4 SEAMLESS HDMI MATRIX AND 2X2 HD VIDEO WALL CONTROLLER MODEL: BL-4X4S-VW22 Operating Instructions BRIGHTLINKAV.COM Dear Customer Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference.
- Page 2 Features Any one of the 4 sources to any one of the 4 displays. Seamless switching ensures no switching delay and pictures loss during transitions, the switching speed is less than 40 millisecond. Support 2x2 video wall mode. ...
- Page 3 TABLE OF CONTENTS Specifications Package Contents Panel Descriptions Connecting and Operating Typical Application Control via Remote Control via RS232 IP Control Maintenance Product Service Warranty SPECIFICATIONS Operating Temperature Range 0 to +35°C (32 to +95°F) Operating Humidity Range 5 to 90 % RH (no condensation) Input Video Signal 0.5-1.0 volts p-p Input DDC Signal...
- Page 4 PANEL DESCRIPTIONS ① Power on/off. ② These LED indicates the status of each output selection. ③ IR receive window. ④ Input button IN1~4: choose the desired input port from ports 1~4. ⑤ Output button OUT1~4: choose the desired output port from ports 1~4. ⑥...
- Page 5 CONNECTING AND OPERATING 1. Connect source devices to input ports of the matrix 2. Connect HDMI output port to TV or other HDMI sink devices. 3. Optional: connect RS232 cable from PC RS232 port . 4. Optional: connect an Ethernet cable from the TCP/IP port on the matrix to a local area network.
- Page 6 1. Control via remote ① Power on/off. ② Matrix mode button. ③ Video wall mode button. ④ Output button: Output 1/Output 2/Output 3/ Output 4. ⑤ PTP button: Output 1 display input 1, Output 2 display input 2, Output 3 display input 3, Output 4 display input 4.
- Page 7 2. Control via RS232 1) Switch setting ① Matrix mode: select the input port for output 1~4. ② Video wall mode: all the four output will show the different part of the same input source. ③ ON: Factory defaults setting is all output is on, the button is green. Click “out1, out2, out3, out4”, it will turn off, the button will turn red.
- Page 8 the border line will decrease in vertical direction the border line will increase in vertical direction the border line will decrease in horizontal direction the border line will increase in horizontal direction 3) IP setting ① The default mode is "Automatically obtain IP Address", you need connect the HDMI Matrix to the Ethernet router and get an IP address.
- Page 9 5) RS232 command 6) Web password reset The command length is 4 bytes. rpw+ ‘↙ ’ “rpw” is the key word , ‘↙ ’ is carriage return. When you send the Web password reset command to the matrix, if succeed, it will feedback "rpw", and the web password will be set as "0000000000".
- Page 10 2).Click “Web Browser” button. A web browser will be shown. The default password is "0000000000", input the password and login. The device controller page will be displayed. MAINTENANCE Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner of benzine to clean this unit.
- Page 11 （4）Safety check: After repairs or service, ask the service to perform safety checks to confirm that the unit is in proper working condition. WARRANTY If your product does not work properly because of a defect in materials or workmanship, our Company (referred to as "the warrant or"...
