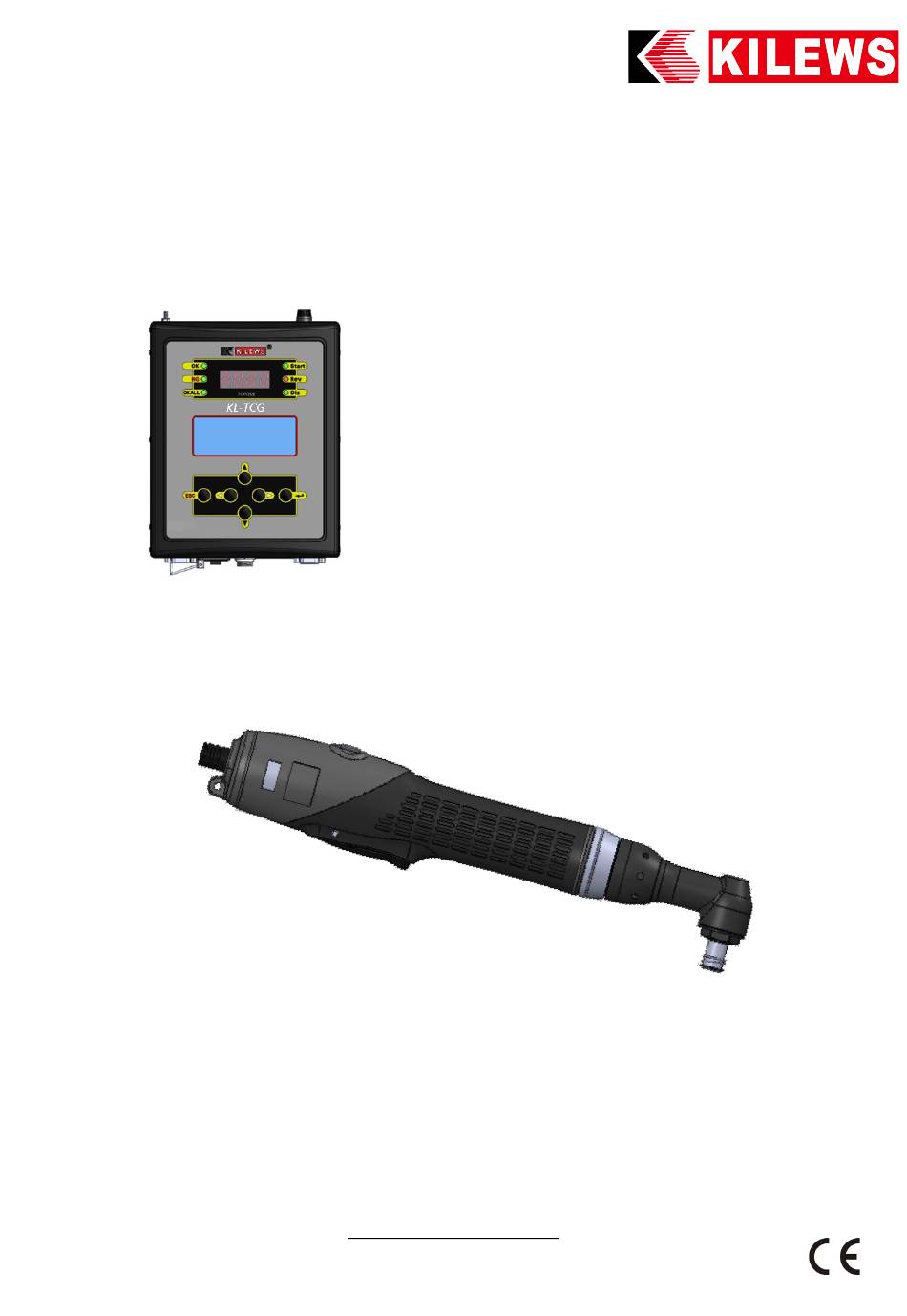

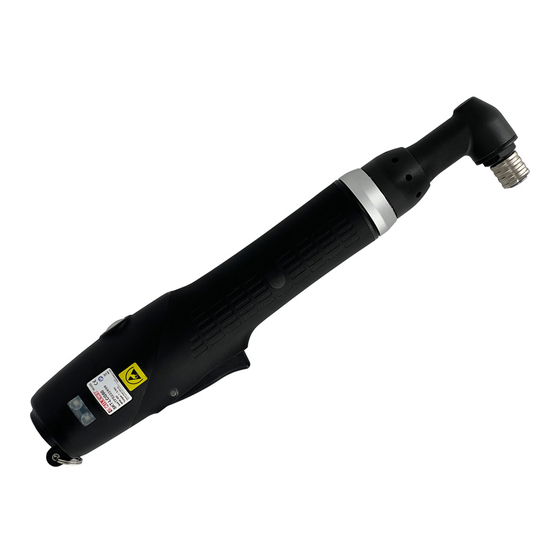

- Page 1 OPERATION AND MAINTENANCE MANUAL SKT-LCG30 SKT-LCG50 SKT-LCG70 Automatic Non-Carbon-Brush Series KILEWS INDUSTRIAL CO., LTD. http://www.kilews.com.tw Y2F230A-E-001...
-
Page 2: Important Safety Information Enclosed
NOTICE Metal Assembly sensor screwdriver are designed for installing threaded fasteners in light industrial and appliance manufacturing applications. KILEWS is not responsible for customer modification of tools for applications on which KILEWS was not consulted. WARNING Important safety information enclosed. -
Page 3: Important Safety Rules
Important Safety Rules WARNING! Read all instructions Failure to follow all instructions listed below may result in electric shock fire and/or serious injury. The term “power tool” in all of the warning listed below refer to your mains operated (corded) power tool or battery operated (cordless) power tool. - Page 4 4) Power tool Use and Care a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use power tool if switch does not turn it on or off.
-
Page 5: Do Not Operate This Tool Without Protective Earth Connected
Grounding Instructions 1、This tool should be grounded while in use to protect the operator from electric shock. NOTICE! To ensure the grounding result, the grounding conductor of the power cord must be well connected with the grounding terminal of power facility. This tool is equipped with grounding conductors. - Page 6 Operations Cautions 1) Do not allow chemicals such as acetone, benzene, thinner, trichloroethylene ketone, or other similar chemicals to come in contact with the sensor screwdriver housing as damage will result. 2) Use the sensor screwdriver carefully, do not drop or be impacted, it is best to use a balancer to lift it, and set it on the auxiliary arm for operation.
-
Page 7: Function / Operating Introduction
Function / Operating Introduction Number Product Name Description Use Hanging Hole Hanging hole is available, to hang the screwdriver Signal Light Display OK light, NG light, screw removal start and stop signal Button Switch Switch rotation direction CW/CCW Lock stationary gearbox and housing Front Lock Ring Headgear Load/unload and fixing the screwdriver bits... -
Page 8: Maintenance And Inspection
Servicing Maintenance and Inspection: 1. The screwdriver must be operated in top condition, one day working hour must be not more than eight hours. cording to operating frequency and torque loaded, we suggest adding lubricating oils in clutch per 3-6 months, and kindly contact with distributor when product's maintenance. -
Page 9: Do Not Attempt To Repair This Electric Screwdriver
2. All repairs and maintenance of this tool and its word must be performed by an authorized service center. 3. KILEWS is not responsible for customer modification of tools for applications on which KILEWS was not consulted. 4. Repairs should be made only by authorized, trained personnel. Consult your nearest KILEWS authorized service center. -
Page 10: Specifications
No. 00 ．．． Bit use in dia 1.3~1.8mm screw No. 0．．． ．Bit use in dia 1.8~2.0mm screw No. 1．．． ．Bit use in dia 2.0~2.6mm screw No. 2．． ．．Bit use in dia 3.0~4.0mm screw 2. SKT-LCG30 with BIT 2 Pcs. SKT-LCG50 with BIT 2 Pcs.
