Kilews SKT-LCG120 Operation And Maintenance Manual

Hide thumbs

Advertisement

Table of Contents

OPERATION AND MAINTENANCE MANUAL
Automatic Non-Carbon-Brush Series
KILEWS INDUSTRIAL CO., LTD.
https://www.kilews.com.tw
SKT-LCG30
SKT-LCG50
SKT-LCG70
SKT-LCG120
SKT-LCG180
SKT-LCG250
Y2F230A-E-004

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SKT-LCG120 and is the answer not in the manual?

Questions and answers

Related Manuals for Kilews SKT-LCG120

Summary of Contents for Kilews SKT-LCG120

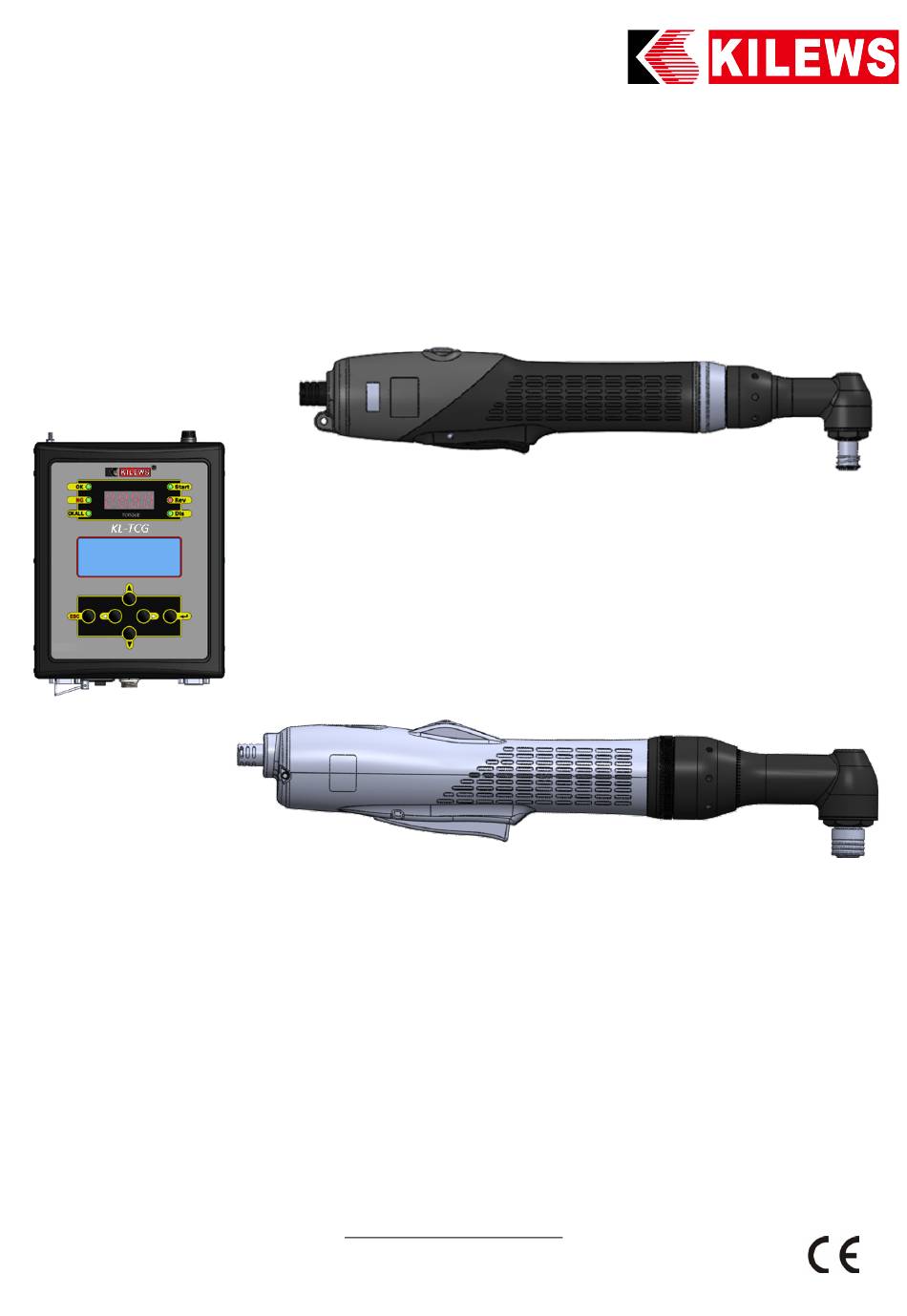

  • Page 1 OPERATION AND MAINTENANCE MANUAL SKT-LCG30 SKT-LCG50 SKT-LCG70 SKT-LCG120 SKT-LCG180 SKT-LCG250 Automatic Non-Carbon-Brush Series KILEWS INDUSTRIAL CO., LTD. https://www.kilews.com.tw Y2F230A-E-004...

  • Page 2: Important Safety Information Enclosed

    NOTICE Metal Assembly sensor screwdriver are designed for installing threaded fasteners in light industrial and appliance manufacturing applications. KILEWS is not responsible for customer modification of tools for applications on which KILEWS was not consulted. WARNING Important safety information enclosed.

  • Page 3: Important Safety Rules

    Important Safety Rules WARNING! Read all instructions Failure to follow all instructions listed below may result in electric shock fire and/or serious injury. The term “power tool” in all of the warning listed below refer to your mains operated (corded) power tool or battery operated (cordless) power tool.
  • Page 4 d) Store idle power tools out of reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. Do not let visitors touch the tool or extension cord. All visitors should be kept away from work area. e) Maintain power tools.

  • Page 5: Do Not Operate This Tool Without Protective Earth Connected

    Grounding Instructions 1、This tool should be grounded while in use to protect the operator from electric shock. NOTICE! To ensure the grounding result, the grounding conductor of the power cord must be well connected with the grounding terminal of power facility. This tool is equipped with grounding conductors.
  • Page 6 Operations Cautions 1) Do not allow chemicals such as acetone, benzene, thinner, trichloroethylene ketone, or other similar chemicals to come in contact with the sensor screwdriver housing as damage will result. 2) Use the sensor screwdriver carefully, do not drop or be impacted, it is best to use a balancer to lift it, and set it on the auxiliary arm for operation.

  • Page 7: Function / Operating Introduction

    Function / Operating Introduction Number Product Name Description Use Hanging Hole Hanging hole is available, to hang the screwdriver Signal Light Display OK light, NG light, screw removal starts and stop signal Button Switch Switch rotation direction CW/CCW Front Lock Ring Lock stationary gearbox and housing Headgear Load/unload and fixing the screwdriver bits...

  • Page 8: Maintenance And Inspection

    Servicing Maintenance and Inspection: 1. The screwdriver must be operated in top condition, one day working hour must be not more than eight hours. cording to operating frequency and torque loaded, we suggest adding lubricating oils in clutch per 3-6 months, and kindly contact with distributor when product's maintenance.

  • Page 9: Do Not Attempt To Repair This Electric Screwdriver

    2. All repairs and maintenance of this tool and its word must be performed by an authorized service center. 3. KILEWS is not responsible for customer modification of tools for applications on which KILEWS was not consulted. 4. Repairs should be made only by authorized, trained personnel. Consult your nearest KILEWS authorized service center.

  • Page 10: Specifications

    Specifications MODEL SKT-LCG30 SKT-LCG50 SKT-LCG70 Input Voltage (DC) DC40V Power Consumption (N.m) 0.6-3 1.4-7 Torque (kgf.cm) 6.11-30.59 10.2-51.00 14.27-71.39 (Lbf.in) 5.31-26.55 8.85-44.25 12.39-61.96 Repeatable Torque Accuracy +/- 3sigma / AVG., 7.5% Unloaded Rotation Speed (r/min) 120-1100 80-800 50-450 Can be set and adjusted Working Time 1s ON / 3s OFF Weight (g)
  • Page 11 W 3/8"sq B9.5 W 3/8"sq B9.5 W 3/8"sq Bit Type * 1N.m=10.2Kgf.cm 1N.m=8.85Lbf.in Accessories SKT-LCG120 with BIT 2 Pcs. SKT-LCG180 with BIT 2 Pcs. SKT-LCG250 with BIT 2 Pcs. SKT-LCG- W Type Not attached Socket Our company reserves the right to modify...
