eufy Security T8213 Quick Start Manual

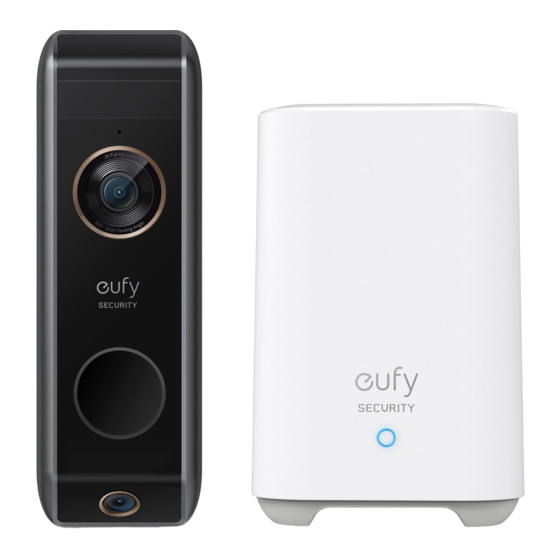

Video doorbell dual, battery
Hide thumbs

Advertisement

Table of Contents

Anker Innovations Limited. All rights reserved. eufy Security and eufy
Security Logo are trademarks of Anker Innovations Limited, registered in the
United States and other countries. All other trademarks are the property of
their respective owners.
51005003004 V01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T8213 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for eufy Security T8213

Summary of Contents for eufy Security T8213

  • Page 1 Anker Innovations Limited. All rights reserved. eufy Security and eufy Security Logo are trademarks of Anker Innovations Limited, registered in the United States and other countries. All other trademarks are the property of their respective owners. 51005003004 V01...
  • Page 2 QUICK START GUIDE eufy Security Video Doorbell Dual (Battery)
  • Page 4 WHAT’S INCLUDED For Video Doorbell Installation Screw Hole Mounting Bracket 15° Mounting eufy Security Video Positioning Card Wedge (Optional) Doorbell Dual (Battery) Model: T8213 Detaching Quick micro-USB Extension Wires Screw Pack Start Guide charging cable and Wire Nuts (Optional) English 1...
  • Page 5 For HomeBase 2 Installation HomeBase 2 Power Adapter for Ethernet Cable for HomeBase 2 HomeBase 2 Model: T8010X Note: Power plug may vary in different regions. 2 English...
  • Page 6 PRODUCT OVERVIEW Video Doorbell Front View: 1. Motion Sensor 2. Microphone 3. Primary Camera Lens 4. Ambient Light Sensor 5. LED Ring / Doorbell Button 6. Secondary Camera Lens 7. Speaker Rear View: 1. Detaching Mechanism 2. Micro USB Charging Port 3.
  • Page 7 Operation How-to Power on the doorbell Press the SYNC button . Add doorbell to HomeBase Press and hold the SYNC button until you hear a beep. Power off the doorbell Quick-press the SYNC button 5 times in 3 seconds. Reset the doorbell Press and hold the SYNC button for 10 seconds.

  • Page 8: How The System Works

    THE SYSTEM WORKS How the System Works The video doorbell system includes 2 parts. One is the video doorbell at your door. The other is the HomeBase in your house. The video doorbell detects motion at your porch and allows you to answer the door anytime and anywhere.
  • Page 9 STEP 1 CONNECTING THE HOMEBASE Connect HomeBase 2 to the Internet 1. Power on the HomeBase 2, then use the ethernet cable provided to connect the HomeBase 2 to your home router. 2. The LED indicator turns blue (this may take up to 1min) when HomeBase 2 is ready for setup.

  • Page 10: Setting Up The System

    SETTING UP THE SYSTEM Download the App and Set up the System Download the eufy Security app from the App Store (iOS devices) or Google Play (Android devices). Sign up for a eufy Security account, then follow the onscreen instructions to complete the setup.

  • Page 11: Option 1 - Battery Powered

    STEP 3 DETERMINING THE POWER OPTION Option 1 - Battery Powered 1. If you don’t have existing doorbell wiring at the front door, use the built-in battery. You are free to determine the doorbell position and the mounting is easy and quick. 2.
  • Page 12 Option 2 - Doorbell Wire Powered 1. If you have existing and working doorbell wiring at the front door, the doorbell will be powered by the wires constantly. So you don’t need to detach and charge it after installation. 2. Since the doorbell is connected to the wires, the mounting position is limited.
  • Page 13 STEP 4 FINDING A MOUNTING SPOT Find a Mounting Spot Take the video doorbell to your front door and check the live view on the app at the same time. Find a location where you can see the desired field of view. Consider the following factors: 1.
  • Page 14 Place the screw hole positioning card against the wall to mark the position. English 11...

  • Page 15: Mounting The Bracket

    STEP 5 MOUNTING THE BRACKET Mount the Doorbell on a Wooden Surface If you’re mounting the doorbell on a wooden surface, you don’t need to pre- drill pilot holes. Use the provided screws to secure the mounting bracket on the wall, the screw hole positioning card indicates the position of the screw holes.
  • Page 16 Mount the Doorbell on Surfaces Made Out of Hard Materials 1. If you’re mounting the doorbell on a surface made out of hard materials, like brick, concrete, stucco, drill 2 holes through the screw hold positioning card with a 15/64”(6mm) drill bit. 2.
  • Page 17 Wall Wall Mounting Mounting Mounting Wedge Bracket Bracket With 15° Mounting Wedge Without 15° Mounting Wedge 14 English...
  • Page 18 STEP 6 MOUNTING THE DOORBELL Mount the Doorbell Align the doorbell on the bottom, and then move it into place on top. Press the doorbell down until it clicks. You’re all set! If you want to detach the doorbell or recharge it, please refer to the following sections.
  • Page 19 APPENDIX 1 DETACHING THE DOORBELL Detach the Doorbell 1. Use the doorbell detaching pin provided if you wish to detach the doorbell from the mounting bracket. 2. Press into the pinhole on top of the doorbell, and then lift the top for removal.
  • Page 20 APPENDIX 2 RECHARGING THE DOORBELL Recharge the Doorbell Charging: Flashing Green LED indicator Fully charged: Green Charging time 6 hours from 0% to 100% English 17...
  • Page 21 APPENDIX 3 POWERING THE DOORBELLWITH EXISTING DOORBELL WIRES 3.1 Verify whether the doorbell wires are working 1. Ring the existing doorbell to check if it is working. If the doorbell doesn’t ring, your doorbell wires may be defective. Power the doorbell on its own battery or consult an electrician to fix the wires.
  • Page 22 3.2 Detach the Existing Doorbell Button If you already have existing doorbell wiring: 1. Remove the existing doorbell button with a Phillips-head screwdriver (not provided). 2. Pull the two wires out carefully when removing the existing doorbell. Straighten the wire ends if necessary. What you need: Philips-Head Screwdriver Phillips-Head Screwdriver (Not provided)
  • Page 23 3.3 Find a Mounting Spot 1. When determining the mounting position of the doorbell, consider these factors: ① Check if you can reuse the existing holes and anchors on the wall or door frame. ② If you are drilling the mounting holes for the first time, the recommended mounting height is 48"...

  • Page 24: Mount The Bracket

    3.4 Mount the Bracket If you’re mounting the doorbell on a wooden surface, you don’t need to pre- drill pilot holes. Use the provided screws to secure the mounting bracket on the wall. The screw hole positioning card indicates the position of the screw holes.
  • Page 25 If you’re mounting the doorbell on a surface made out of hard materials, like brick, concrete, stucco: ① Drill 2 holes through the screw hole positioning card with 15/64”(6mm) drill bit. ② Insert the provided anchors, and then use the provided long screws to secure the mounting bracket on the wall.
  • Page 26 Wall Wall Mounting Mounting Mounting Wedge Bracket Bracket Without 15° Mounting Wedge With 15° Mounting Wedge English 23...
  • Page 27 Connect the wires to the terminals at the back of the doorbell, then tighten the terminal screws. Wire can connect to any terminal. What you need: Wires and Wire Nuts (Optional), Video Doorbell, Philips- head Screwdriver Phillips-Head eufy Security Video Screwdriver Extension Wires and Doorbell Dual (Battery) (Not provided)
  • Page 28 3.6 Mount the Doorbell on the Bracket Align the doorbell on the bottom, and then move it into place on top. Press the doorbell down until it clicks. 3.7 Restore Power Switch the master circuit breaker back to ON. You’re all set! If you want to detach the doorbell or recharge it, please refer to the corresponding sections.

  • Page 29: Fcc Radio Frequency Exposure Statement

    NOTICE FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 30 Notice: Shielded cables All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations. The following importer is the responsible party Company Name: POWER MOBILE LIFE, LLC Address: 10900 NE 8TH ST, STE 501, BELLEVUE, WA 98004 Telephone:1-800-988-7973 IC Statement This device complies with Industry Canada licence-exempt RSS standard(s).

  • Page 31: Customer Service

    Customer Service Warranty 12-month limited warranty Call Us United States +1 (800) 988 7973 Mon-Fri 9AM-5PM (PT) United Kingdom +44 (0) 1604 936 200 Mon-Fri 6AM-11AM (GMT) Germany +49 (0) 69 9579 7960 Mon-Fri 6:00-11:00 Email Us Customer Support: support@eufylife.com Anker Innovations Limited Room 1318-19, Hollywood Plaza, 610 Nathan Road, Mongkok, Kowloon, Hong Kong @EufyOfficial...
