StarTech.com USBBT1EDR2 Quick Start Manual

StarTech.com USBBT1EDR2 Quick Start Manual

Usb bluetooth adapter with edr support class 1 100m

Advertisement

Quick Links

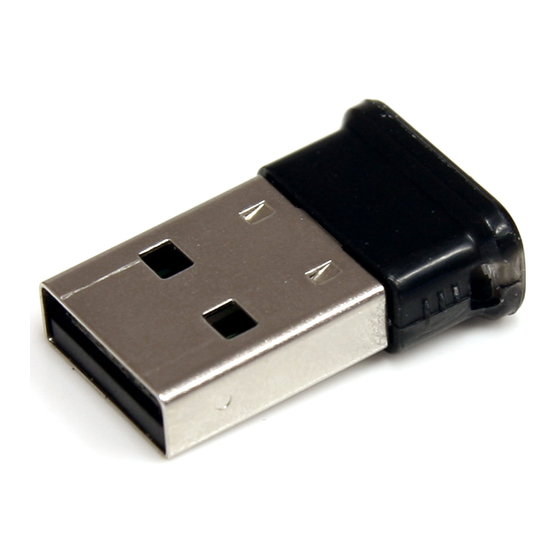

USB Bluetooth Adapter with EDR Support | Class 1 (100m)
Product Diagram (USBBT1EDR2)
Port
• Used to connector the USB Bluetooth Adapter to the
1
USB-A Connector
Host Computer.
Packaging Contents
• USB Bluetooth Adapter x 1
• Quick-Start Guide x 1
Requirements
For the latest manuals, product information, technical specifications, and declarations
of conformance, please visit
www.startech.com/USBBT1EDR2
• Host Computer with an available USB Type-A port
Installation
1. Connect the Bluetooth Adapter to a USB-A Port on the Host Computer. The
Bluetooth Adapter should auto-install using native drivers.
2. If the drivers do not automatically install or the native driver does not work with
your specific Bluetooth device, disconnect the adapter from your computer, then:
a. Navigate to
www.startech.com/USBBT1EDR2
tab.
b. Under Driver(s), download the Driver Package and follow the steps to install the
driver & BlueSoleil software.
c. Use the BlueSoleil software to pair your Bluetooth device.
Regulatory Compliance
FCC- Part 15
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15, subpart
C of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support
1
*Product may vary from image
Function
and click the Drivers & Downloads
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help
This device complies with part 15, subpart C of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation. Changes or modifications not expressly approved by StarTech.com could void the user's
authority to operate the equipment.
FCC-ID: ZG8USB06H
IC-ID: 9781A-USB06K
Industry Canada Statement
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.
CAN ICES-3 (B)/NMB-3(B)
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:
(1) This device may not cause interference, and (2) This device must accept any interference, including interference that may
cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation
est autorisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d'en compromettre le fonctionnement.
HVIN: USB06K
Radio Frequency Exposure General Statement
StarTech.com products have been tested and meet applicable limits for Radio Frequency (RF) exposure for the country where
they are intended to operate.
Products intended for use 20cm (8 inches) or more from the body meet limits for Maximum Permissive Exposure (MPE).
Products intended to be used at distances less than 20cm (8 inches) from the body meet limits for Specific Absorption Rate
(SAR).
Specific Absorption Rate (SAR) refers to the rate at which the body absorbs RF energy. SAR limits are 1.6 Watts per kilogram (over
a volume containing a mass of 1 gram of tissue) in countries that follow the United States FCC limit and 2.0 W/kg (averaged over
10 grams of tissue) in countries that follow the Council of the European Union limit.
Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols
This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of thirdparty
companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and
do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this
manual applies by the third-party company in question. StarTech.com hereby acknowledges that all trademarks, registered
trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the
property of their respective holders.
Warranty Information
This product is backed by a two-year warranty.
For further information on product warranty terms and conditions, please refer to
Limitation of Liability
In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents)
for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of
business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.
Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations
or exclusions contained in this statement may not apply to you.
Safety Measures
If product has an exposed circuit board, do not touch the product under power
Mesures de sécurité
Si l'un des circuits imprimés du produit est visible, ne pas touchez le produit lorsqu'il est sous tension.
安全対策
製品に露出した状態の回路基盤が含まれる場合、電源が入っている状態で製品に触らないでください。
Misure di sicurezza
Se il prodotto ha un circuito stampato visibile, non toccare il prodotto quando è acceso.
Säkerhetsåtgärder
Rör aldrig vid enheter med oskyddade kretskort när strömmen är påslagen.
StarTech.com Ltd.
StarTech.com LLP
45 Artisans Crescent
4490 South Hamilton
London, Ontario
Road
N5V 5E9
Groveport, Ohio
Canada
43125
U.S.A.
Quick-Start Guide
www.startech.com/warranty
StarTech.com Ltd.
StarTech.com Ltd.
Unit B, Pinnacle 15
Siriusdreef 17-27
Gowerton Road
2132 WT Hoofddorp
Brackmills,
The Netherlands
Northampton
NN4 7BW
United Kingdom
Manual Revision: February 27, 2023 5:47 PM
FR: startech.com/fr
DE: startech.com/de
ES: startech.com/es
NL: startech.com/nl
IT: startech.com/it
JP: startech.com/jp
