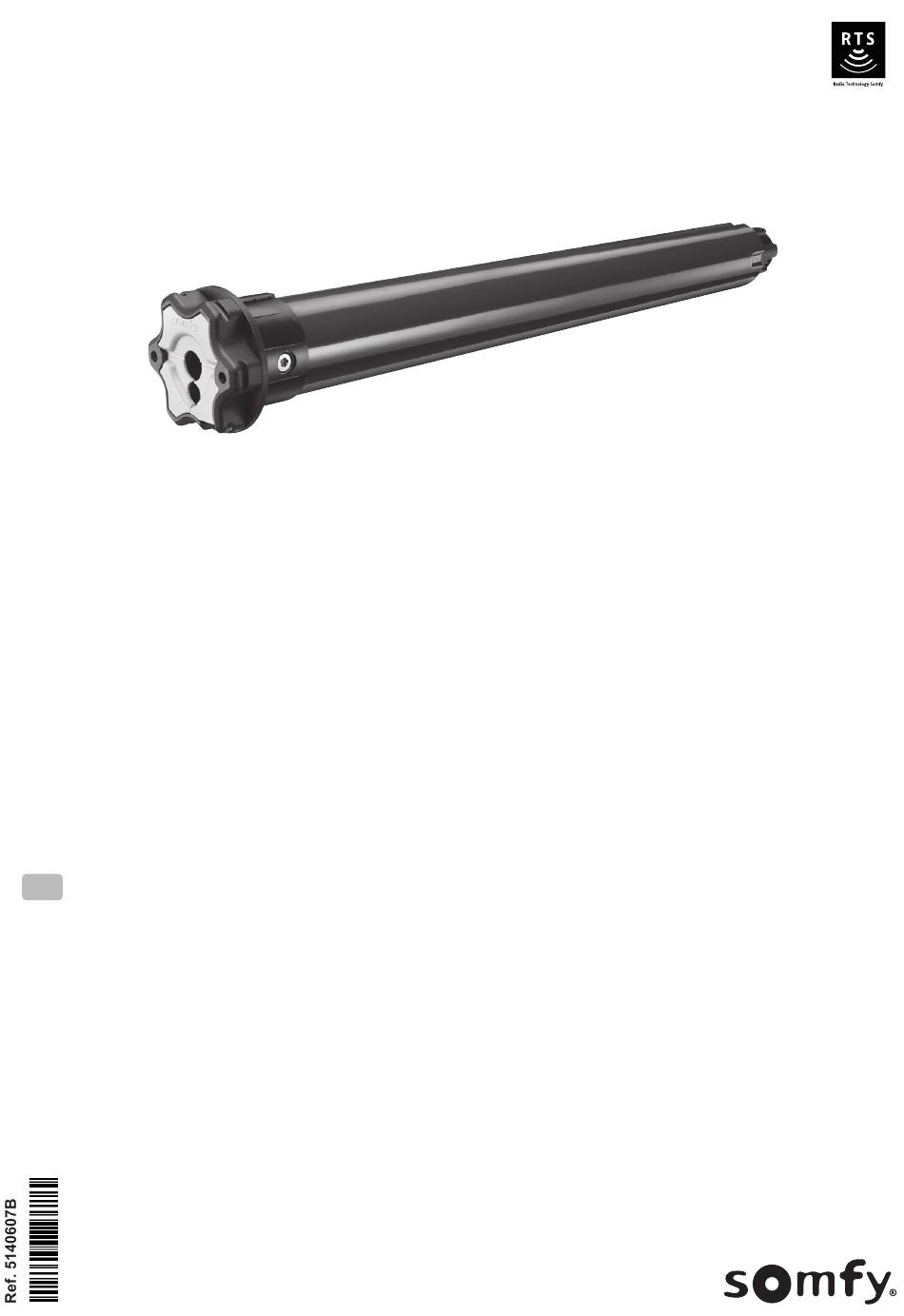

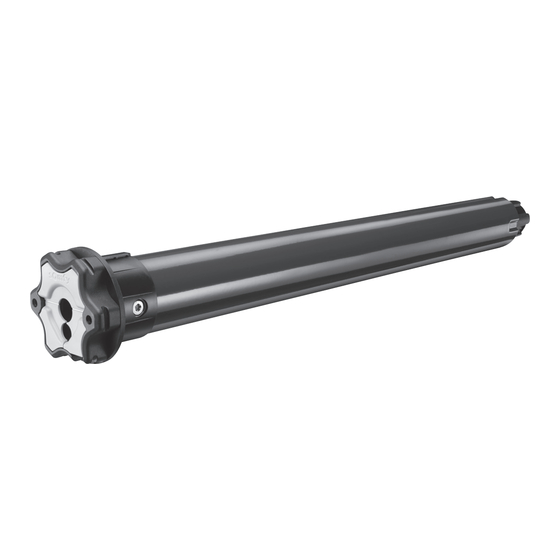

- Page 1 MAESTRIA+ 50 RTS Instructions...
-
Page 3: Table Of Contents
Any operation of the drive outside the sphere of application described above is prohibited. Such operation shall exclude Somfy from all liability and invalidate the Somfy warranty, as will any failure to comply with the instructions given herein and in the enclosed Safety instructions document. -
Page 4: Installation
This prevents the tube- drive assembly from coming out of the end support fixing. Depending on the type of support, fit the retaining ring Non contractual images Copyright © 2015 - 2018 SOMFY ACTIVITÉS SA, Société Anonyme. All rights reserved. -
Page 5: Wiring
The driven product moves up and down briefly upon power-up. The end limits have been set and no control point is programmed. See section "Preprogramming of the Somfy local control point" (§2. 3. 2) then section "Programming of the Somfy local control point" (§2. 3. 6 A). - Page 6 ** This step is especially suitable for "ZIP screens" or for any other specific driven product with a heavy load bar and a top stop. Non contractual images Copyright © 2015 - 2018 SOMFY ACTIVITÉS SA, Société Anonyme. All rights reserved.
- Page 7 To validate the setting, press the "my" button until the driven product moves up and down briefly. If the lower end limit is not set automatically after several attempts, perform the step E2. Copyright © 2015 - 2018 SOMFY ACTIVITÉS SA, Société Anonyme. All rights reserved. Non contractual images...
- Page 8 (P2), which corresponds to the automatic catching system's exit point. Press "my" until the driven product moves up and down briefly to validate the end limit setting. Non contractual images Copyright © 2015 - 2018 SOMFY ACTIVITÉS SA, Société Anonyme. All rights reserved.
- Page 9 To validate the setting, press the "my" button until the driven product moves up and down briefly. Copyright © 2015 - 2018 SOMFY ACTIVITÉS SA, Société Anonyme. All rights reserved. Non contractual images...
-
Page 10: Tips And Advice On Installation
Place the driven product in its new end limit position using the "Up" or "Down" buttons. To validate the setting, press the "my" button until the driven product moves up and down briefly. Non contractual images Copyright © 2015 - 2018 SOMFY ACTIVITÉS SA, Société Anonyme. All rights reserved. - Page 11 Press the PROG button on the Somfy local control point for ≈ 7 s until the driven product moves up and down two times: the drive is reset to its original configuration. Copyright © 2015 - 2018 SOMFY ACTIVITÉS SA, Société Anonyme. All rights reserved. Non contractual images...
-
Page 12: Operation And Maintenance
Press the "Down" button: the driven product lowers. When it reaches the lower end limit, the driven product raises automatically to draw the fabric taut. Non contractual images Copyright © 2015 - 2018 SOMFY ACTIVITÉS SA, Société Anonyme. All rights reserved. -
Page 13: Operation With Sensors
Unlock the catches manually. Press the "Up" button: the driven product raises to the upper end limit. 3. 5. OPERATION WITH SENSORS Refer to the corresponding guide. Copyright © 2015 - 2018 SOMFY ACTIVITÉS SA, Société Anonyme. All rights reserved. Non contractual images... -
Page 14: Tips And Advice On Operation
European Directives and in particular of the Machinery Directive 2006/42/EC, and the Radio Directive 2014/53/EU. The full text of the EU declaration of conformity is available at www.somfy.com/ce. Antoine Crézé, Approval manager, acting on behalf of Activity director, Cluses, 01/2018. - Page 16 SOMFY ACTIVITÉS SA 50 avenue du Nouveau Monde F - 74300 CLUSES www.somfy.com...
