ROFU 1509 Instruction Manual

For Commercial and Residential, New and Retrofit Uses
1509
Non-Handed

Available in the following Voltages and Finishes:

Specify Finish
Voltage, Fail Secure x01=8 -16VAC/3-6VDC
ROFU
1509 - SERIES, FACEPLATE SIZE 1

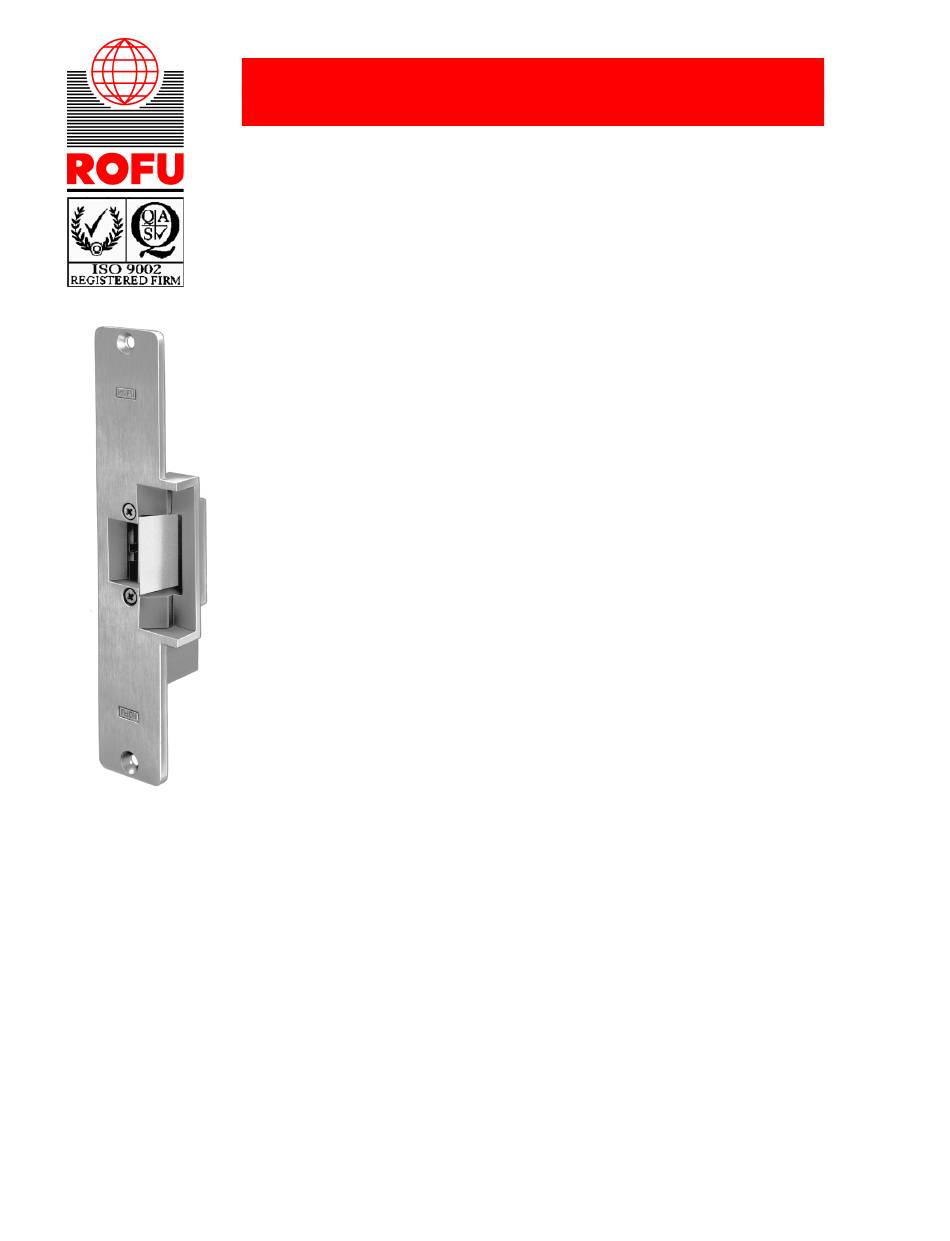

MODEL 1509 — Fail - Secure (Non Fail - Safe)
Electric strikes for use with cylindrical locksets.

Standard Features

•
Zinc/Aluminum Alloy Faceplate
•
Frame Type - Hollow Metal, Aluminum or Wood
•
Corrosion - Resistant case and moving parts.
•
Tamper Strength Test - 1000 lbs (454kg)
•
Cycle Test 500,000 cycles
•
Keeper Depth - 5/8" Maximum Latch Projection possible
with 1/8" Door/Frame Clearance - 3/4"
•
Strike Depth 1.43" Overall
•
Reversible - Non Handed
•
Limited Warranty - 36 Months
xUS28
x 05=12VAC/12VDC
x08=24VAC/24VDC
