ROFU 1703 Quick Start Manual

Electric strikes for use with mortise and cylindrical locksets.
1703
Non-Handed
Available in the following Voltages and Finishes:
Specify Finish
Voltage, Fail Secure x 01=8 -16VAC/3-6VDC (Intermittent Duty)

Optional Features:

•
Radius Faceplate for Aluminum Jamb, Specify "RAD."
• 2" Lip Extension, specify #10002.
NOT TO SCALE - TECHNICAL DATA SUBJECT TO CHANGE WITHOUT NOTICE
ROFU
1703 - SERIES, FACEPLATE SIZE 1¼" x 6
MODEL 1703 — Fail - Secure (Non Fail - Safe)
For Commercial and Residential, New or Retrofit Uses

Standard Features

•
Anodized Aluminum Faceplate
•
Frame Type - Hollow Metal or Aluminum
•
Corrosion - Resistant case and moving parts.
•
Tamper Strength Test - 1000 lbs (454kg)
•
Cycle Test 500,000 cycles
•
Keeper Depth - 1/2" Maximum Latch Projection possible
with 1/8" Door/Frame Clearance - 5/8"
•
Strike Depth 1.50" Overall
•
Reversible - Non Handed
•
Adjustable Keeper ( FAFIX )
•
Limited Warranty - 36 Months
x US28, US10B
x04=12VAC/12VDC (Intermittent Duty)
x05=12VDC (Continuous Duty)
x07=24VAC/24VDC (Intermittent Duty)
x08=24VDC (Continuous Duty)
x14=48VAC/48VDC (Intermittent Duty)
®

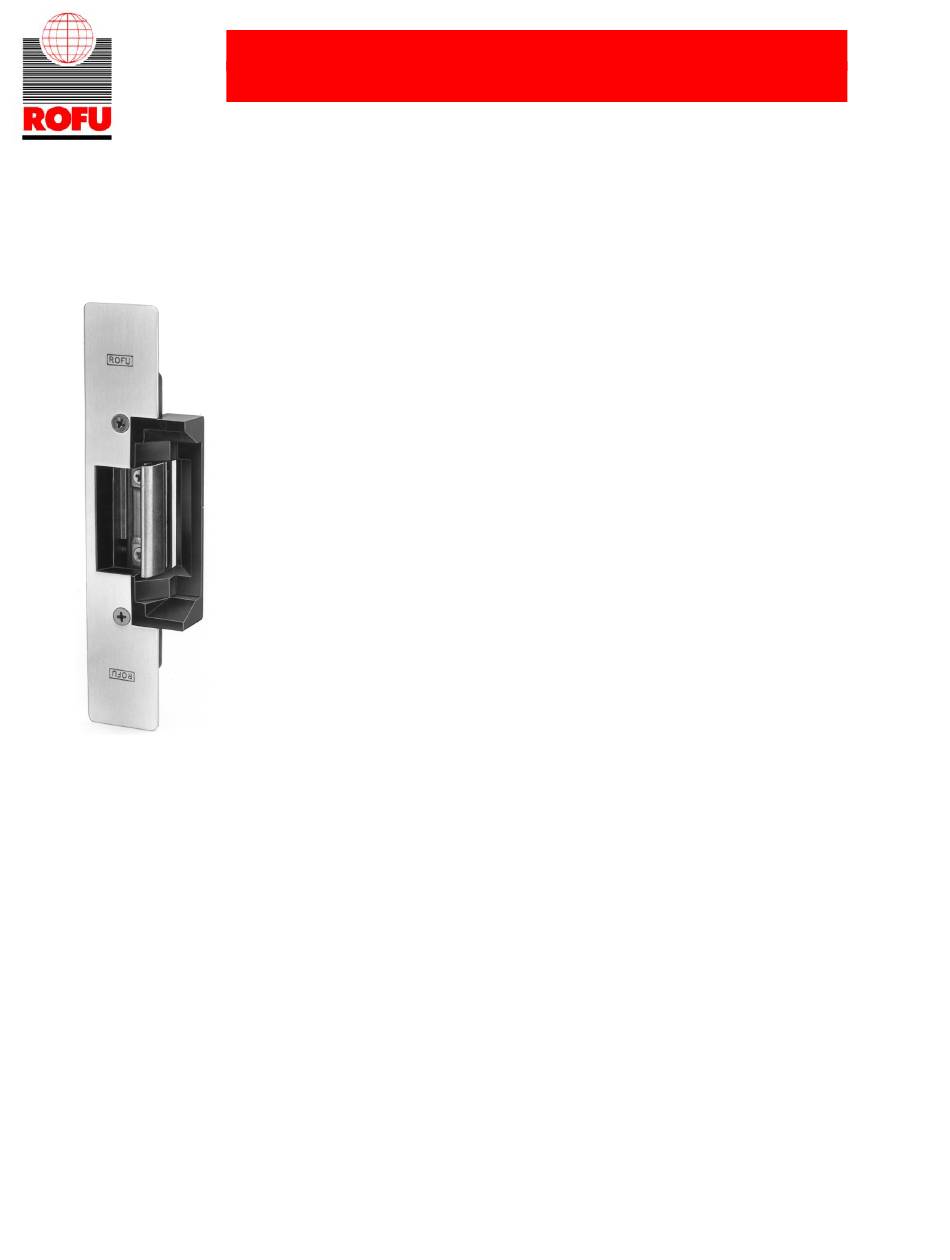

ELECTRIC STRIKE
MODEL 1703
