ROFU 8512-DE Installation Instructions Manual

Delayed egress magnetic lock

Advertisement

R F U
O
Overview
The ROFU 8512-DE Delayed Egress Magnetic Lock Assembly is designed to comply with the NFPA 101 Life Safety Code. This delayed
egress locking system's principal application is for secure locking and delayed release of perimeter and emergency exit doors. The ROFU
8512-DE electromagnetic lock is a self-contained, standalone unit that uses existing door exit and latching hardware, and all electronics
are built into the magnet's wiring compartment for ease of installation.

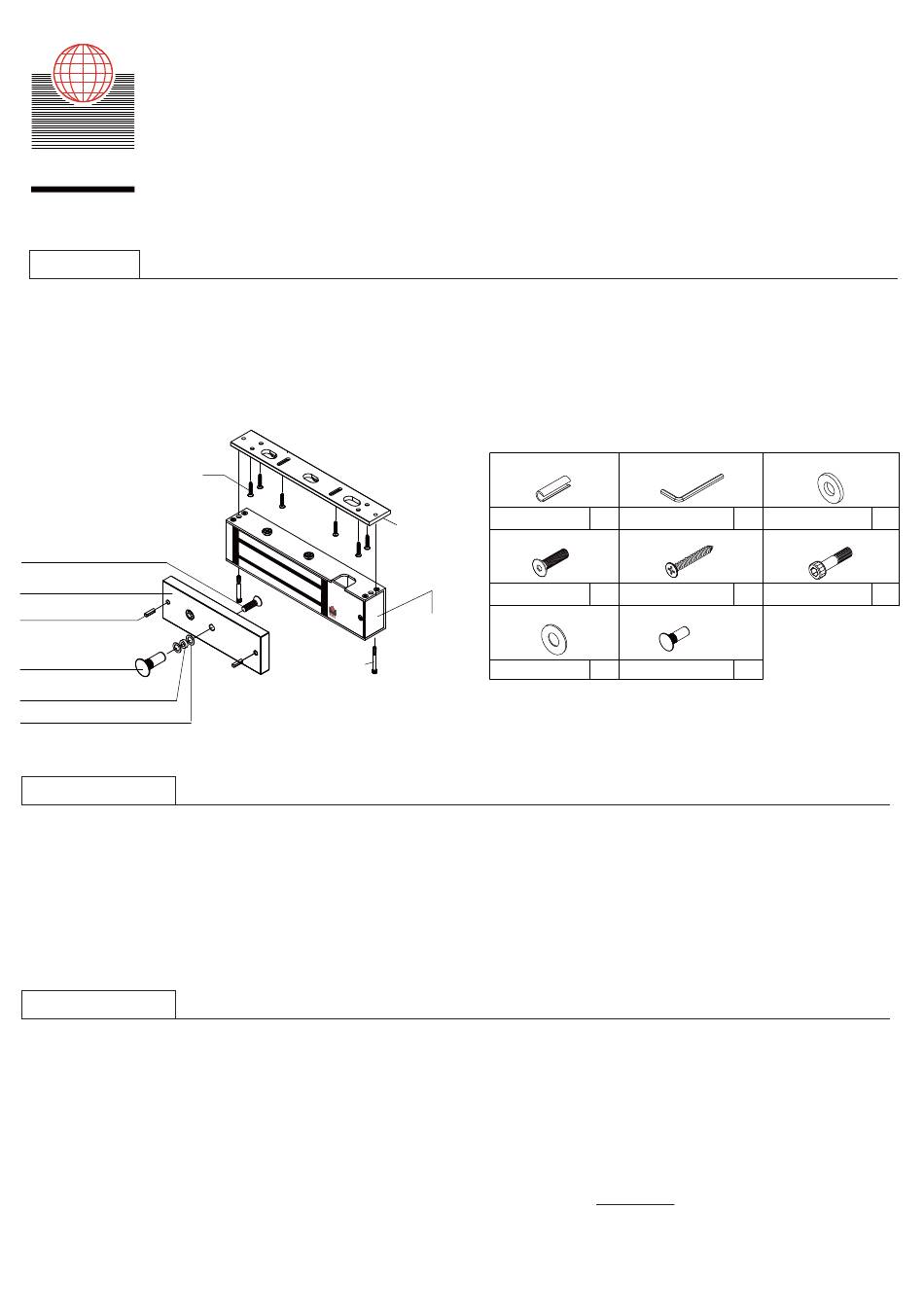

Self-Tapping Screw
Armature Screw
Armature Plate
Roll Pin
Sexnut Bolt
Rubber Washer
Metal Washer
How it Works
The delayed egress system is activated by pushing on the exit push bar. The exit attempt (pushing on the exit bar) must exceed a pre-set
nuisance delay of 0, 1, 2 or 3 seconds to start the delayed egress cycle. Note: the 0 second nuisance includes a 200 millisecond de-bounce
delay to eliminate false triggering.
When the nuisance time is exceeded after applying a continuous pressure of 15 pounds or greater to the exit bar, an irreversible 15 or 30
second egress cycle begins. During this egress cycle, a piezo alarm beeps once for each second of the count-down. When the magnetic
lock de-energizes to release the door for free egress after the delayed egress cycle, the piezo alarm sounds continuously and the door
remains unlocked until reset.
Bench Testing
This procedure allows the installer to perform a quick bench check of the ROFU 8512-DE lock and to become familiar with the lock's
basic operation prior to installation.
Test Set-up
Remove the cover plate and locate the 4-position DIP-switch on the bottom circuit board. Set all 4 switches to OFF. The lock is now set
for zero seconds nuisance delay time and is set for 15 seconds delayed egress cycle. Proceed to wire the magnetic lock as follows:
1. In the lock's wiring compartment, locate the input terminal block on the circuit board and temporarily place a jumper across "FIRE" and
"COM". Note: the two "COM" terminals are both common and either can be used for wiring convenience.
Copyright © ROFU Security International Corp. All rights reserved.
P-MU-ROFU-8512-DE Published on: 2016.12.12
Installation Instructions
ROFU 8512-DE Delayed Egress Magnetic Lock
ROFU Security International Corp.
1-800-255-7638 (1-800-ALL-ROFU)
Mounting Plate
Electromagnet
Mounting Bolt
10029 S. Tacoma Way, E-11
Lakewood, WA 98499 USA
www.ROFU.com
OrderEntry@rofu.com
Screw Package Components:
Roll Pin
3/16" x 5/8"
Allen Flat Head Screw
5/16"x 1 3/8"
Metal Washer
5/16" x 7/8"
Hexagon Key (Allen Wrench)
x 2
3/16"
x 1
11/32" x 19/32" x 5/32"
Philips Flat Head Screw
x 1
3/16" x 1 1/4"
x 6
Sexnut Bolt
x 3
1/2" x 1 9/16"
x 1
Rubber Washer
x 1
Thru-Bolt (Hex Screw)
1/4" x 1 9/16"
x 2
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 8512-DE and is the answer not in the manual?

Questions and answers

Summary of Contents for ROFU 8512-DE

  • Page 1 Bench Testing This procedure allows the installer to perform a quick bench check of the ROFU 8512-DE lock and to become familiar with the lock’s basic operation prior to installation. Test Set-up Remove the cover plate and locate the 4-position DIP-switch on the bottom circuit board.
  • Page 2: Installation Instructions

    2. Apply DC power. After a 3 second delay, the bond alarm will sound a repeating pattern of 4 quick beeps, synchronous with the flashing LED. When all the testing is complete, remove all wiring connections to the lock’s terminals. Ensure that the jumper across “FIRE” and “COM” is removed. Copyright © ROFU Security International Corp. All rights reserved. P-MU-ROFU-8512-DE Published on: 2016.12.12...
  • Page 3 2. Slide the magnet onto the mounting plate. 1. Align the two slotted holes and attach the magnet to the Keyhole Mounting “slides Left to Right” mounting plate. Copyright © ROFU Security International Corp. All rights reserved. P-MU-ROFU-8512-DE Published on: 2016.12.12...
  • Page 4 The lock will also beep when the bypass is completed. 3. For 2-door (double door) operation, install a ROFU model 8512-LC lock on the adjacent door and connect it to terminals “MAG” and “COM”.
  • Page 5: Operational Features

    Electrical Ratings Nuisance and Delayed Egress Cycle The ROFU 8512-DE lock can be set for nuisance delays of 0, 1, 2, or 3 seconds and for delayed egress cycles of 15 or 30 seconds via an internal DIP switch. Permission from the authority having jurisdiction is required for the 30- second...
  • Page 6: Troubleshooting

    OrderEntry@rofu.com Typical Delayed Egress Installation INSTALLING THE PUSH BAR Use the ROFU Model 9500 push bar with door cord. All wiring must be protected or concealed in compliance with local codes. Install and wire the push bar per the manufacturer’s instructions. Use the armored, flexible door cord for routing the wiring from the bar’s micro-switches into the hollow door frame.
