ROFU 1401 Quick Start Manual

1401 AND 3401 - SERIES, FACEPLATE SIZE 1¼" x 5
Electric strikes for use with mortise and cylindrical locksets.
For Commercial and Residential, New and Retrofit Uses
1401/3401
Non-Handed

Available in the following Voltages and Finishes:

Specify Finish
Voltage, Fail Secure x01=8 -16VAC/3-6VDC, x05=12VAC/12VDC, x08=24VAC/24VDC
Voltage, Fail Safe

Optional Features:

•
Adjustable Keeper (FAFIX), available for 3401 series. Specify FAFIX
NOT TO SCALE - TECHNICAL DATA SUBJECT TO CHANGE WITHOUT NOTICE
ROFU

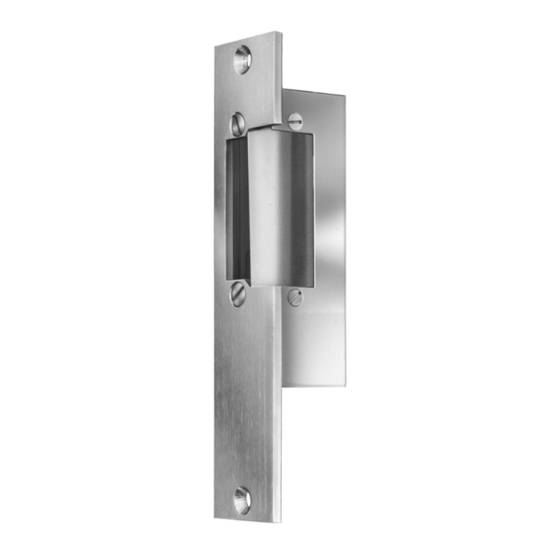

MODEL 1401/3401
MODEL 1401 — Fail - Secure (Non Fail - Safe)
MODEL 3401 — Fail - Safe

Standard Features

•
Steel Faceplate
•
Frame Type - Wood
•
Corrosion - Resistant case and moving parts.
•
Tamper Strength Test - 1400 lbs (635kg)
•
Cycle Test 500,000 cycles
•
Keeper Depth - 5/8" Maximum Latch Projection possible
with 1/8" Door/Frame Clearance - 3/4"
•
Strike Depth 1.46" Overall
•
Reversible - Non Handed
•
Limited Warranty - 36 Months
xUS26D or xUS4
x06=12VDC, x09=24VDC
®
ELECTRIC STRIKE
