- Page 1 Quick Start Guide Wireless Security Camera System For more information of your new system, please refer to www.zositech.com V6.I.01.Z...
- Page 2 Contents...

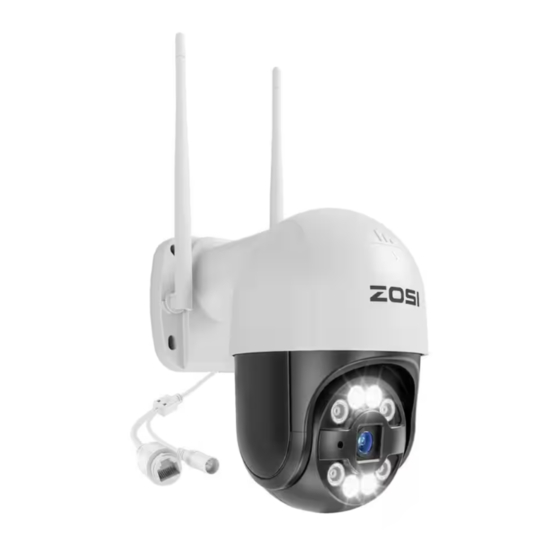

- Page 3 Gallery & Specs 1.1 NVR Antenna Antenna Network Port USB Backup HDMI Port VGA Port USB Mouse Power Supply Audio Output 1.2 Wireless IP Camera Antenna Spotlight X4 Lens IR-LEDX4 Microphone Speaker Network Port Power Port...
-
Page 4: System Connection
System Connection 2.1 Connect NVR to the Internet (1) Connect NVR to router using a network cable. (2) Connect monitor to NVR via HDMI or VGA port. (3) Connect the included USB mouse to the top USB port of NVR. (4) Connect NVR to 12V power supply. - Page 5 A: Camera Installation Diagram Following the mounting hole template to drill holes in the wall and insert the wall plugs. ❶ Align the camera Base with the mounting hole template, using the screws to fix the base. ❷ NOTE: Place the camera wire in the notch of the camera base. Manually rotate the angle of the camera to adjust the appropriate monitoring angle.
- Page 6 C: WiFi Setup Right-click the main interface - Main Menu - Setup - Network - Wireless Network, default setting and apply. 2.2 Download ZOSI Smart App Zosi Smart App (IOS/Android) App video operation link...
- Page 7 AVSS PC Client 3.1 Install AVSS on PC Get the AVSS software from www. zositech.com or from your agent. Double-click the icon AVSS to open, select the language and click Login. Note: You can log in with the default username and password, or register a new account.
-
Page 8: Add Device
3.3 Live View 3.4 Video Playback Select channel to watch live streaming. Select ‘Playback’, select device, channel, date, time, click the play button to start replaying recorded video. Add Device 4.1 Add IPC to wireless camera system (1) Connect IPC and NVR in the same wireless network. (2) Right-click the mouse on the live channel page and get the main menu. - Page 9 (5) Tick the IPC channel, click WiFi add. (6) The IPC device is successfully added and it can be displayed in live view channel and operated.
- Page 10 Hard Drive/ Micro SD Card Some camera kits may not contain hard drives, depending on the camera kit you purchase. This kit support most 3.5” HDD. NOTE: Please skip this step if your recorder has a pre-installed hard drive. 1. Remove the top cover 2.
-
Page 11: Video Record
Video Record Right click the mouse > Go to Main Menu > Setup > Record You shall see the record settings for all channels. Modify the record setting based on your needs and apply the changes. 6.1 Motion Detection Set motion Detection, NVR will only record when motion or movement is detected. - Page 12 Previous Record: move to last recorded event Next Record: move to next recorded event Fast Forward: video can be played at different speed, from 1/4 times to 16 times. Rewind: Video play can be rewinded at 1 time, 8 times, 16 times and 32 times. Screen Display Mode: both single-screen and multi-screen are available.
-
Page 13: Live Video Display
Live Video Display You can see picture display on the monitor normally, as the 4-channel picture shown in the figure. FAQs Q:Why can't I search for devices when adding cameras? A:Make sure that the device and the mobile device are on the same LAN, otherwise please enter the device ID manually.
