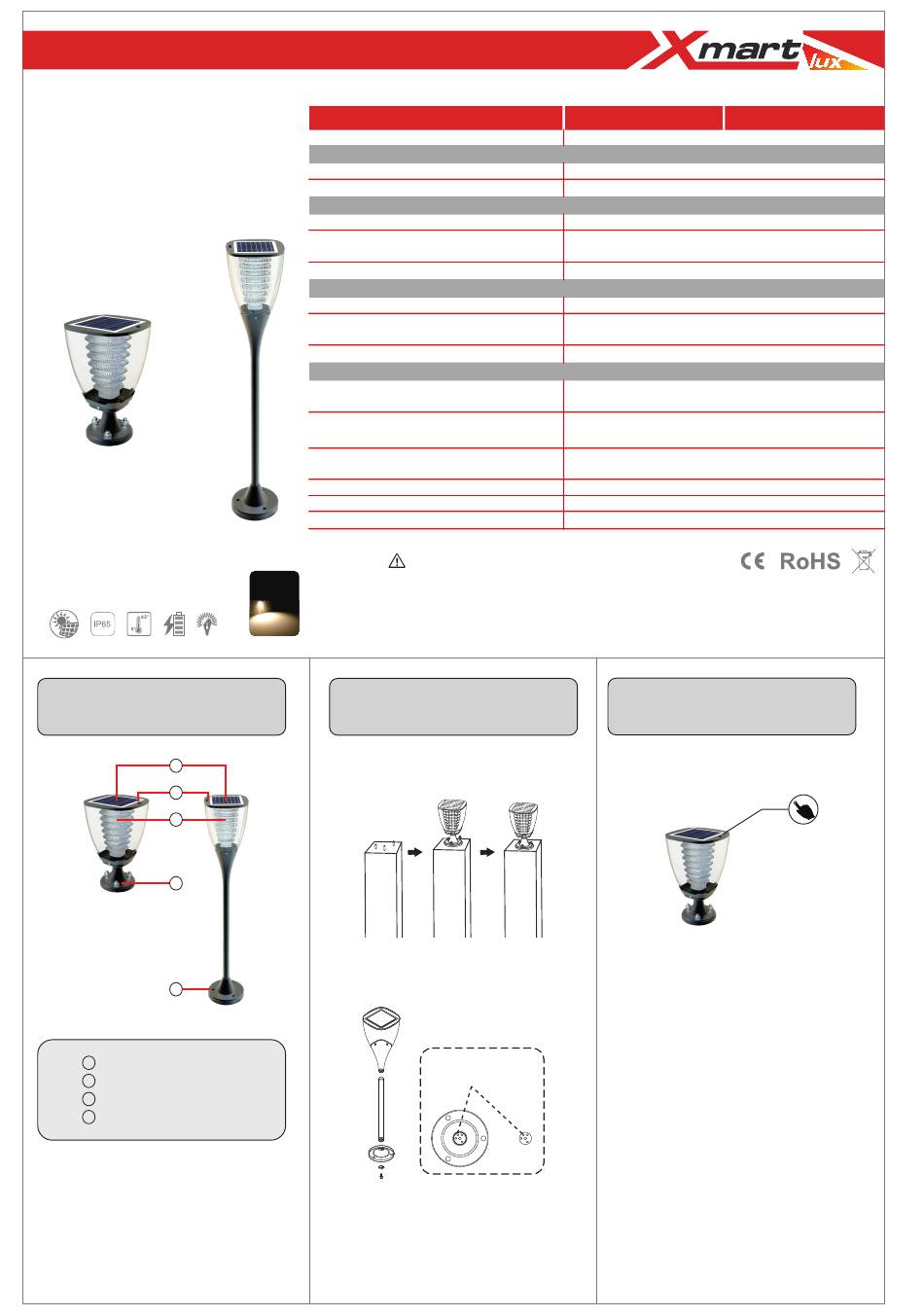

Xmart HL-BASE-15 User Manual

HL-BASE-15 / HL-BASE-25
Solar Lamp
USER MANUAL
Parts Identication
1
2
3
4
4
Solar Panel
1
Switch & Indicator Light
2
Led Panel
3
Screws
4
Special Features:
Monocrystalline Solar Panel
Li-ion Rechargeable Battery
Congurable Operation Modes
Material: PC & Aluminum
TECHNICAL SPECIFICATIONS / ESPECIFICACIONES TECNICAS
MODEL / MODELO
Luminosity / Luminosidad (LM)
SOLAR PANEL / PANEL SOLAR
Type / Tipo
Capacity / Capacidad
Li-Ion BATTERY / BATERIA Li-Ion
Capacity / Capacidad
Charge & Discharge Temperature /
Temperatura de Carga y Descarga
Recharge Time / Tiempo de Recarga
ILLUMINATION / ILUMINACION
LED (OSRAM)
Light Color Temperature / Temperatura de Color de la
Luz
Efciency / Eciencia
OPERATION / OPERACION
Backup (During cloudy days) / Autonomía (con Poca
Luz Solar)
Operation Modes / Modos de Operación
Mode Indication / Indicación de Modo
Capacity Indication / Indicador de Capacidad
IP/IK Codes / Códigos IP/IK
Directives / Normativas
WARNING
1. Keep the device away from re and re risk
100
2. There are no replaceable parts inside the lamp. If disassembled warranty will be void.
lumens
3. Do not remove battery for other use. If backup time is too short, lamp's battery needs to be recharged under bright sunlight
4. Clean solar panel regularly for more efcient operation and longer backup (Suggestion: At least every 6 months)
5. Long term storage might cause battery damage and leakage, Leakage might cause battery spontaneous combustion
6. Operation temperature for this lamp must comply with Technical Specications
Installation Instructions
HL-BASE-15: Screw the lamp base to the installation
place, making sure to have proper stability.
HL-BASE-25: Screw the lamp base to the installation
place, making sure to have proper stability.
Align positioning holes
IMPORTANT
1. Use standard installation accessories
2. If stored, charge the lamp every 3 months, to avoid
battery damage
3. If stored for more than 1 year without charging, make a
charge & discharge process to assure battery is in good
condition, otherwise it is not allowed to use.
HL-BASE-15
100
Monocrystalline / Monocristalino
5V/1.9W
3.7V / 7.4WH / 2.000 mAH
0 to 45 °C / -20 to 60 °C
5.5 H
2835 - 24pcs
3000K, Ra 80+
190 lm/W
Up to 10 nights / Hasta 10 noches
Mode 1: 100 LM x 5h+25 LM Until dawn / Hasta amanecer
Mode 2: 50 LM Until dawn / Hasta amanecer
Mode 1: Red - 1 Flash / Rojo - 1 Destello
Mode 2: Red - 2 Flashes / Rojo - 2 Destellos
N / A
IP65 / IK10
CE (IEC60598-1 / IEC60598-2-3 / EN55015 / EN61547)
Operation Instructions
Power On/Off: Press switch for 1.5 Sec, approx.
Mode Change: Press switch shortly to choose Mode
1 or Mode 2.
Available Modes:
Mode 1: Red Indicator 1 Flash
100 LMx5H + 25LM Until dawn
Mode 2: Red Indicator 2 Flashes
50 LM Until dawn
Select Operation Mode according to your own
requirements
www.xmart-ups.com
