Portable EV charger manual
7.4kW PN. EV20002
Features:
Charging plug meet: IEC 62196 and
SAEJ1772
Operating temperature: -30ºC to +50ºC
Excellent protection performance
Protection Grade IP55-Working
condition.
Mechanical Properties
Mechanical life: no-load plug in / pull out
> 10000times
Cautions:
﹒DO not put the charging adaptor in the
water.
﹒DO not step on the adaptor, do not pull
it, do not fold it up and do not know it.
Page | 1

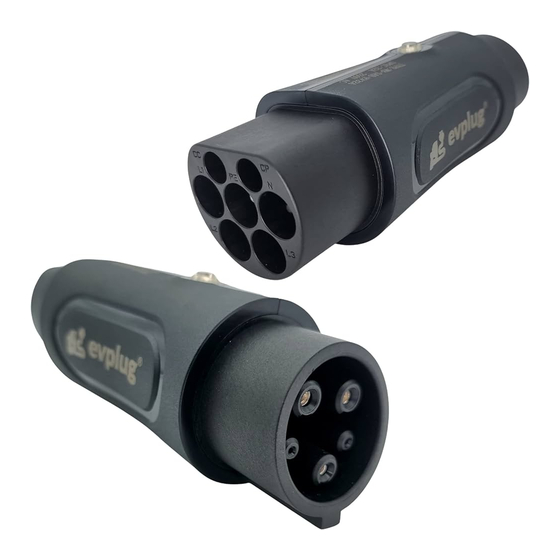

User manual for evplug adaptor 7.4kW PN. EV20002
Impact of external force: can afford 1m
drop and 2T vehicle run over pressure
Electric Performance
Rated Current and Voltage: as table
attached below
﹒Insulation Resistance: >1000MΩ
(DC500V)
﹒Terminal Temperature Rise: < 50K
﹒Contact impedance: 0.5 mΩ Max
﹒DO not place the charging adaptor near
high-temperature objects.
﹒DO not use the charging adaptor in
extreme temperatures (normal operating
range (-30ºC to +50ºC).
Designed in EUROPE
Made in China
www.evplugchargers.com
