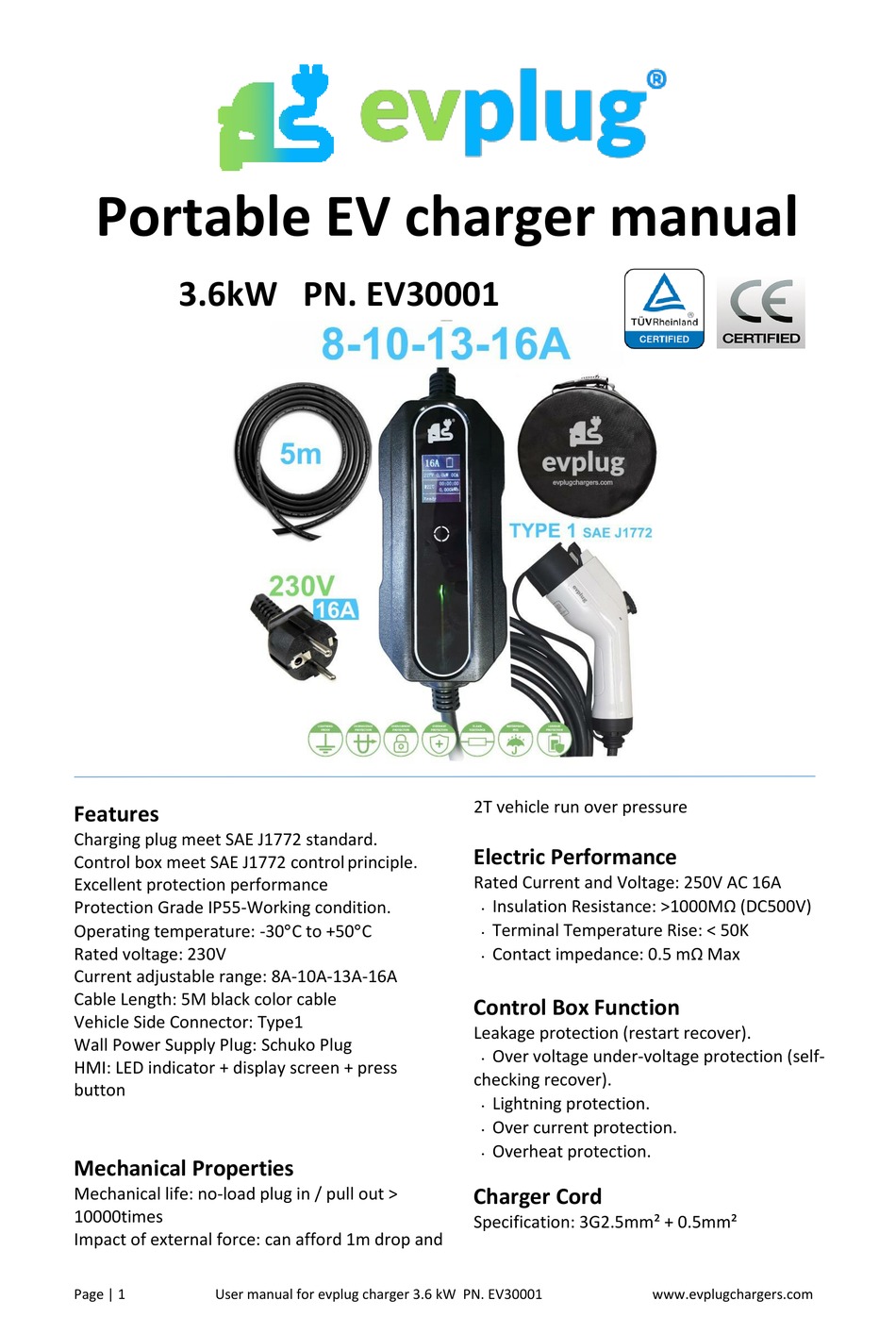

evplug EV30001 Manual

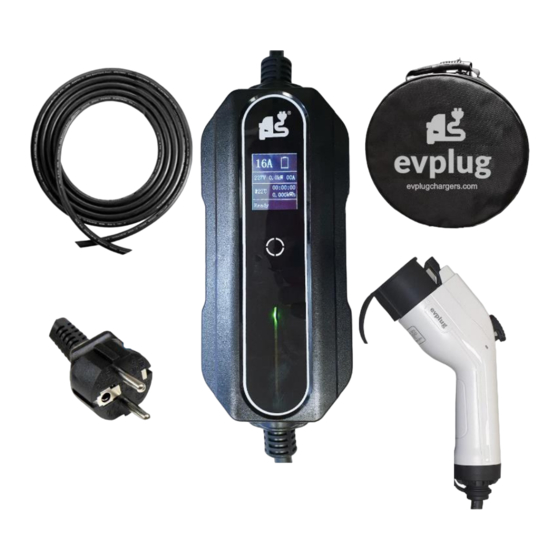

Portable EV charger manual
3.6kW PN. EV30001

Features

Charging plug meet SAE J1772 standard.
Control box meet SAE J1772 control principle.
Excellent protection performance
Protection Grade IP55-Working condition.
Operating temperature: -30C to +50C
Rated voltage: 230V
Current adjustable range: 8A-10A-13A-16A
Cable Length: 5M black color cable
Vehicle Side Connector: Type1
Wall Power Supply Plug: Schuko Plug
HMI: LED indicator + display screen + press
button

Mechanical Properties

Mechanical life: no-load plug in / pull out >
10000times
Impact of external force: can afford 1m drop and
Page | 1 User manual for evplug charger 3.6 kW PN. EV30001
2T vehicle run over pressure

Electric Performance

Rated Current and Voltage: 250V AC 16A
﹒Insulation Resistance: >1000MΩ (DC500V)
﹒Terminal Temperature Rise: < 50K
﹒Contact impedance: 0.5 mΩ Max

Control Box Function

Leakage protection (restart recover).
﹒Over voltage under-voltage protection (self-
checking recover).
﹒Lightning protection.
﹒Over current protection.
﹒Overheat protection.
Charger Cord
Specification: 3G2.5mm² + 0.5mm²
