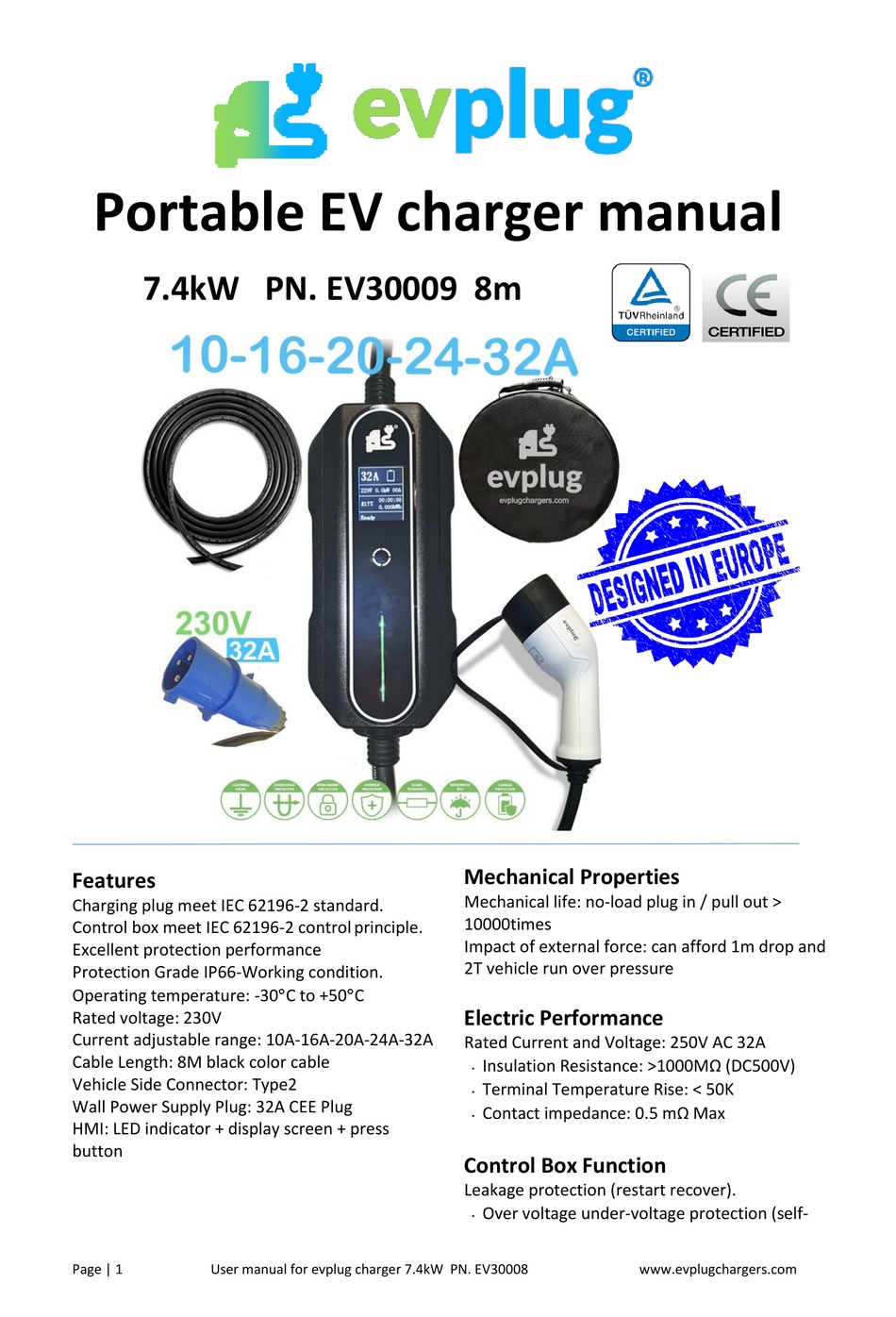

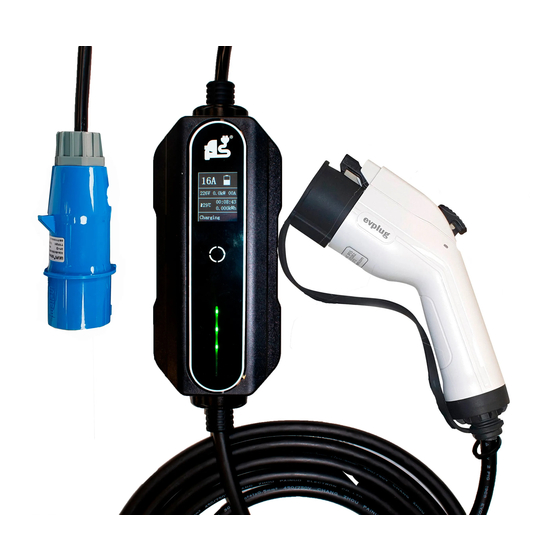

evplug ev30009 Manual

Portable EV charger manual
7.4kW PN. EV30009 8m
8m

Features

Charging plug meet IEC 62196-2 standard.
Control box meet IEC 62196-2 control principle.
Excellent protection performance
Protection Grade IP66-Working condition.
Operating temperature: -30C to +50C
Rated voltage: 230V
Current adjustable range: 10A-16A-20A-24A-32A
Cable Length: 8M black color cable
Vehicle Side Connector: Type2
Wall Power Supply Plug: 32A CEE Plug
HMI: LED indicator + display screen + press
button
Page | 1 User manual for evplug charger 7.4kW PN. EV30008

Mechanical Properties

Mechanical life: no-load plug in / pull out >
10000times
Impact of external force: can afford 1m drop and
2T vehicle run over pressure

Electric Performance

Rated Current and Voltage: 250V AC 32A
﹒Insulation Resistance: >1000MΩ (DC500V)
﹒Terminal Temperature Rise: < 50K
﹒Contact impedance: 0.5 mΩ Max

Control Box Function

Leakage protection (restart recover).
﹒Over voltage under-voltage protection (self-
