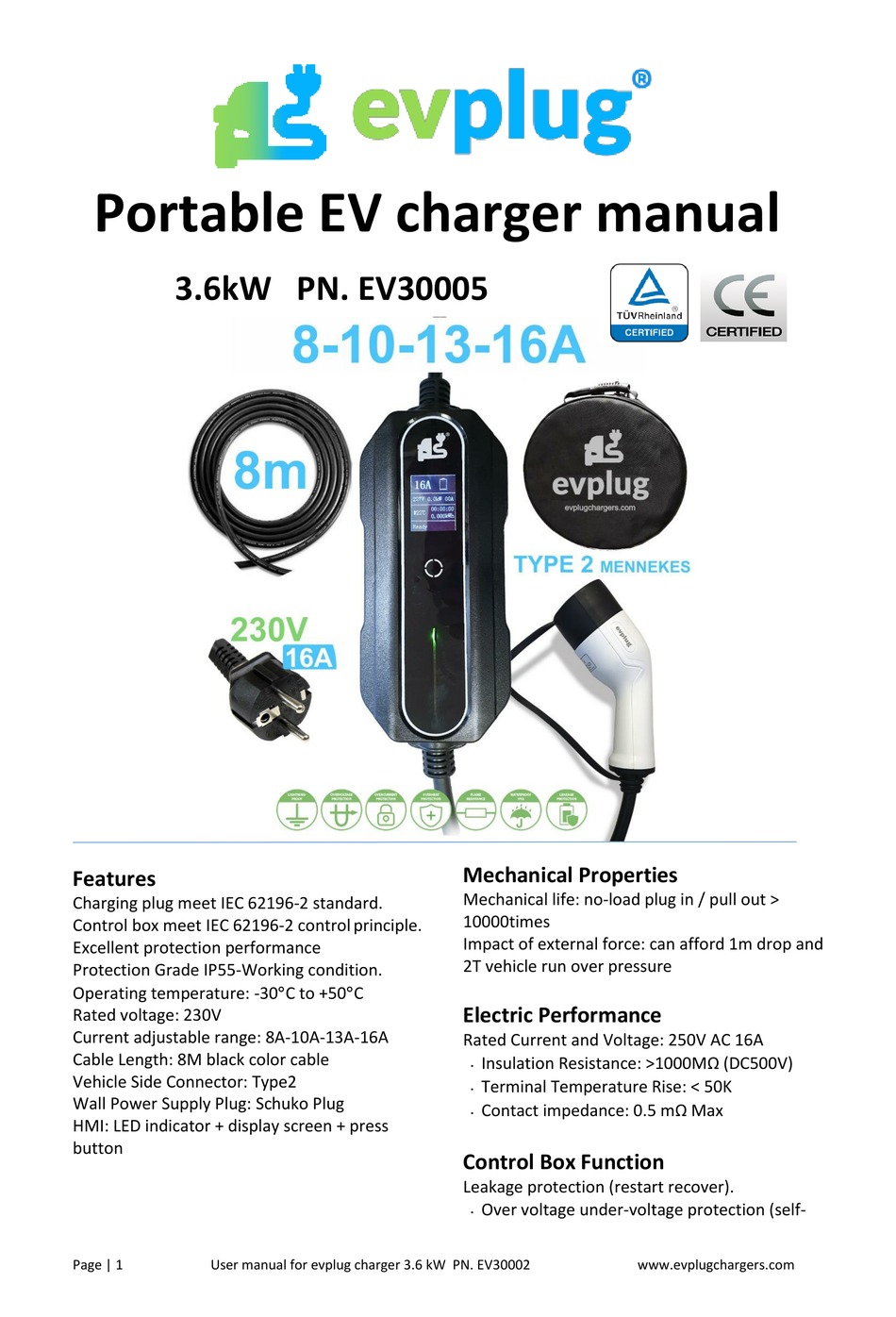

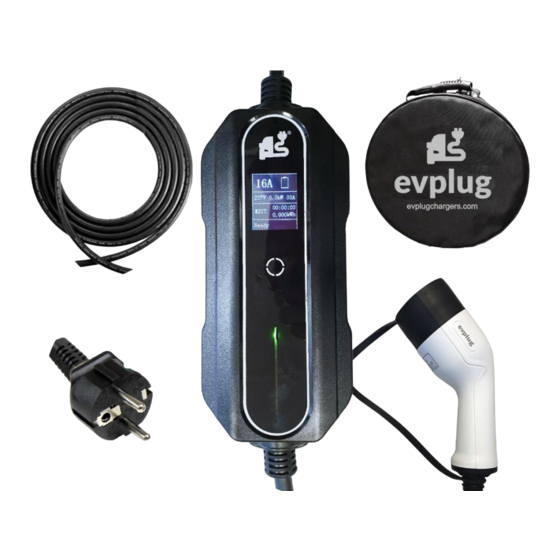

Portable EV charger manual
3.6kW PN. EV30005
Features
Charging plug meet IEC 62196-2 standard.
Control box meet IEC 62196-2 control principle.
Excellent protection performance
Protection Grade IP55-Working condition.
Operating temperature: -30C to +50C
Rated voltage: 230V
Current adjustable range: 8A-10A-13A-16A
Cable Length: 8M black color cable
Vehicle Side Connector: Type2
Wall Power Supply Plug: Schuko Plug
HMI: LED indicator + display screen + press
button
Page | 1
User manual for evplug charger 3.6 kW PN. EV30002
Mechanical Properties
Mechanical life: no-load plug in / pull out >
10000times
Impact of external force: can afford 1m drop and
2T vehicle run over pressure
Electric Performance
Rated Current and Voltage: 250V AC 16A
﹒Insulation Resistance: >1000MΩ (DC500V)
﹒Terminal Temperature Rise: < 50K
﹒Contact impedance: 0.5 mΩ Max
Control Box Function
Leakage protection (restart recover).
﹒Over voltage under-voltage protection (self-
www.evplugchargers.com
