- Page 1 FMC to 4* SPF Module FH1223 User Manual...
-
Page 2: Table Of Contents
FMC to 4* SFP Module FH1223 User Manual Table of Contents Part1: FH1223 Module General Description..........3 Part 1.1: FH1223 Module Detail Parameter........4 Part 1.2: FH1223 Module Form Factor.......... 4 Part 2: FH1223 Module Function Description......... 5 Part 2.1: FH1223 Module Block Diagram........5 Part 2.2: FMC LPC Module Pin Assignment....... -
Page 3: Part1: Fh1223 Module General Description
SFP has a set of TX and a set of RX connected to the transceiver pins. The FMC interface of FH1223 is a standard HPC interface, used to connect to the FPGA development board, and meets the VITA57.1 standard. -
Page 4: Part 1.1: Fh1223 Module Detail Parameter

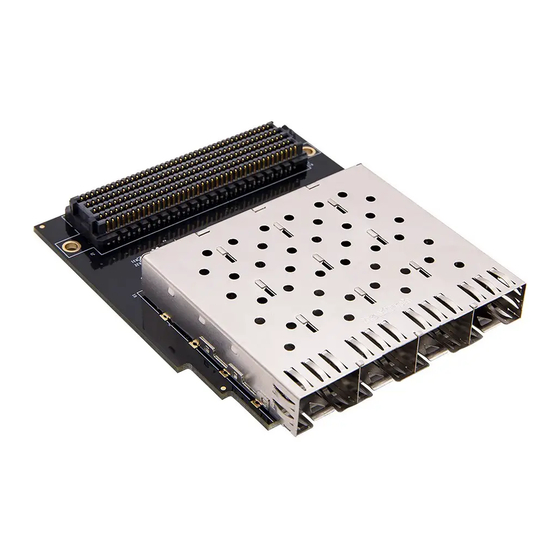

FMC to 4* SFP Module FH1223 User Manual Part 1.1: FH1223 Module Detail Parameter FH1223 module detail parameter listed as below: HPC Connectors 4*SFP Connector Part 1.2: FH1223 Module Form Factor Figure 1-2: FH1223 Module Form Factor 4 / 10... -
Page 5: Part 2: Fh1223 Module Function Description
FMC to 4* SFP Module FH1223 User Manual Part 2: FH1223 Module Function Description Part 2.1: FH1223 Module Block Diagram Figure 2-1: FH1223 Module Block Diagram as below: Figure 2-1: FH1223 Module Block Diagram Part 2.2: FMC LPC Module Pin Assignment Only the power and interface signals are listed below, and the GND signal is not listed. - Page 6 FMC to 4* SFP Module FH1223 User Manual The 3 SFP Signal, Transmit Positive SFP3_TX_P The 3 SFP Signal, Transmit Negative SFP3_TX_N The 4 SFP Signal, Transmit Positive SFP4_TX_P The 4 SFP Signal, Transmit Negative SFP4_TX_N Not Used FMC_DP4_C2M_P Not Used...
- Page 7 FMC to 4* SFP Module FH1223 User Manual Not Used FMC_LA17_CC_N Not Used FMC_LA23_P Not Used FMC_LA23_N Not Used FMC_LA26_P Not Used FMC_LA26_N +3.3V Power Supply +3.3V High Bit of EEPROM Address +3.3V Power Supply +3.3V +3.3V Power Supply +3.3V +3.3V Power Supply...
- Page 8 FMC to 4* SFP Module FH1223 User Manual Not Used FMC_HB04_P Not Used FMC_HB04_N Not Used FMC_HB08_P Not Used FMC_HB08_N Not Used FMC_HB12_P Not Used FMC_HB12_N Not Used FMC_HB16_P Not Used FMC_HB16_N Not Used FMC_HB20_P Not Used FMC_HB20_N VADJ Power Supply...
- Page 9 FMC to 4* SFP Module FH1223 User Manual Not Used FMC_LA19_N Not Used FMC_LA21_P Not Used FMC_LA21_N Not Used FMC_LA24_P Not Used FMC_LA24_N Not Used FMC_LA28_P Not Used FMC_LA28_N Not Used FMC_LA30_P Not Used FMC_LA30_N Not Used FMC_LA32_P Not Used...
- Page 10 FMC to 4* SFP Module FH1223 User Manual Not Used FMC_HB00_CC_P Not Used FMC_HB00_CC_N Not Used FMC_HB06_CC_P Not Used FMC_HB06_CC_N Not Used FMC_HB10_P Not Used FMC_HB10_N Not Used FMC_HB14_P Not Used FMC_HB14_N Not Used FMC_HB17_CC_P Not Used FMC_HB17_CC_N VIO_B Power Supply...
