Summary of Contents for Nordic JSTM-750S

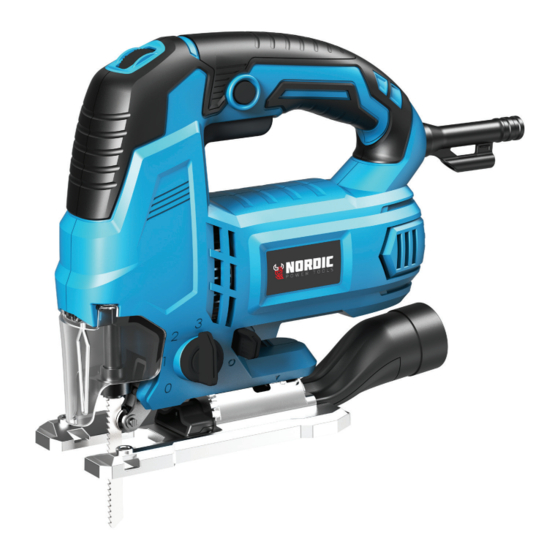

- Page 1 CORDED JIG SAW OPERATING MANUAL JSTM-750S...
- Page 2 NORDIC PRODUCT SPECIFICATION Voltage / Frequency: 230-240V ~ 50Hz Rated Power: 750W No-Load Speed: 1500 - 3100rpm Max Cutting Capacity: Wood: 105mm, Steel: 10mm Cable Length: Adaptor Type: SAA Plug GENERAL POWER TOOL SAFETY WARNINGS Read all safety warnings and instructions. Failure to heed warnings and follow instructions may result in electric shock, fire and/or serious injury.
- Page 3 NORDIC 2.3 PERSONAL SAFETY • Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool when you are tired or under the influence of drugs, alcohol or medication. A moment of inattention when operating a power tool may result in serious personal injury.
- Page 4 NORDIC 2.5 SERVICE Your power tool should be serviced by a qualified specialist using only standard spare parts. This will ensure that it meets the required safety standards. Special safety instructions for Jig Saw • Always remove plug from the socket before changing the blade or making adjustments to the jigsaw! •...
- Page 5 NORDIC SAWING • Switch on the jigsaw by pressing the on/off button. The saw blade runs up and downn. You can adjust the speed by turning the speed selector. • You can make the jigsaw run constantly by pressing the lock button while pressing the power button.
- Page 6 NORDIC SYMBOLS In this manual and/or on the machine the following symbols are used: Denotes risk of personal injury or damage to the tool. Read manual before use Wear eye protection Wear ear protection Wear safety gloves Wear respiratory protection In accordance with essential requirements of the European directive(s) Class II - The machine is double insulated;...
- Page 7 NORDIC CLEANING AND MAINTENANCE 9.1 CLEANING • Keep the ventilation slots of the machine clean to prevent overheating of the engine. • Regularly clean the machine housing with a soft cloth, preferably after each use. • Keep the ventilation slots free from dust and dirt.
- Page 8 NORDIC PARTS OF JIG SAW 1. LED work light 9. Sula 2. Speed selector 10. Knob for changing pendulum movement 3. Handle 11. Saw blade support saw 4. Power button 12. Screw to parallel stop 5. Lock button 13. Safety bar 6.
