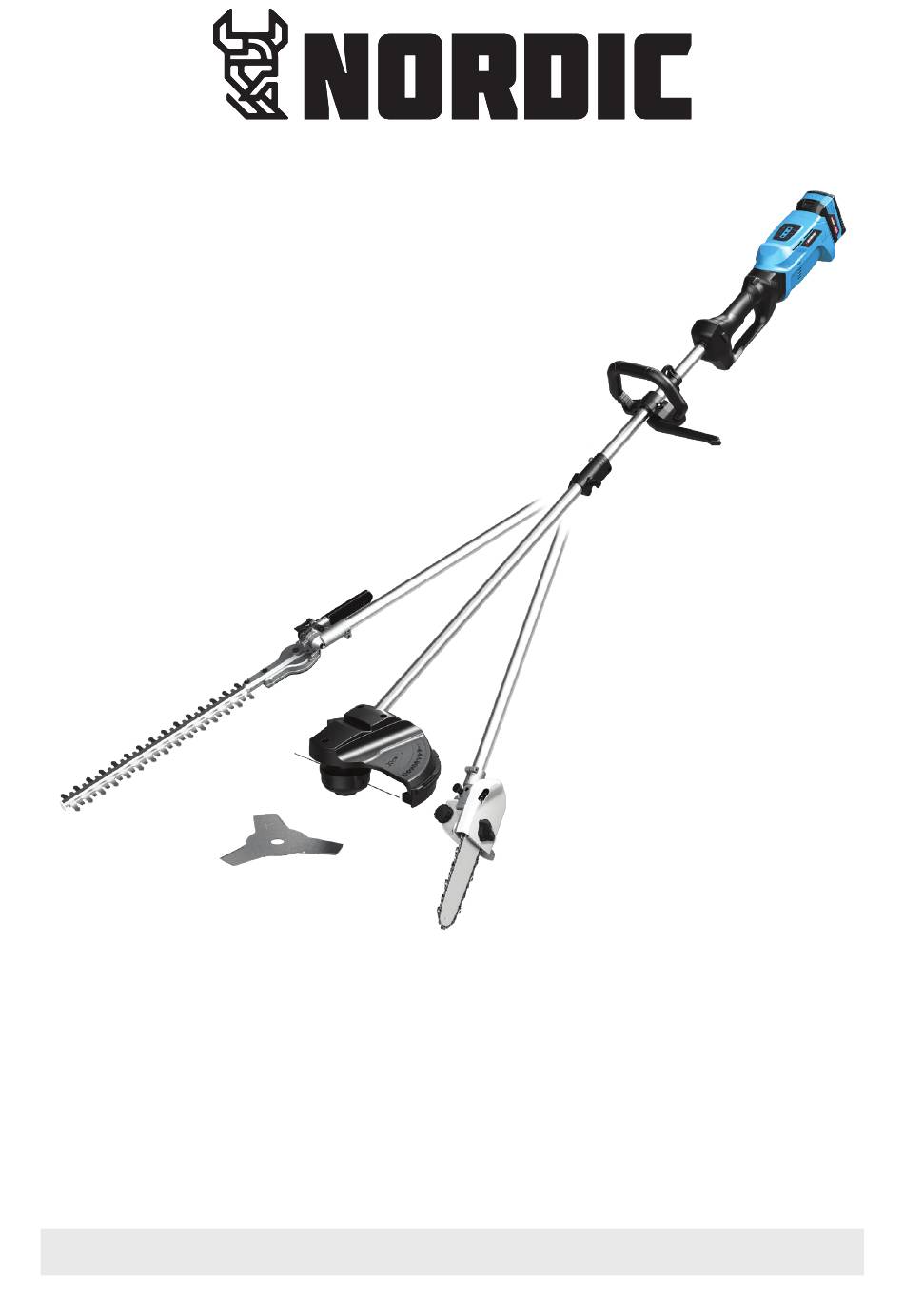

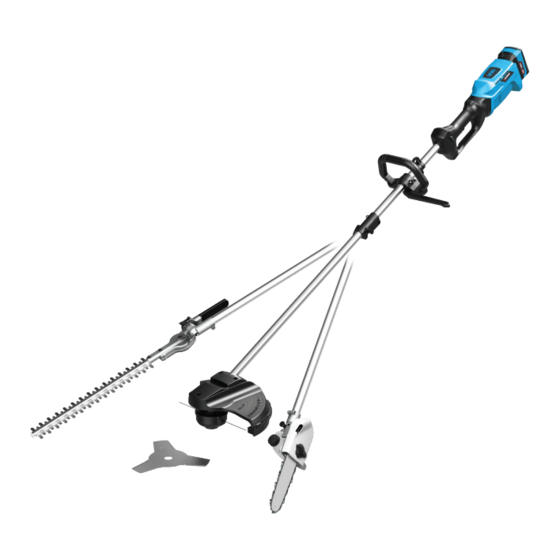

  • Page 1 18V BRUSHLESS 4-IN-1 OPERATING MANUAL 4IN1-B0118...

  • Page 2: Product Specification

    NORDIC PRODUCT SPECIFICATION Voltage: POLE SAW Rated speed: 4,500rpm Chain Blade: 7.5m/s HEDGE TRIMMER Rated speed: 1,200rpm Trimmer blade: 410mm, Ø 22mm GRASS LINE TRIMMER Rated speed: 7,000rpm Trimmer diameter: Ø 300mm BRUSH CUTTER Rated speed: 7,000rpm Cutting diameter: Ø 255mm GENERAL POWER TOOL SAFETY WARNINGS Read all safety warnings and instructions.

  • Page 3: Personal Safety

    NORDIC increased risk of an electric shock if your body is earthed. • Do not expose power tools to rain or wet conditions. If water gets inside a power tool, it will increase the risk of an electric shock. •...
  • Page 4 NORDIC affect the operation of the power tool. If it is damaged, the power tool must be repaired. Many accidents are caused by using poorly maintained power tools. • Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to jam and are easier to control.
  • Page 5 NORDIC • Never fit metal cutting lines. • Do not switch the trimmer on in enclosed or poorly ventilated spaces or in the presence of inflammable and/or explosive substances such as liquids, gas and powders. • Do not cross roads or gravel paths with the trimmer still running.
  • Page 6 NORDIC • Wear safety glasses and hearing protection. Further protective equipment for head, hands, legs and feet is recommended. Adequate protective clothing will reduce personal injury by flying debris or accidental contact with the saw chain. • Do not operate a pole saw in a tree. Operation of a pole saw while up in a tree may result in personal injury.

  • Page 7: Additional Safety Instructions For Batteries And Chargers

    NORDIC • Follow sharpening and maintenance best practices for the saw chain. Decreasing the depth gauge height can lead to increased kickback. • The first time user should request an experienced operator in the use of the pole saw and the protective equipment, and should be have the initial practice cutting branches on a saw horse or cradle.
  • Page 8 NORDIC 4.2 CHARGERS • Never attempt to charge non-rechargeable batteries. • Have defective cords replaced immediately. • Do not expose to water. • Do not open the charger. • Do not probe the charger. • The charger is intended for indoor use only.
  • Page 9 NORDIC Do not incinerate battery pack or charger Danger of injury from flying parts! Keep the bystanders away from the danger zone! Protect from the rain. FEATURES KNOW YOUR HEDGE TRIMMER The safe use of this product requires an understanding of the information on the tool and in this operator’s manual as well as a knowledge of the project you are attempting.

  • Page 10: Attaching The Front Handle

    ATTACHING THE FRONT HANDLE NORDIC 1. Führen Sie den Barrier Handgriff in den Top Handgriff ein. ATTACHING THE FRONT HANDLE (FIG 1) Barrier Handgriff Insert the front handle into the top shaft placing the handle in a position that allows for comfortable operation.
  • Page 11 NORDIC SETTING UP THE POLE SAW Setting up the chain tension  The saw chain has very sharp edges. Use for your security Safety gloves. Always pay attention to the chain tension. A loose chain increases the risk of one Counterstrike. If relaxed, the chain could jump out of the guide, resulting in injuries to the operator and be damage to the unit.

  • Page 12: Operation

    NORDIC SETTING THE CUTTING ANGLE Make sure the unit is stopped (remove battery) Lift the locking lever and push the adjustment lever down. Set the angle of the cutting edges to the desired angle and release your hand.  Note: Lubricate the gears for every 4 hours of use.
  • Page 13 NORDIC INTENDED USE: WARNING: The product may throw objects during operation, causing injury to the operator or to  bystanders. Always wear suitable eye protection, boots, gloves and long, heavy trousers while operating the product. INTENDED USE (BRUSH CUTTER): The product fitted with a rotating blade made of metal or plastic intended to cut weed, brush, small trees and similar vegetation.

  • Page 14: Cutting Tips

    NORDIC Press the lock button and then the trigger to start the trimmer. The trimmer will build up speed steadily. Trim grass and weeds in a right-to-left motion with the line parallel to the ground. NOTE: If the machine is overloaded, thermal protection inside the unit will cut off the trimmer. Leave ...
  • Page 15 NORDIC TRI-ARC BLADE The TRI-ARC blade is suited only for pulpy weeds and vines. When the blade becomes dull, it can be turned over to extend the life of the blade. Do not sharpen the TRI-ARC blade. CUTTING TECHNIQUE - BLADE WARNING: •...
  • Page 16 NORDIC Brush Cutter/Line Trimmer Head Rear Handle Hedge Trimmer Trigger Pole Saw Status Indicators Brush Cutter Blade Battery release button Line Trimmer Line Battery pack (not included) PLEASE NOTE: Battery & Charger sold separately. Front Handle...
