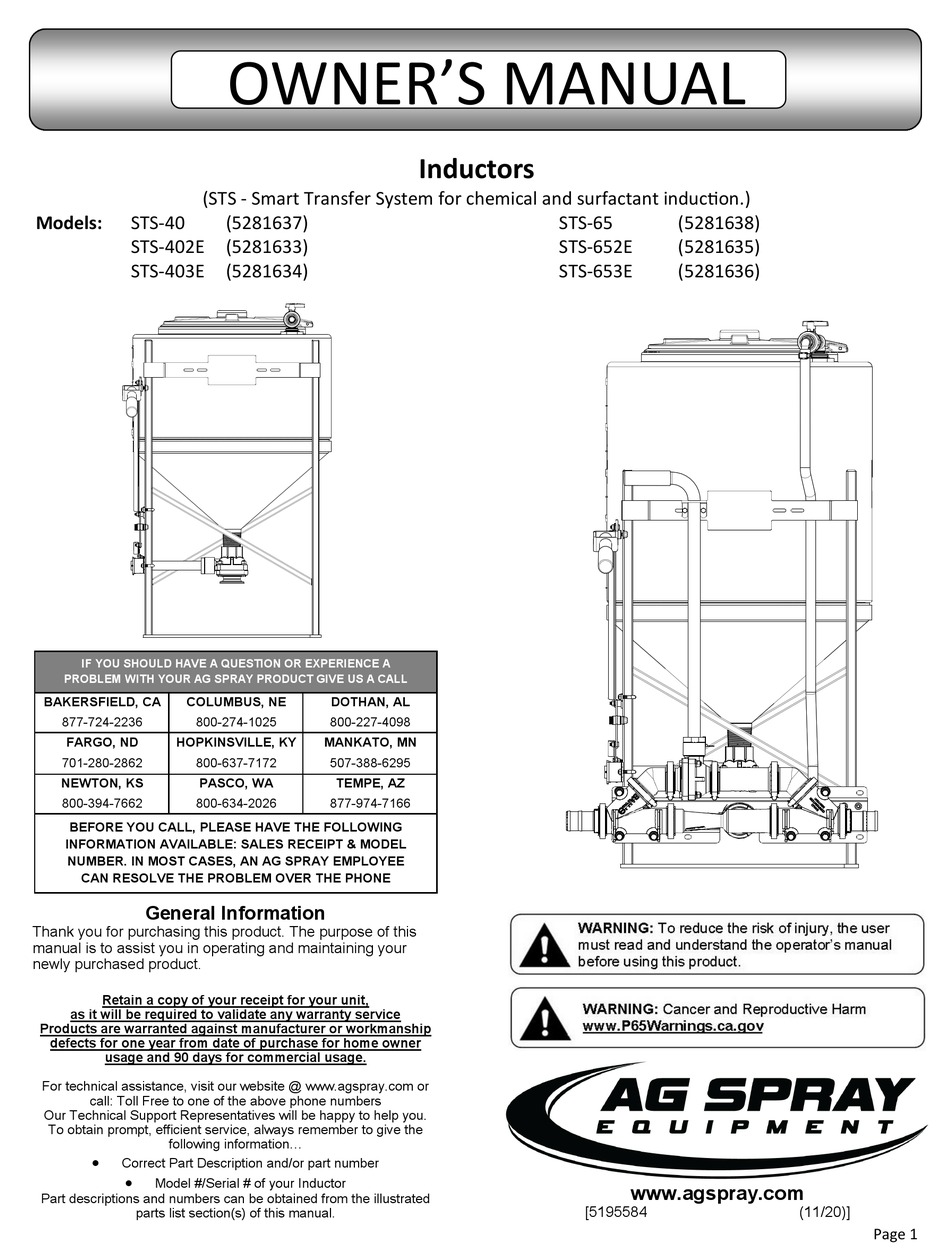

AG SPRAY STS-40 Owner's Manual

Inductors
Hide thumbs

Advertisement

Quick Links

Download this manual
(STS - Smart Transfer System for chemical and surfactant induction.)
Models:
STS-40
STS-402E
STS-403E
IF YOU SHOULD HAVE A QUESTION OR EXPERIENCE A
PROBLEM WITH YOUR AG SPRAY PRODUCT GIVE US A CALL
BAKERSFIELD, CA
COLUMBUS, NE
877-724-2236
800-274-1025
FARGO, ND
HOPKINSVILLE, KY
701-280-2862
800-637-7172
NEWTON, KS
PASCO, WA
800-394-7662
800-634-2026
BEFORE YOU CALL, PLEASE HAVE THE FOLLOWING
INFORMATION AVAILABLE: SALES RECEIPT & MODEL
NUMBER. IN MOST CASES, AN AG SPRAY EMPLOYEE
CAN RESOLVE THE PROBLEM OVER THE PHONE
General Information
Thank you for purchasing this product. The purpose of this
manual is to assist you in operating and maintaining your
newly purchased product.
Retain a copy of your receipt for your unit,
as it will be required to validate any warranty service
Products are warranted against manufacturer or workmanship
defects for one year from date of purchase for home owner
usage and 90 days for commercial usage.
For technical assistance, visit our website @ www.agspray.com or
call: Toll Free to one of the above phone numbers
Our Technical Support Representatives will be happy to help you.
To obtain prompt, efficient service, always remember to give the
following information...
Correct Part Description and/or part number
Model #/Serial # of your Inductor
Part descriptions and numbers can be obtained from the illustrated
parts list section(s) of this manual.
OWNER'S MANUAL
(5281637)
(5281633)
(5281634)
DOTHAN, AL
800-227-4098
MANKATO, MN
507-388-6295
TEMPE, AZ
877-974-7166
Inductors
STS-65
STS-652E
STS-653E
[5195584
(5281638)
(5281635)
(5281636)
www.agspray.com
(11/20)]
