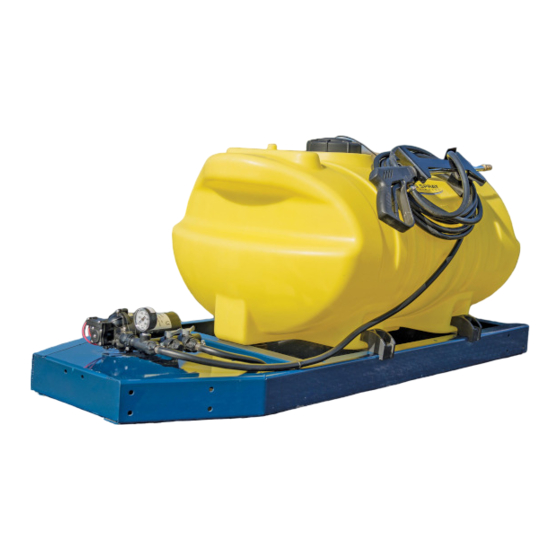

AG SPRAY FSSS-60-12V Owner's Manual

Model: FSSS-60-12V
(5301445-BLK)
(5301445-BLU)
(60 Gallon Skid Sprayer,
Boom-Ready)

60 Gallon Corrosion-Resistant Polyethylene Tank

12 Volt Diaphragm Pump, 4.0 GPM, 45 PSI

Pistol Grip Handgun

15 Ft. Handgun Hose

Optional Trailer & Boom Kits
Available
General Information
Thank you for purchasing this product.
The purpose of this manual is to assist you
in operating and maintaining your skid
sprayer
Retain a copy of your receipt for your unit,
as it will be required to validate any warranty service
Products are warranted against manufacturer or workmanship
defects for one year from date of purchase for home owner
OWNER'S MANUAL
Assembly Instructions
Your sprayer has been mostly assembled at the factory. The
only assembly necessary is to thread the pressure gauge in
place and hook up your battery leads to a fully charged 12
Volt battery. The red wire must be connected to the "hot" lead
and the black wire should be connected to the ground.
Also, the boom mount brackets will need to be attached with
the hardware provided, if you're going to attach a boom.
CAUTION: Always check the vehicle load rating before
using this sprayer. Do not exceed the recommended
rating.
IMPORTANT:
This sprayer comes with an On/Off (shut-off) valve located
on the inlet line, just before the pump. You must make sure
the valve is in the "open" position before using your
sprayer.
