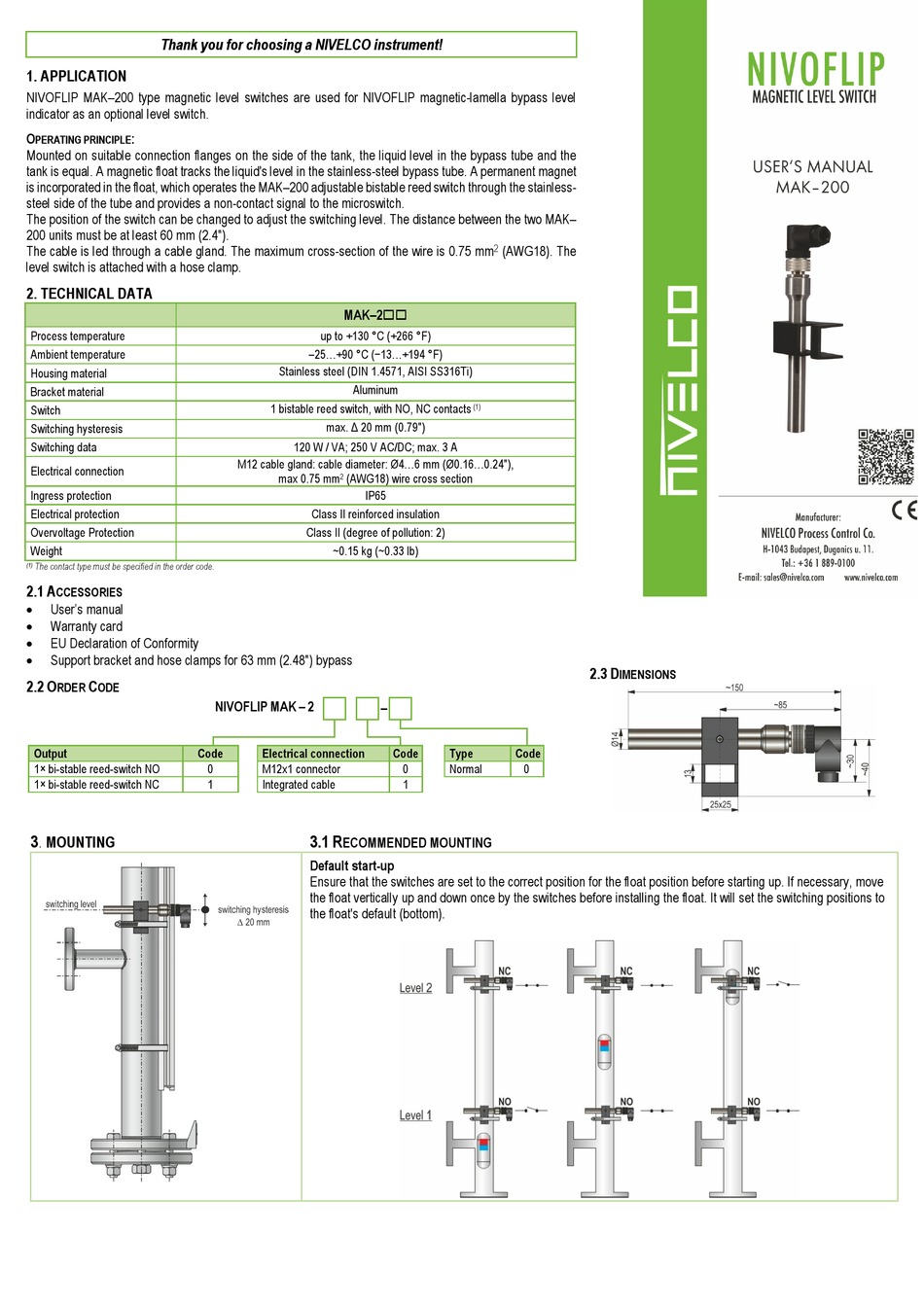

NIVELCO NIVOFLIP MAK-200 User Manual

Thank you for choosing a NIVELCO instrument!

1. APPLICATION

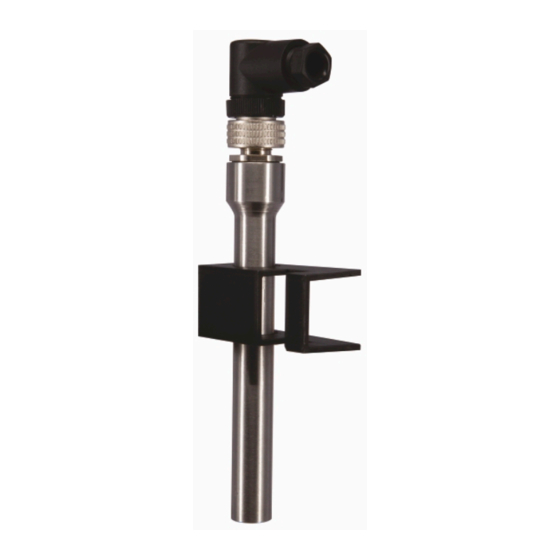

NIVOFLIP MAK–200 type magnetic level switches are used for NIVOFLIP magnetic-lamella bypass level
indicator as an optional level switch.
O :
PERATING PRINCIPLE
Mounted on suitable connection flanges on the side of the tank, the liquid level in the bypass tube and the
tank is equal. A magnetic float tracks the liquid's level in the stainless-steel bypass tube. A permanent magnet
is incorporated in the float, which operates the MAK–200 adjustable bistable reed switch through the stainless-
steel side of the tube and provides a non-contact signal to the microswitch.
The position of the switch can be changed to adjust the switching level. The distance between the two MAK–
200 units must be at least 60 mm (2.4").
The cable is led through a cable gland. The maximum cross-section of the wire is 0.75 mm
level switch is attached with a hose clamp.

2. TECHNICAL DATA

Process temperature
Ambient temperature
Housing material
Bracket material
Switch
Switching hysteresis
Switching data
Electrical connection
Ingress protection
Electrical protection
Overvoltage Protection
Weight
(1) The contact type must be specified in the order code.
2.1 A
CCESSORIES

User's manual

Warranty card

EU Declaration of Conformity

Support bracket and hose clamps for 63 mm (2.48") bypass
2.2 O C
RDER ODE
Output Code
1× bi-stable reed-switch NO
1× bi-stable reed-switch NC
3.

MOUNTING

MAK–2
up to +130 °C (+266 °F)
–25...+90 °C (−13...+194 °F)
Stainless steel (DIN 1.4571, AISI SS316Ti)
Aluminum
1 bistable reed switch, with NO, NC contacts
max. Δ 20 mm (0.79")
120 W / VA; 250 V AC/DC; max. 3 A
M12 cable gland: cable diameter: Ø4...6 mm (Ø0.16...0.24"),
max 0.75 mm (AWG18) wire cross section
2
IP65
Class II reinforced insulation
Class II (degree of pollution: 2)
~0.15 kg (~0.33 lb)
NIVOFLIP MAK – 2
–
Electrical connection
0 M12x1 connector
1 Integrated cable
3.1 R
ECOMMENDED MOUNTING
Default start-up
Ensure that the switches are set to the correct position for the float position before starting up. If necessary, move
the float vertically up and down once by the switches before installing the float. It will set the switching positions to
the float's default (bottom).
2 (AWG18). The
(1)
Code Type Code
0 Normal 0
1
2.3 D
IMENSIONS
