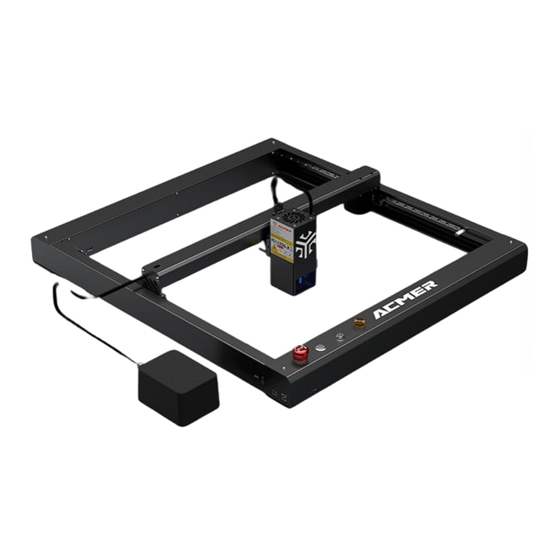

ACMER P2 User Manual

Laser engraver
Hide thumbs Also See for P2:

Advertisement

Table of Contents

https://www.facebook.com/groups/1614455505653986

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P2 and is the answer not in the manual?

Questions and answers

Григорий
April 21, 2025

не выключается компрессор

0
1 comments:
Mr. Anderson
May 10, 2025

The ACMER P2 compressor may not turn off because the air assist control in LightBurn is set to use the M8 command, which might be non-functional for this machine. It may require using the M7 command instead. If the incorrect G-code command is used, the compressor may stay on or not operate as expected.

This answer is automatically generated

0
анатолий
January 25, 2025

как сфокусировать луч модуля акмер 20 вт

0
1 comments:
Mr. Anderson
February 10, 2025

The ACMER P2 20W laser module has a focus distance of 5mm ± 1mm from the housing surface. To focus the beam, position the laser module 5mm away from the material surface. Ensure the focal spot size of 0.06 x 0.08 mm is achieved for optimal precision.

This answer is automatically generated

0
Олег
January 24, 2025

Здравствуйте. Подскажите размер фокусной линзы Р2 10вт. И где купить?

0
1 comments:
Mr. Anderson
May 14, 2025

The spot size (focal lens size) for the ACMER P2 10W is 0.06*0.08 mm.

This answer is automatically generated

0
Натали
July 26, 2025

Сбросили все настройки,как переустановить?

0
Николай
June 23, 2025

Здравствуйте! На станке acmer p 2 20 w столкнулся проблемой. При включении станка начинает звучать звуковой сигнал (3 длинных, 1 короткий). В чём может быть причина?

0
руслан
March 2, 2025

пару дней назат у вас купил у вас станок на валберис не работает охлаждающий вентилятор лазерного блока на acmer p2 33w и лазер потоянно горит 70 тысяч отдал ептвою мать я точно в суд на вас подам это что за грабеж сред бело дня ? yна валберис покупал

0
руслан
March 2, 2025

не работает охлаждающий вентилятор лазерного блока на acmer p2 33w

0

Related Manuals for ACMER P2

Summary of Contents for ACMER P2

  • Page 1 https://www.facebook.com/groups/1614455505653986...
  • Page 2 ACMER P2 LASER ENGRAVER USER MANUAL V1.0 Acmer 3D Electronlc Technology Co., Ltd.

  • Page 3: Table Of Contents

    Thank you! Dear friends, thank you for purchasing ACMER P2 Laser Engraver. We appre- ciate your approval of our products and services, and we sincerely hope that you will enjoy this product and that it will bring you joy. If you have any problem in using it, please feel free to let us know and we will do our best to help you.

  • Page 4: Disclaimer And Safety Guidelines

    2.Disclaimer and Safety Guidelines Laser engraving machine will produce laser light, it is strictly prohibited to point the laser at any living body. When using the laser engraving machine, the operator and the personnel in its vicinity must wear laser safety glasses, please do not operate the laser without wearing protective glasses (laser goggles)! Minors (especially children over 14 years old) must use the machine under the supervision of an adult throughout!

  • Page 5: Machine Parameters

    3.Machine Parameters Machine Size 600*650*170mm Engraving Size 420*400mm Machine Weight 6.5kg Focal Length Laser Power 10W/20W/30W Laser Wavelength 450±5nm Laser Type Diode Laser Power Input DC 24V Communication Method USB / APP Compatible Software LaserGRBL / Lightburn Compatible Systems MAC, Windows wood, bamboo, paper, plastic, leather, PCB board, aluminium Engraving Material oxide, non-reflective coating and lacquered metal, ceramic...

  • Page 6: Machine Description

    4.Machine Description Front Component Air Pump Air Pipe Left Component Rear Component Right Component X-axis Assembly Laser Module...

  • Page 7: Machine List

    5.Machine List Frame Front component x 1 Rear component x 1 Left component x 1 Right component x 1 X-axis assembly x 1 Accessories Laser Module x1 Power Adapter x1 Air Pump x 1 Belts x2 Machine Key x1 Laser Goggle x1 Card Reader+TF Card x1 USB Cable x1 Pipe Connector x1...

  • Page 8: Installation Steps

    6.Installation Steps 6.1 You will need to prepare the following sections. Front Component x 1 Rear Component x 1 Left Component x 1 Right component x 1 M3*6 Screw x 12 6.1.1 Install the box in the direction shown and place it on a horizontal table.
  • Page 9 6.1.2 Use M3*6 socket head cap screws to fix the profile from the top. (Note: There is no need to lock the screws in this step, lock the screws again in step 6.3.3.) 6.1.3 Insert the right assembly to the rear assembly in the same way and then also secure it with 3 M3X6 screws.
  • Page 10 6.2 You will need to prepare the following sections. X-axis assembly x 1 M4*8 Screwx4 6.2.1 Secure the X-axis assembly to the gantry frame using four M4*8 screws from each side.
  • Page 11 6.3 You will need to prepare the following sections. Belt x2 Laser Module x 1 6.3.1 Install the left and right belts. 6.3.2 Use an Allen wrench to adjust the belt tightness. Note: The left and right belt tightness needs to be consistent.
  • Page 12 6.3.3 Slowly move the X-axis assembly back and forth to ensure smooth movement in the Y-axis direction and then lock the previously unlocked screws. 6.3.4 Remove the laser module, slide it into the slide slot, and tighten the side screws to secure it.
  • Page 13 6.4 Connecting wires...

  • Page 14: Port And Key Function Introduction

    7.Port and Key Function Introduction 1. Power socket: input DC 24V power supply 2. USB port: communicate with computer through USB data 3. Emergency stop switch: press the emergency stop button, the machine stops working; rotate the emergency stop button clockwise, the machine resets 4.

  • Page 15: Software Tutorials

    8.Software Tutorials ACMER laser engraver supports the most popular engraving software LaserGRBL and Lightburn. LaserGRBL is an open source, easy to use and powerful software that is perfect for novice users to use, but LaserGRBL only supports Windows systems (Win XP/Win 7/ Win 8/XP/ Win 10).
  • Page 16 8.1.3 Start engraving ① ② ③ ① Click the "Open File" button. ② Select the engraving file. ③ Click "OPEN". ④ ⑤ ⑥ ⑦ ④ Brightness, contrast, black and white limit adjustment. ⑤ Select the engraving mode. ⑥ Adjust the engraving quality (recommended quality setting is about 10). ⑦...
  • Page 17 ⑧ ⑨ ⑩ ⑧ Select the engraving speed (suggest to refer to the engraving parameter table). ⑨ Select "Laser Mode", "M4" for engraving and "M3" for cutting. ⑩ Set the engraving power, 1000 is the maximum power. Set the engraving size. Click "Create".
  • Page 18 8.2 Lightburn Tutorial 8.2.1 Connecting the machine ① Click "Devices", and then click "Create Manually". ② Select "GRBL" and click "NEXT". ③ Select "Serial/USB", and then click "NEXT".
  • Page 19 ④ Set the engraving range of the machine, and then click "NEXT". ⑤ Select the origin of the machine, uncheck the box to return to zero automatically, and then click "NEXT". ⑥ Click "Finish".
  • Page 20 ⑦ Select "GRBL" and click "OK" after the meal. ⑧ Return to the main interface and select the correct port to complete the connection. 8.2.2 Software setup ① Click "Setting" and set the speed unit to "mm/min".
  • Page 21 ② Click "Device Settings" and set the S-value max to "1000". ③ Set the machine engraving starting point as "Current Position", and set "Job Origin" to the lower left corner.
  • Page 22 8.3.3 Start engraving ① ② ① Click "OPEN" to select the engraving file. ② Click "Open". ④ ③ ③ Click on the picture area. ④ Adjust the engraving size.
  • Page 23 ⑤ Select "Cuts/Layers". ⑥ Double-click the red box area. ⑥ ⑦ ⑤ ⑧ ⑨ ⑦ Adjust the carving speed and carv- ing power (suggest to refer to the carving parameter table). ⑧ Set the engraving quality. ⑨ Set the engraving mode. ⑩...

  • Page 24: App Tutorials

    We suggest you set the engraving speed below 8000mm/min for better results! 9.1 APP Download Android user Android users can scan the QR code below or directly visit the ACMER website to download. iPhone user Search for "MKSLaser" in App Store.
  • Page 25 Power on the machine, search for ② network name "ACMER_P2_" through the cell phone WIFI function, and enter the password to connect. initial password is: 12345678 Open the mobile app and ③ click the icon in the upper left corner. Enter the IP address, and then ④...
  • Page 26 ● This function can be used to control the machine movement and also to bring the machine back into position. ● Get the material provided by ACMER for you to engrave. ● You can store the programs generated by the...
  • Page 27 ② Select the engraving pattern. ③ Select the engraving mode. ④ Adjust the engraving size and set the engraving parameters, then click the bottom right button to send the data. We suggest you set the engraving speed below 8000mm/min for better results!
  • Page 28 ⑤ Wait for sending to complete. ⑥ Click "Confirm" to start the engraving process. ⑦ Wait for the carving to be com- pleted.

  • Page 29: Air Assist

    10.Air Assist 10.1 Connections 10.1.1 Connect the air pipe. 10.1.2 Connect the air pump conversion wire.
  • Page 30 10.2 Software Control 10.2.1 Lightburn Control ① Check the "M7" option. ② You can control the air pump directly from the "Cuts/Layers" window by "un- checking/checking" it.
  • Page 31 10.2.2 LaserGRBL Control ①Move your mouse to the blank area at the bottom right of the interface, then right-click and select "import custom buttons". ②Select the "CustomButtons" file from the "Software" folder in the TF card. ③The air pump is controlled by clicking the "Air Pump" button.

  • Page 32: Faq

    11.FAQ Q1. Engraving machine can not cut through the material 1. Check if the laser module wiring is loose. 2. Confirm whether there is correct focus, which can be assisted by focusing the gate for focusing. 20W/30W 3. Ensure that the engraving plane is flat and free of concavity. 4.
  • Page 33 Q3. Noise during the operation of the machine 1. First of all, when the machine is running, the cooling fan of the laser set itself will have a certain noise. 2. Check whether the table is flat. 3. Check whether the machine screws are loose or fall off. 4.
  • Page 34 Q7.The machine stops engraving halfway through its work. 1. Check whether the machine power supply is properly connected. 2. Check if there is any abnormal obstruction to the limit switch, at this time the command bar will have the following prompt. 3.

  • Page 35: After Sale

    1.2.1. Within 7 days of the delivery date, ACMER will replace any parts free of charge including shipping fees. 1.2.2. After 7 days of the delivery date, ACMER will replace any parts free of charge BUT the customer will be responsible for shipping fees.
  • Page 36 2.1.3. ACMER will work with the customer on replacing the parts in the claim. For Missing Parts, refer to section 1.2, the customer shall fill out a Service Ticket (Report a Prob- lem / Missing Parts.) For Damaged Hardware Parts, refer to section 1.2, the customer shall take photos or video and submit them when filling out a Service Ticket (Report a Problem / Damaged Hardware Parts.)
