Page 2: Connecting Device

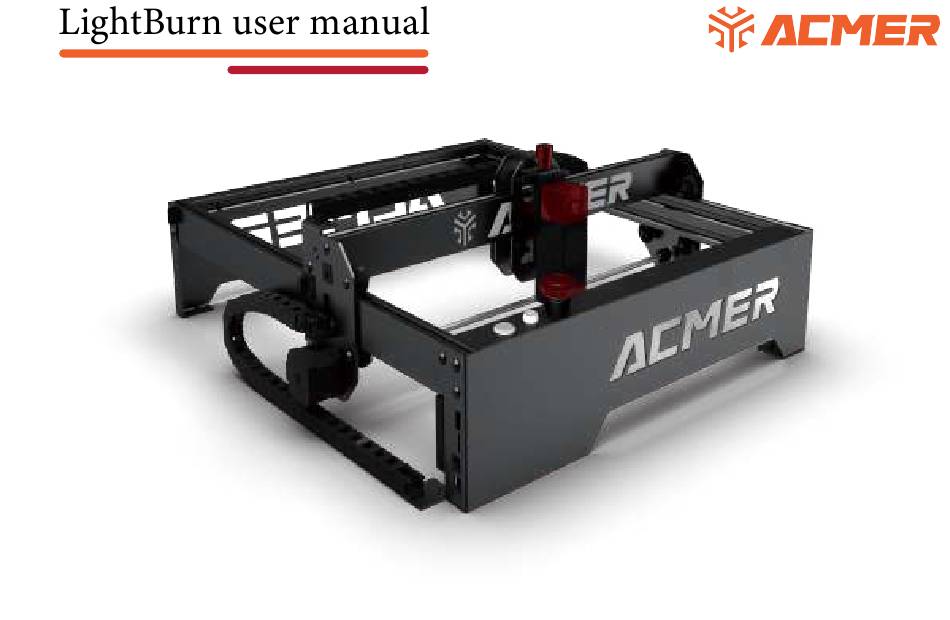

Service Ticket on our Support page. Install LightBurn Create Device Thank you for purchasing ACMER Laser Engraving Cutting Machine. We are dedicated to producing low-price, high-quality Laser Software introduction and Engraving Cutting Machine and hope basic parameter setting you have as much fun using it as we did create it. - Page 3 Secondly, lightburn gives new users a 30 day trial period. If you need to use it continuously, you need to pay for it. Lastly, if you encounter any problems in using lightburn, you can get technical support from our community.
- Page 4 2.1 Obtain the LightBurn software installation package 2.1.1 Get the software installation package 2.1.2Get the software installation package from the official website from the official website https://lightburnsoftware.com/pages/ trial-version-try-before-you-buy The attached memory card has a pre downloaded installation package. The version may lag. You can manually update to the latest version after installation.
-
Page 5: Installation
2.2 installation Double click the install program to install the software,This version is not necessarily the latest version. Check create desktop icon Check the last item click Next click Next click Finish... - Page 6 3.1 creat device 3.1.1 Normally, when you open the software for the first time, you will be prompted to create a device. 3.1.2 If there is no prompt or the dialog box is closed accidentally, you can modify it here...
- Page 7 3.2 creat device choose Create Manually choose GRBL,then click Next choose Serial/USB Name your device and set your Choose Rear Left as the origin of Confirm your equipment parameters engraving range your device and click finish...
-
Page 8: Software Introduction
4.1 Software introduction 1.Function bar: Here you can open or save the software, adjust the parameters of the software, including the language, and the basic parameter settings of your device. 2.Drawing tool bar: Here, you can use the graphics 4 4 4 4 4 tools of the software to create the graphics or text you want. -
Page 9: Basic Parameter Setting
4.2 basic parameter setting Functin bar: The parameters of these two items can be set as shown in the figure, and can be adjusted according to special needs. It should be noted that the parameters in the dashed box cannot be changed. -
Page 10: Connect Usb
5.1 Connect USB If the connection is successful, the control bar window will Connect the computer prompt ‘OK’. 5.2 Software Settings Select the right port and the right machine Connect the machine Tips: Before connecting the machine, please confirm that your computer has installed the CH340 driver. If not, please install the driver according to the operating instructions in the manual. -
Page 11: Load Image
6.1 Load image Choose ‘File’--> ‘Import’ to load your picture. Tips: Make sure your picture is within the range of 400mm* 410mm and cannot exceed the solid wireframe. You can adjust the size and position by entering values or scaling the picture. -
Page 12: Adjust Image
6.2 Adjust image Right click the image and select Adjust Image. In the pop-up dialog box, adjust the brightness, contrast and other parameters of the image to ensure a good carving result. - Page 13 6.3 set engraving parameters Set engraving speed and power. Set DPI value. Set Sculpt Mode. Double click the image line layer in the line‘cuts/layers’ window, and adjust the corresponding parameters in the order shown in the figure in the pop-up dialog box.
- Page 14 1. Switch from ‘Cut / Layers’ window to ‘Move’ window,. 2. Move the laser head to the appropriate position by button or manually. 3. Set engraving origin point. 4. Click Frame to let the engraving machine simulate the engraving range to ensure that the laser head can carve normally within the engraving range.
