Summary of Contents for Mikster INDU-50

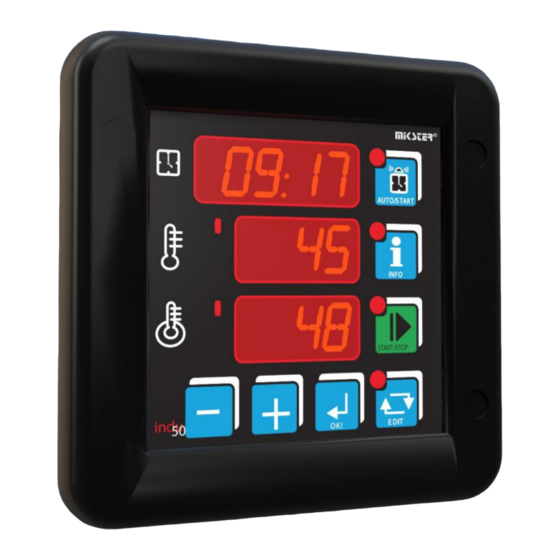

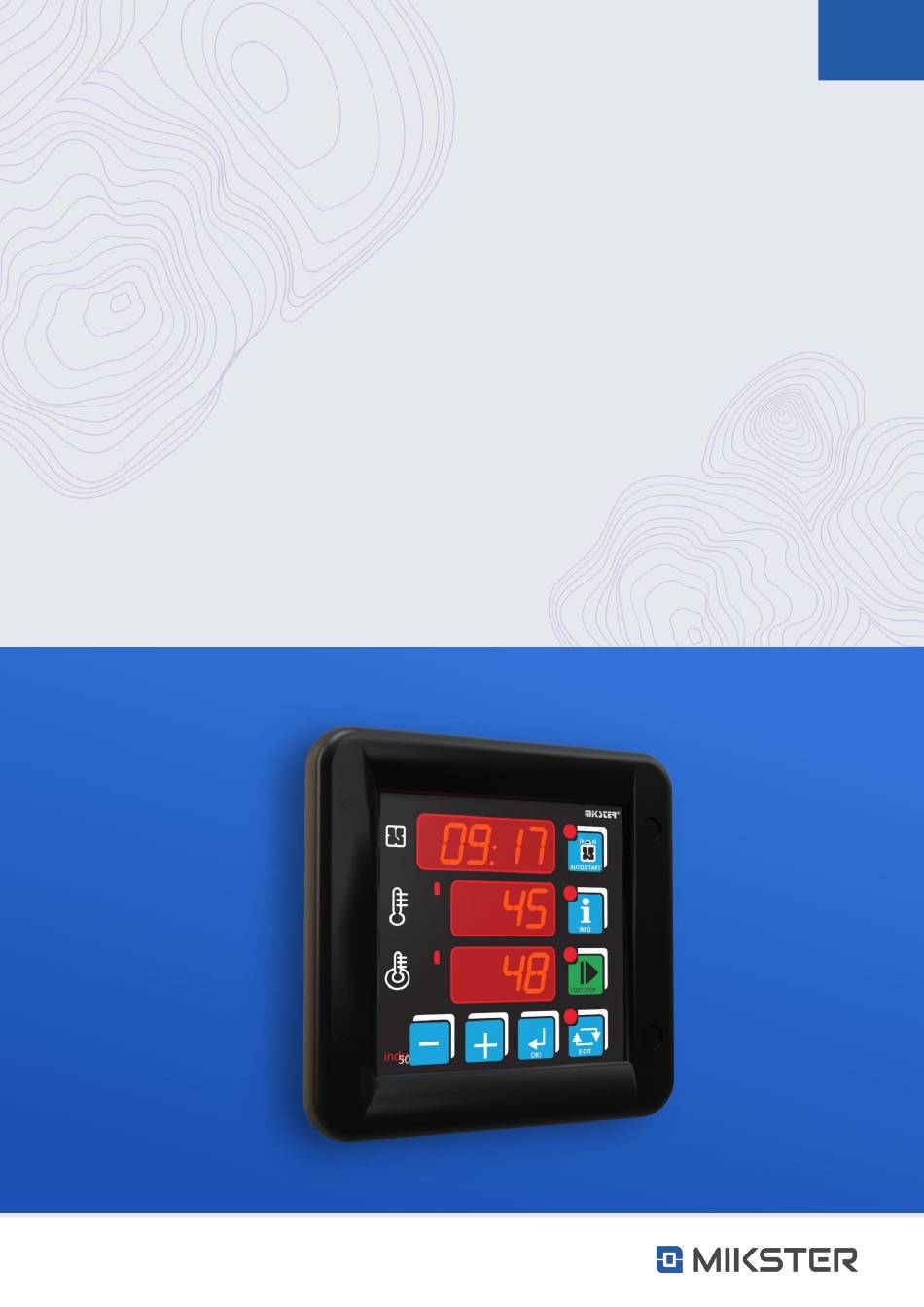

- Page 1 2023.03.21 INDU-50 CONTROLLER USER'S MANUAL v1.95(86)EN www.mikster.eu...
-
Page 2: Table Of Contents
Controller user's manual INDU-50 v1.95(86)EN Table of contents Introduction ..................................3 Elements .................................... 4 Assembly .................................... 5 Start up ....................................6 Operator panel ................................... 6 Operation description ................................. 7 6.1. EDIT mode – setpoint changing ............................7 6.2. INFO mode ..................................7 6.3. -
Page 3: Introduction
Introduction Thank you for choosing and purchasing the Industrial Microprocessor Controller INDU-50. We hope that You will find our product to be reliable and easily operated. Please read carefully the User’s manual. This will enable You to obtain the best effects in using the system and to prolong the service life of devices. -
Page 4: Elements
Controller user's manual INDU-50 v1.95(86)EN Elements The UNDU-50 consists od the following elements: Industrial Microprocessor Controller INDU-50 – 1 item, Clamping elements – 4 item, Mask elements – 6 item, Clamping screw – 10 item, CD with Loggisoft LT software, User’s manual,... -
Page 5: Assembly
Controller user's manual INDU-50 v1.95(86)EN Assembly ATTENTION! Silicon washer should be lubricated by technical vaseline. Be aware that the washer should accurately adhere to the assembling surface. ATTENTION! (1) Before connecting, verify the supply voltage on the device label. Depending on the version: 230V AC, 110-230V AC, 24V AC, 24V AC/DC... -
Page 6: Start Up
Controller user's manual INDU-50 v1.95(86)EN Start up After connecting the temperature sensors (standard: PT-100) and power supply, the controller is switched on automatically. After displaying a “welcome” text the current hour, minute, channel 1 and channel 2 measurements are displayed consecutively. -
Page 7: Operation Description
Controller user's manual INDU-50 v1.95(86)EN Operation description 6.1. EDIT mode – setpoint changing To get into the setpoint edit mode press the EDIT key. When the edit mode is activated, the EDIT key flashes You can change parameters on the display by using the keyboard... -
Page 8: Autostart Mode
Controller user's manual INDU-50 v1.95(86)EN 6.3. AUTOSTART mode Press the key to edit parameters for this mode. AUTOSTART mode can be activated in two ways: At specified time (hour and minute) and daily delay, if any (F47 SETUP – HMD). -
Page 9: Service Functions Accessible For The User
Controller user's manual INDU-50 v1.95(86)EN 6.5. Service functions accessible for the user Cell no Description Real time clock setting press for the next parameter Access code changing to the user’s function Range 0..999 Value 0 – access code off Information on software version Keyboard click ON/OFF To get into the user’s setting press and hold down the key... -
Page 10: Pasterisation
Controller user's manual INDU-50 v1.95(86)EN Pasterisation Due to frequent application of INDU50 controller as a unit controlling the process of thermal food processing, its properties were widened by the possibility of counting the pasterisation number according to the aritmetric variant of the general method. -
Page 11: Governor Diagrams
Controller user's manual INDU-50 v1.95(86)EN Governor diagrams Governor – simple histeresis – heating Governor – reversed histeresis – refrigeration Type 0* Type 1* Tz – temperature setpoint Tz – temperature setpoint t – time t – time Governor PID Governor – simple histeresis – algorithm of temperature... -
Page 12: Selection Of Governor Setup Pid
Controller user's manual INDU-50 v1.95(86)EN Governor relative Type 4 Governor dedicated for jacket temperature control in parboilers. Jacket temperature control is carried out on the basis of the relationship between the preset and the read-out water temperature. ATTENTION! This type of governor is only available on channel 3 (cell setting SF31); controller configuration parameters: SF87,103, SF104, SF105. -
Page 13: Controller Setup
Controller user's manual INDU-50 v1.95(86)EN Controller setup To get into the SETUP menu, press and hold down the key and then press the key. After entering the access code (if included in Setup cell SF 74) you can change the controller parameters. - Page 14 Controller user's manual INDU-50 v1.95(86)EN Default Range Description User value settings SF16 200°C -99,0..999°C Value corresponding to 20 mA for channel 3 4..20 mA input SF17 0,0°C -20,0..20°C Temperature readout adjustment for channel 1 SF18 0,0°C -20,0..20,0°C Temperature readout adjustment for channel 2 SF19 0,0°C...
- Page 15 Controller user's manual INDU-50 v1.95(86)EN Default Range Description User value settings SF39 20°C 0..200°C Regulator activation temperature (Tza) for channel 1 For “setpoint ramping” algorithm SF40 20°C 0..200°C Regulator activation temperature (Tza) for channel 2 For “setpoint ramping” algorithm SF41 20°C...
- Page 16 Controller user's manual INDU-50 v1.95(86)EN Default Range Description User value settings SF63 On / Off Maximum temperature exceeded alarm activation for channel 1 SF64 On / Off Maximum temperature exceeded alarm activation for channel 2 SF65 On / Off Maximum temperature exceeded alarm activation for channel 3...
- Page 17 Controller user's manual INDU-50 v1.95(86)EN SF80 0..5 Selection of sterilisation coefficients table for: 0 – coefficient z=4,8 K 1 – coefficient z=7,78 K 2 – coefficient z=10 K 3 – coefficient z=15 K 4 – coefficient z=25 K ...
-
Page 18: Relays
Controller user's manual INDU-50 v1.95(86)EN Relays REL 1 Relay output of governor 1 REL 2 Relay output of governor 2 REL 3 Relay output of governor 3 REL 4 Switched on in START mode REL 5 Alarm Example of application Figure 1 Pic. -
Page 19: Cycle End Conditions
Controller user's manual INDU-50 v1.95(86)EN Cycle end conditions Cycle end conditions (cell Setup 45) SF45=0 Timeout (time elapsed) SF45=1 Cycle ends when temperature setpoint is exceeded in channel 1 (boiler) SF45=2 Cycle ends when temperature setpoint is exceeded in channel 2 (bar) -
Page 20: The Most Frequently Asked Questions (Faq)
Controller user's manual INDU-50 v1.95(86)EN The most frequently asked questions (FAQ) What to do when the governor does not switch on? Check the power supply of the governor. The governor does not record the data after the end of the process. -
Page 21: Technical Data
Controller user's manual INDU-50 v1.95(86)EN Technical data Power supply: 24V AC/DC Imax.140mA 110/230VAC Imax.30mA Display: 3x LED 0,5" Red Keyboard: micro switch buttons Connectors: plug-in terminal blocks Temperature measuring range: – 99°C ÷ 600°C Temperature measurement 0,1°C od – 9,9°C to 99,9°C resolution: 1°C in other ranges... -
Page 22: Features
Controller user's manual INDU-50 v1.95(86)EN Dimensions: external 134x134x65mm (W x H x D) mounting 90x90mm (W x H) Fixing: screwed 4 mounting holes (front) or 4 mounting clips (rear) Weight: 500 g (net) IP rating: 65 (front) 20 (rear) Operating conditions: Temperature: 0°C ÷... -
Page 23: Transmission Parameters
Controller user's manual INDU-50 v1.95(86)EN *from the front IP 65 **the front - the resistance to strong cleaning agents used in the food industry Transmission parameters Transmission characteristics Interface: RS-485 Transmission protocol: MODBUS RTU Transmission parameters: 1 start bit, 8 data bits, 2 stop bits, without parity check ... - Page 24 Controller user's manual INDU-50 v1.95(86)EN CUSTOMERS WHO TRUST OUR QUALITY ARE ALL OVER THE WORLD EUROPE Hungary Uzbekistan Bahamas Germany Greece Azerbaijan CENTRAL AMERICA France Croatia Kazachstan Belize United Kingdom Romania Turkmenistan SOUTH AMERICA Sweden Portugal Vietnam Bolivia Switzerland Bulgaria...
