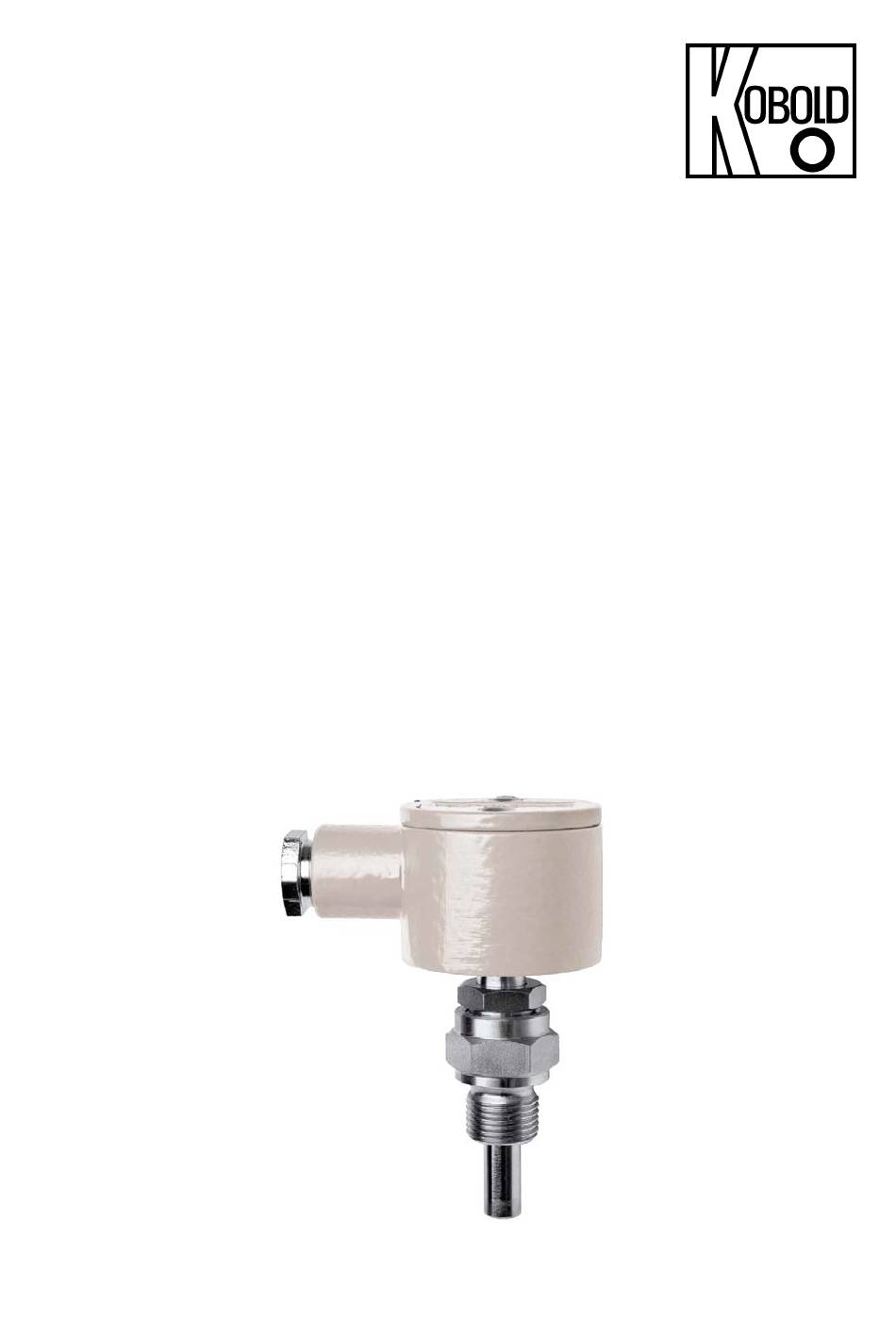

- Page 1 Operating Instructions Resistance Thermometers for Harsh Operational and Ambient Conditions Model: TNK...
-
Page 2: Table Of Contents
EU Declaration of Conformance ..............9 UK Declaration of Conformity ..............10 Manufactured and sold by: Kobold Messring GmbH Nordring 22-24 D-65719 Hofheim Tel.: +49 (0)6192-2990 Fax: +49(0)6192-23398 Email: info.de@kobold.com Internet: www.kobold.com Page 2 TNK K09/0323... -
Page 3: Note
2. Note into operation. Follow the instructions precisely as described herein. The instruction manuals on our website www.kobold.com are always for currently manufactured version of our products. Due to technical changes, the instruction manuals available online may not always correspond to the product version you have purchased. -
Page 4: Operation
5. Operation Resistance thermometers are electric temperature measuring transducers which, when used in conjunction with the corresponding evaluation devices, display and regulate temperatures. They contain temperature-dependent measurement resistors that are housed in one of the valves adapted for this purpose. TNK resistance thermometers are specially designed for use in shipbuilding and mechanical engineering and meet the high demands for robustness, reliability, impact resistance, shock and vibration resistance in accordance with the... -
Page 5: Mechanical Connection
6. Mechanical connection Before installation: Remove all transportation locks and ensure that there are no packaging materials left in the unit. Ensure that the permissible max. operating pressure and operating temperature for the unit are not being exceeded (see technical data). During installation: ... -
Page 6: Electrical Connection
7. Electrical connection Warning! Ensure that the voltage values in your system correspond to the voltage values for the measurement unit. The electrical connection should only be carried out by competent staff with the relevant expertise. Choose a suitable cable for the electrical connection: Version TNK-...P: Cable diameter 5-10 mm Version TNK-...M:... -
Page 7: Maintenance
The measurement inserts are interchangeable with the resistance sensors. 9. Technical Information Operating instructions, data sheet, approvals and further information via the QR code on the device or via www.kobold.com 10. Order Codes Operating instructions, data sheet, approvals and further information via the QR code on the device or via www.kobold.com... -
Page 8: Disposal
12. Disposal Note! Avoid environmental damage caused by media-contaminated parts Dispose of the device and packaging in an environmentally friendly manner Comply with applicable national and international disposal regulations and environmental regulations. Batteries Batteries containing pollutants are marked with a sign consisting of a crossed-out garbage can and the chemical symbol (Cd, Hg, Li or Pb) of the heavy metal that is decisive for the classification as containing pollutants: 1. -
Page 9: Eu Declaration Of Conformance
13. EU Declaration of Conformance We, KOBOLD Messring GmbH, Hofheim-Ts, Germany, declare under our sole responsibility that the product: Resistance Thermometer Model: TNK-... to which this declaration relates is in conformity with the standards noted below: EN IEC 63000:2018 Technical documentation for the assessment of electrical... -
Page 10: Declaration Of Conformity
14. UK Declaration of Conformity We, KOBOLD Messring GmbH, Hofheim-Ts, Germany, declare under our sole responsibility that the product: Resistance Thermometer Model: TNK-... to which this declaration relates is in conformity with the standards noted below: BS EN IEC 63000:2018 Technical documentation for the assessment of electrical and electronic products with respect to the restriction of hazardous substances.
