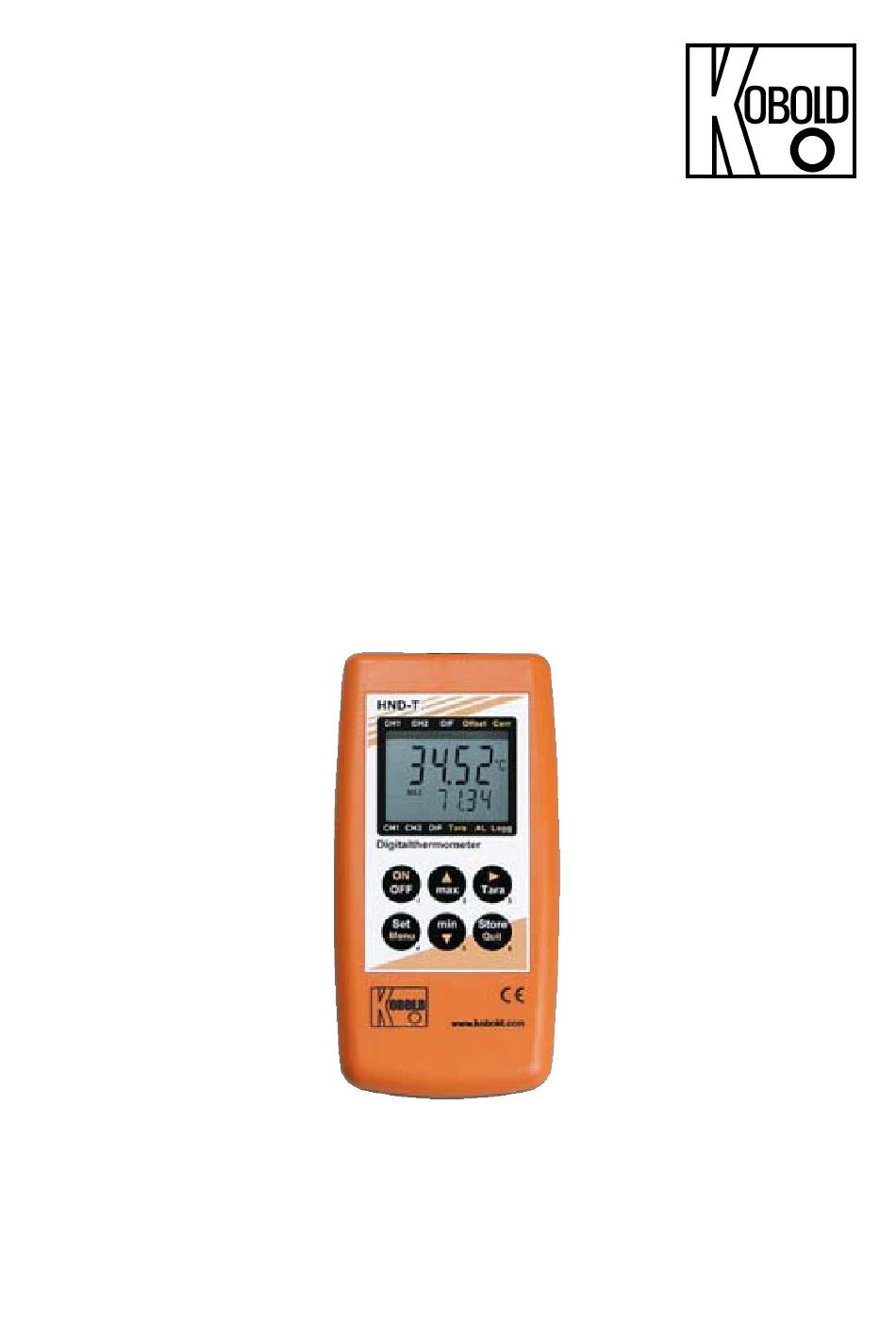

- Page 1 Operating Instructions Precision Hand-Held Thermometer Model: HND-T205...
-
Page 2: Table Of Contents
PT100-measuring probe Class B ............20 10.2 Accessories ..................21 EU Declaration of Conformance ..............22 Manufactured and sold by: Kobold Messring GmbH Nordring 22-24 D-65719 Hofheim Tel.: +49(0)6192-2990 Fax: +49(0)6192-23398 E-Mail: info.de@kobold.com Internet: www.kobold.com page 2 HND-T205 K05/0422... -
Page 3: Note
Please read these operating instructions before unpacking and putting the unit into operation. Follow the instructions precisely as described herein. The instruction manuals on our website www.kobold.com are always for currently manufactured version of our products. Due to technical changes, the instruction manuals available online may not always correspond to the product version you have purchased. -
Page 4: Operating Principle
HND-T205 5. Operating Principle The KOBOLD hand-held temperature measuring units HND-T205 are highly precise, compact thermometers for PT100 4-wire-probes that can be used universally. The high degree of accuracy of these housings makes them extremely well suited for all calibration tasks. In conjunction with the appropriate temperature probes, precise measurement results over the entire measuring range can be achieved. -
Page 5: Operation
Warning: Do not use this product as safety or emergency stop device or in any other application where failure of the product could result in personal injury or material damage. Failure to comply with these instructions could result in death or serious injury and material damage HND-T205 K05/0422 page 5... -
Page 6: Connections
Operation as analogue output: Connection via suitable cable. Attention: The output mode has to be configured (p.r.t. 7.6.6) and influences battery life! 2. Probe connection Pt100 4-wire The mains socket is located at the left side of the instrument 7.3 Display Elements page 6 HND-T205 K05/0422... -
Page 7: Pushbuttons
The main menu will be shown Navigation: Choose menu branch (*1) Choose the parameter (*2) Edit the parameter values. (*2) Stores the settings, jumps back to the main menu Stores the sttings, leaves configuration HND-T205 K05/0422 page 7... - Page 8 7.6.8 ...max range Set Logger: Configuration Of Logger Function CYCL Cyclic: logger function ‚cyclic logger‘ * 7.8 Stor Store: logger function ‚individual value logger‘ no logger function 0:01..60:00 Cycle time of cyclic logger [minutes:seconds] * 7.8 page 8 HND-T205 K05/0422...
-
Page 9: Special Functions
Temperature measurements with an user sensor curve beyond the checked temperature range can possibly lead to tremendous errors. Therefore, the sensor curve due to DIN EN 60751 (display: Lin E.751) has to be used for temperature measurements beyond the checked temperature range. HND-T205 K05/0422 page 9... - Page 10 If the display falls below the value set by DAC.0, then the device will apply 0 V to the output In case of an error (Err.1, Err.2, no sensor, etc.) the device will apply slightly above 1 V to the output. page 10 HND-T205 K05/0422...
- Page 11 Logger: read data manual logger read min. display range Note: The measuring and range values read via interface are always in the selected display unit (°C/°F)! HND-T205 K05/0422 page 11...
-
Page 12: Probe Connection
It is also possible to connect a 3- or 2-wire probe to the device. Please observe that in consequence of the cable resistance an increased measuring fault will occur. The connection of this probe should be carried out as follows: page 12 HND-T205 K05/0422... -
Page 13: Operation Of Logger
Stored data sets can be either read out via PC Software HND-Z034, or be viewed in the display directly. Press for 2 seconds: The display will show: Note: “rEAd Logg” only appears, if there are already data stored! If memory is empty, the configuration menu will show. HND-T205 K05/0422 page 13... - Page 14 Note: If you try to switch off the instrument in the cyclic recording operation you will be asked once again if the recording should be stopped. The device can only be switched off after the recording has been stopped! The Auto-Power-Off-function is deactivated during recording! page 14 HND-T205 K05/0422...
-
Page 15: Some Basics Of Precision Temperature Measuring
Besides the standard EN60751 there are some other obsolete or unusual standards on the market. If such a probe has to be connected, the user sensor curve (have a look to the referring chapter) can be used to adjust the instrument! HND-T205 K05/0422 page 15... - Page 16 <= 0.01 °C. Cooling by Evaporation When measuring air temperature, the probe has to be dry. Otherwise, the cold due to the evaporation causes too low measurings. page 16 HND-T205 K05/0422...
-
Page 17: Fault And System Messages
Err.7 7.11 Calibration Services Calibration certificates can be issued by the factory. For this the device has to be sent to the manufacturer. Just the manufacturer can check the factory settings and correct them if necessary. HND-T205 K05/0422 page 17... -
Page 18: Maintenance
10.5 -12 V via jack Current consumption: approx. 1 mA Material: housing made of impact-resistant ABS plastic Protection: IP 65, front Dimensions: 142 x 71 x 26 mm (H x W x D) Weight: approx. 155 g page 18 HND-T205 K05/0422... -
Page 19: Order Codes
Manual: 99 datasets Cyclic: 16.384 datasets Adjustable cycle time: 1s ...1 h Real-time clock: current time with date and year 10. Order Codes Order-no. Housing design Pt 100 input with additional functions HND-T 205 (see techn. data) HND-T205 K05/0422 page 19... -
Page 20: Pt100-Measuring Probe Class B
Like HND-TF04, but with ⅓ DIN Class B approx. 10 sec (±0.1 °C at 0 °C) Immersion probe for liquids and gases, 4- wire -50...+400 °C HND-TF06 Rustproof V4A-tube, approx. 1 m 4-pin approx. 10 sec PVC-cable, 4-pin Mini-DIN-plug page 20 HND-T205 K05/0422... -
Page 21: Accessories
Plug power supply unit (220/240 V, 50/60 Hz), 10.5 V/10 mA HND-Z002* Protective housing bag, nappa leather, with cut-out for round sensor connection HND-Z011 for HND-T105, HND-T205 Protective housing bag, nappa leather, with cut-out for square sensor connection HND-Z013 for HND-T110, HND-T120, HND-T125... -
Page 22: Eu Declaration Of Conformance
HND-T205 11. EU Declaration of Conformance We, KOBOLD Messring GmbH, Hofheim-Ts, Germany, declare under our sole responsibility that the product: Double/Differential Second Portable Thermometer Model: HND-T205 to which this declaration relates is in conformity with the standards noted below: EN 61326-1:2013...
