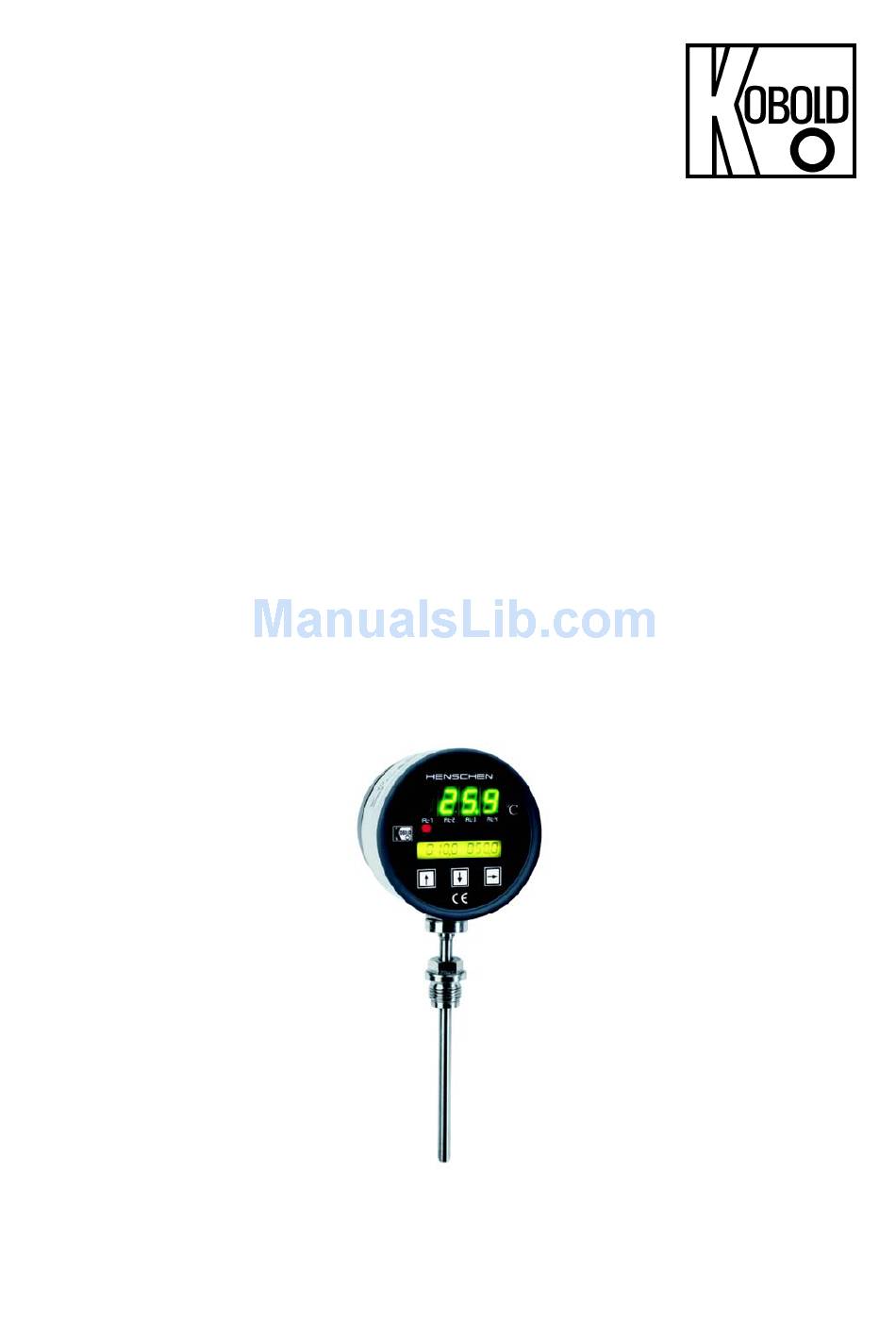

  • Page 1 Operating Instructions Digital Thermometers Model: DTM...

  • Page 2: Table Of Contents

    Dimensions ....................10     EU Declaration of Conformance ..............13     Annex ......................14   Manufactured and sold by: Kobold Messring GmbH Nordring 22-24 D-65719 Hofheim Tel.: +49(0)6192-2990 Fax: +49(0)6192-23398 E-Mail: info.de@kobold.com Internet: www.kobold.com page 2 DTM K01/0117...

  • Page 3: Note

     Digital Thermometers, model: DTM  Operating Instructions 4. Regulation Use Any use of the Digital Thermometers, model: DTM, which exceeds the manufacturer’s specifications, may invalidate its warranty. Therefore, any resulting damage is not the responsibility of the manufacturer. The user assumes all risk for such usage.

  • Page 4: Operating Principle

    Digital thermometers with intelligent electronics serve to display, monitor, control and transmit temperatures in production processes and equipment. The new device series DTM... is remarkable for its easy operation and adaptation to the most demanding measurement applications. A 4-segment 14 mm LED display provides clearly visible indication, the device is programmed with three arrow keys beneath the lower back-lit LCD display.

  • Page 5: Mechanical Connection

     Make sure the device into which the thermometer is to be installed has been depressurised.  Mount the DTM where it may be easily connected according to applicable codes and standards.  Do not screw in the unit using its housing, but rather on its hexagon (size 24 spanner).
  • Page 6  Plug the terminal strip onto the plug base on the unit.  Slip on the plastic cap, and bolt in place. Be sure the packing ring inside the plastic cap fits tightly. Attention! Incorrect wiring will lead to damage of the unit’s electronics. page 6 DTM K01/0117...

  • Page 7: Operation

    Settings for additional functions may also be made on LEVEL 2 (if LEVEL 0 is blocked, for example). In addition, the following function is available:  Servicing (SErVicE):  Changing the password for LEVEL 2 (SErVicE  PS-2). DTM K01/0117 page 7...

  • Page 8: Key Function

     One digit up  Reject this setting; reload previous value and return to selected function.  Confirm setting and go to next function of menu item The menu items are shown in an annexed schematic. page 8 DTM K01/0117...

  • Page 9: Technical Information

    Functions (optional):  Peak memory with effect on display, output, relay, internal reset via adjustable timer, keyboard or RS 232  Serial interface RS 232  2 external probes (differential temperature)  Higher temperatures (on request) DTM K01/0117 page 9...

  • Page 10: Order Codes

    11. Order Codes 12. Maintenance This unit will require no maintenance or servicing unless the medium is dirty. 13. Dimensions page 10 DTM K01/0117...
  • Page 11 DTM K01/0117 page 11...
  • Page 12 12 DTM K01/0117...

  • Page 13: Eu Declaration Of Conformance

    14. EU Declaration of Conformance We, KOBOLD Messring GmbH, Hofheim-Ts, Germany, declare under our sole responsibility that the product: Digital Thermometers Model: DTM to which this declaration relates is in conformity with the standards noted below: EN 61000-6-3:2011 Electromagnetic compatibility (EMC) - Part 6-3: Generic standards - Emission...

  • Page 14: Annex

    15. Annex page 14 DTM K01/0117...
  • Page 15 DTM K01/0117 page 15...
  • Page 16 16 DTM K01/0117...
  • Page 17 DTM K01/0117 page 17...
