Summary of Contents for Kobold HND-T126

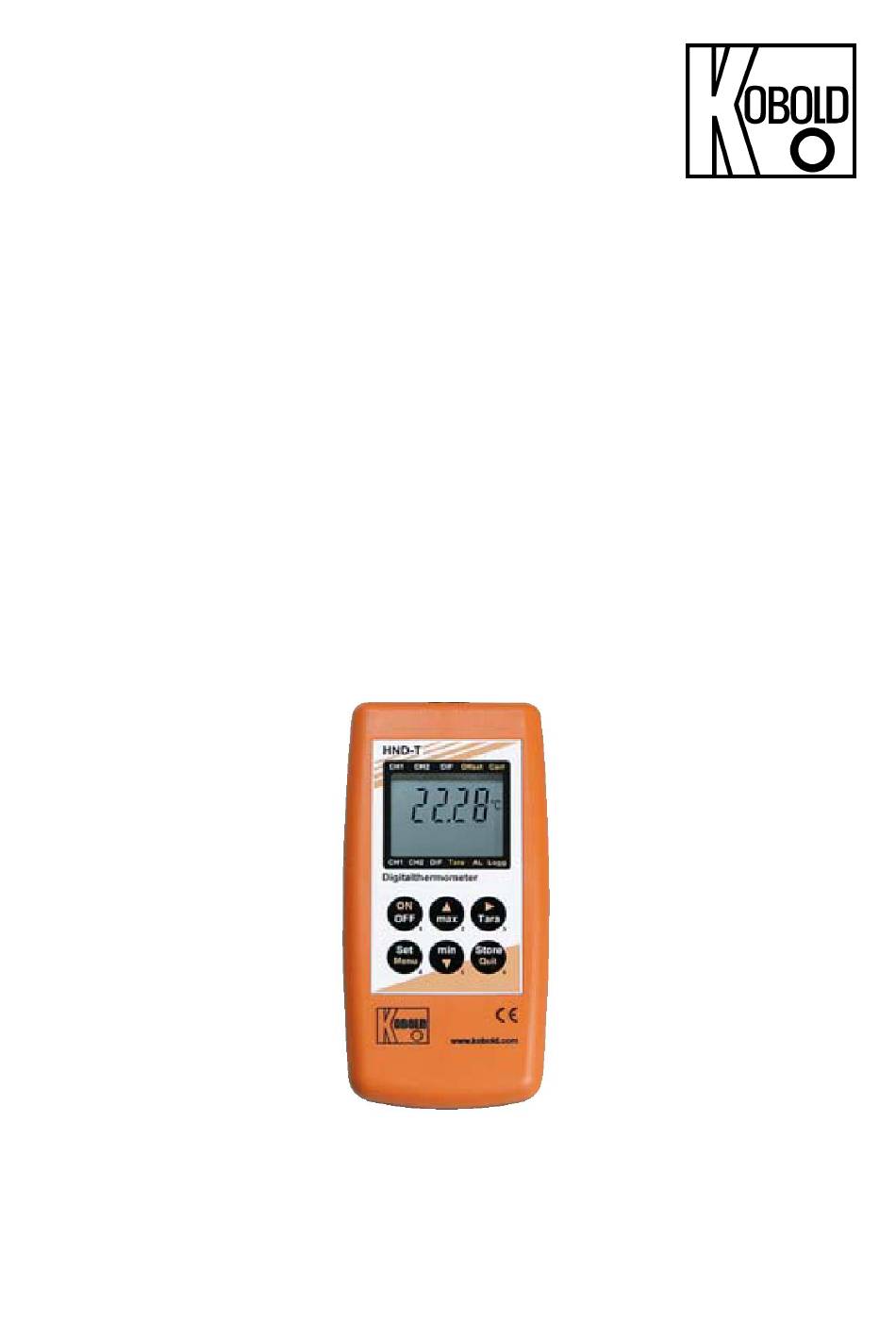

- Page 1 Operating Instructions Precision Second Portable Thermometer Model: HND-T126...
-
Page 2: Table Of Contents
Thermocouple element meas. probe type K Class 1 ......10 Accessories ..................11 EU Declaration of Conformance ..............12 Manufactured and sold by: Kobold Messring GmbH Nordring 22-24 D-65719 Hofheim Tel.: +49(0)6192-2990 Fax: +49(0)6192-23398 E-Mail: info.de@kobold.com Internet: www.kobold.com page 2 HND-T126 K03/0422... -
Page 3: Note
Please read these operating instructions before unpacking and putting the unit into operation. Follow the instructions precisely as described herein. The instruction manuals on our website www.kobold.com are always for currently manufactured version of our products. Due to technical changes, the instruction manuals available online may not always correspond to the product version you have purchased. -
Page 4: Operating Principle
HND-T126 5. Operating Principle The KOBOLD manual temperature measuring units HND-T120/T126 make it possible to measure the temperature with a type K thermocouple element probe. With a very large selection of temperature probes, these compact housings can also perform nearly any measurement task. -
Page 5: Operation / Configuration / Adjustments
5. Warning: Do not use this product as safety or emergency stop devices or in any other application where failure of the product could result in personal injury or material damage. Failure to comply with these instructions could result in death or serious injury and material damage. HND-T126 K03/0422 page 5... -
Page 6: In General: Measuring Temperature With Thermocouples
The display changes between ‘Hld‘ and the ‘frozen‘ value Pressing the key ‘Hold‘ shortly once again resets the display to the current value. Please note: Measuring keeps on running in the background, the MIN/MAX values are updated continuously. page 6 HND-T126 K03/0422... - Page 7 8. Store the values by pressing ‘On/Off‘ key. Please note: If during the changing of the offset adjust no key is pressed within 20 seconds, the input will be aborted. Eventually made changes won’t be stored! HND-T126 K03/0422 page 7...
- Page 8 If the symbol "BAT“ is displayed at the left side of display, the battery is weak, measuring can be continued for a certain time. If “bAt“ is displayed in the main display the battery is used up and needs to be replaced. Measuring is no more possible. page 8 HND-T126 K03/0422...
-
Page 9: Technical Information
142 x 71 x 26 mm (HxWxD) Weight: approx. 150 g Scope of functions: Auto-off function: 1 to 120 minutes adjustable or continuous operation Minimum/maximum value memory Hold function: »Freezing« of the current value HND-T126 K03/0422 page 9... -
Page 10: Order Codes
Surface magnet probe HND-TF43 adheres to magnetic materials heavy duty design (greater magnetic cohesion) Immersion probe HND-TF44 also for gases and air also suitable for surfaces on a limit basis) page 10 HND-T126 K03/0422... -
Page 11: Accessories
Software for recording measurement data on a computer, for instruments of the HND- BUS-S20M series without logger function Flat connector type N, free of thermoelectric voltage, HND-Z041 for connection of thermocouple element probe HND-TF21/22/23 Additional probe accessories upon request * Observe instrument dimensions HND-T126 K03/0422 page 11... -
Page 12: Eu Declaration Of Conformance
HND-T126 10. EU Declaration of Conformance We, KOBOLD Messring GmbH, Hofheim-Ts., Germany, declare under our sole responsibility that the product: Precision Second Portable Thermometer Model: HND-T126 to which this declaration relates is in conformity with the standards noted below: EN 61326-1:2013 Electrical equipment for measurement, control and laboratory use - EMC requirements –...
