Kokido EV05 User Manual

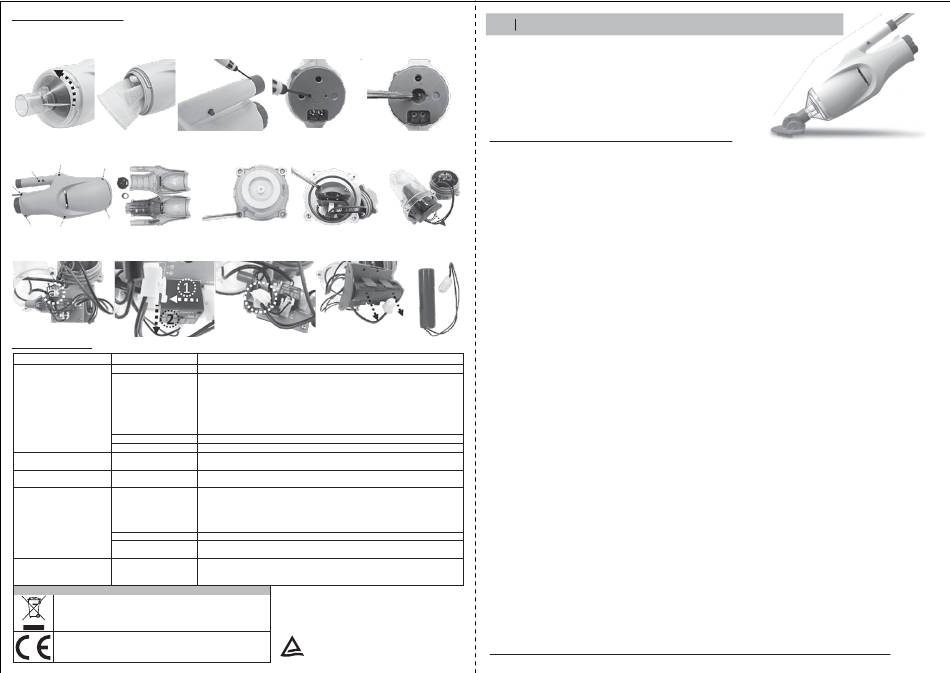

How to remove the battery pack

Recommended tools (not included): Philips screwdriver and small slot screwdriver
1. Turn to release the canopy and take out the filter bag / filter cage. Use a small slot screwdriver to detach the ring from the handle. If it is too
difficult to detach the ring with a screwdriver, use a cutting plier to cut. Turn the switching knob to open the charging port. Use the small slot
screwdriver to pry and detach the middle cover from the switching knob. Use the Philips screwdriver to unfasten the knob-locking screw.
2. Detach the switching knob and use the Philips screwdriver
to unscrew all the screws on the main body. Separate the
body in two halves to access the main chamber.
4. Remove the complete battery enclosure (with battery installed) from the chamber. In order to detach the battery cable, press on the clip on
the connector and pull the cable out. Wrap the connector immediately with insulating tape in order to avoid short circuit caused by the
contact of both wire terminals.

TROUBLESHOOTING

Problem Possible Cause
Electric vacuum does Battery is drained
not capture the debris Impeller is jammed
Impeller is broken
Filter is full
Debris escapes from the filter Canopy flap is damaged
Debris escapes from the Filter bag / filter cage is
filter bag / filter cage damaged.
Electric vacuum cannot Battery is damaged
be charged / recharged
USB cable is damaged
USB charger (not
included) is out of order
Pivoting suction head Wheel is jammed
(if provided) does not
move smoothly
Environmental Programmes, WEEE European Directive
Please respect the European Union regulations and help to protect the environment.
Return non-working electrical equipment to a facility appointed by your municipality that properly
recycles electrical and electronic equipment. Do not dispose them in unsorted waste bins.
For items containing removable batteries, remove batteries before disposing of the product.
© 2020 Kokido Development Ltd.
All rights reserved. No part of this document may be reproduced or transmitted
in any form or by any means, electronic, mechanical, photocopying, recording,
or otherwise, without prior written permission of Kokido Development Ltd. (V1)
3. Use the Philips screwdriver to unfasten the screws. Remove the
top half of the chamber to expose the battery enclosure.
Solution
Charge the battery again.
Power off the electric vacuum and inspect the middle gap of the electric vacuum
to see if the impeller is jammed by larger debris. If possible, use a small tool to
remove it with intensive care & caution. If necessary, contact your dealer for
further instructions.
WARNING!
Make sure the electric vacuum is powered off when the
unit is being serviced.
Contact an authorized dealer regarding replacements.
Clean the filter.
Canopy flap works like a door to prevent the debris from escaping from the filter.
Contact dealer for replacement part and instructions.
Replace with a new filter bag / filter cage. Contact an authorized dealer regarding
replacements.
Contact an authorized dealer regarding replacements.
WARNING!
DO NOT open the electric vacuum and replace the battery
by yourself. This could result in severe or fatal injuries, as well as voiding
the warranty.
Replace with a new USB cable.
Replace with a new USB charger.
Clean out the debris from the wheel.
Note: Do not attempt to take out the wheels.
If soft copy of this instruction manual is required,
please contact our customer
service by email: customerservice@kokido.com
SAVE THESE INSTRUCTIONS
20011025
Manufacturer: Kokido Development Limited.
27 Shing Yip Street, Kwun Tong, Kowloon, HK
C US

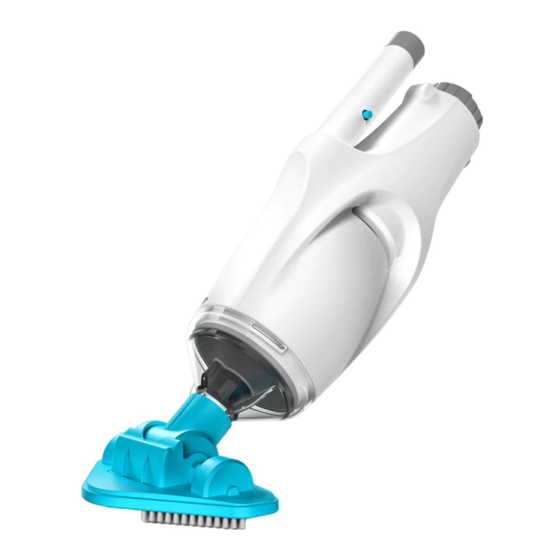

RECHARGEABLE POOL VACUUM
GB
USER MANUAL
EV05 / EV06
Made in China
SAFETY WARNINGS & INSTRUCTIONS
Read and follow all instructions in this manual and on the equipment.
Failure to do so could result in severe or fatal injuries.
WARNING!
- This is not a TOY. Children should be kept out of reach from this electric vacuum and its accessories.
- Never allow children to operate this product.
- This electric vacuum is not intended for use by someone with reduced physical, sensory or mental capabilities, or a lack of
experience and knowledge unless they have been given instructions concerning the appliance and are under supervision of
the person responsible for their safety.
- Make sure the electric vacuum is fully immersed in water before initiating operation. The minimum water level required to
operate the device must be above the switching knob of the electric vacuum when it is held vertically. The product is only
intended to be used underwater in a pool or spa; any other use will void the warranty.
- The electric vacuum must only be supplied at safety extra low voltage in accordance to the marking applied on it.
- Maximum operating depth in water is 2 meters (6.5 ft).
- Maximum water temperature: 5˚C (41˚F) –40˚C (104˚F)
- Do not use this electric vacuum if any damage is detected.
- Replace damaged parts as soon as possible. Only use parts certified by the distributor or manufacturer.
- If an USB charging adaptor (not included) is used, make sure to connect it to the power source through a residual current
device (RCD)/ a ground fault circuit interrupter (GFCI). If in doubt, consult a qualified, professional electrician.
- Disconnect the electric vacuum from the supply mains before carrying out any maintenance, such as cleaning the filter.
- The battery installed is a rechargeable Li-ion battery pack. Do not attempt to replace it.
- This electric vacuum should only be charged with the included USB cable.
- DO NOT handle the electric vacuum while it is charging with wet limbs and without shoes.
- You should not operate this electric vacuum while the pool is being used.
- DO NOT use this electric vacuum without an intact filter bag /filter cage in place, as the warranty will be voided as a result.
- Suction entrapment hazard: This electric vacuum generates suction. Do not allow hair, body, or any loose parts of your
clothing to be in the suction range of the electric vacuum during its operation.
- Never insert body parts, clothing, or other objects into the openings and moving parts of the electric vacuum.
- DO NOT use this electric vacuum to pick up any toxic substances, flammable, or combustible liquids such as gasoline,
nor in the presence of explosive or flammable fumes.
- Under no circumstances should you attempt to disassemble the electric vacuum and replace the impeller, motor,
and battery by yourself.
- Never insert any object to make contact with the impeller.
CAUTION!
- DO NOT attempt to use the electric vacuum to clean anything other than your pool / spa.
- Use only original accessories delivered with this product.
- DO NOT use this electric vacuum right after pool-shocking. It is recommended to leave the pool circulating for at least 24-48 hours.
- Do not use this electric vacuum with another electric vacuum/cleaner simultaneously.
- Avoid picking up hard, sharp objects with this product. They may damage the electric vacuum and filter.
- Exercise caution when cleaning pool stairs.
- To avoid damaging the USB charging cable, do not carry the electric vacuum by the cable or tug the USB cable to disconnect it from
the power source and product.
- Charging must be done indoors, in a well-ventilated area away from sunlight, children, heat, ignition sources, and within an ambient
temperature range of 5˚C (41˚F) and 35˚C (95˚F).
- DO NOT leave the electric vacuum plugged in to the charger for over 10 hours.
- If the electric vacuum will not be used for an extended period, make sure it's switched off and use a damp cloth to clean and dry it and
its accessories. Make sure to change the electric vacuum to about 30% to 50% of the battery capacity before it is stored. Store in a
well-ventilated area away from sunlight, heat, ignition sources, pool chemicals, and children. Recharge the electric vacuum every
three months.
Above warnings and cautions are not intended to incorporate all possible instances for risks and / or severe injuries.
Unit 1319, Sunbeam Centre,
Pool / spa owners should always exercise extra caution and common sense when utilizing the product.
SAVE THESE INSTRUCTIONS
