SOLAR POND PUMPS
de
SOLAR TEICHPUMPEN
Version 23.03
GB
OPERATING INSTRUCTIONS
BEDIENUNGSANLEITUNG
DE

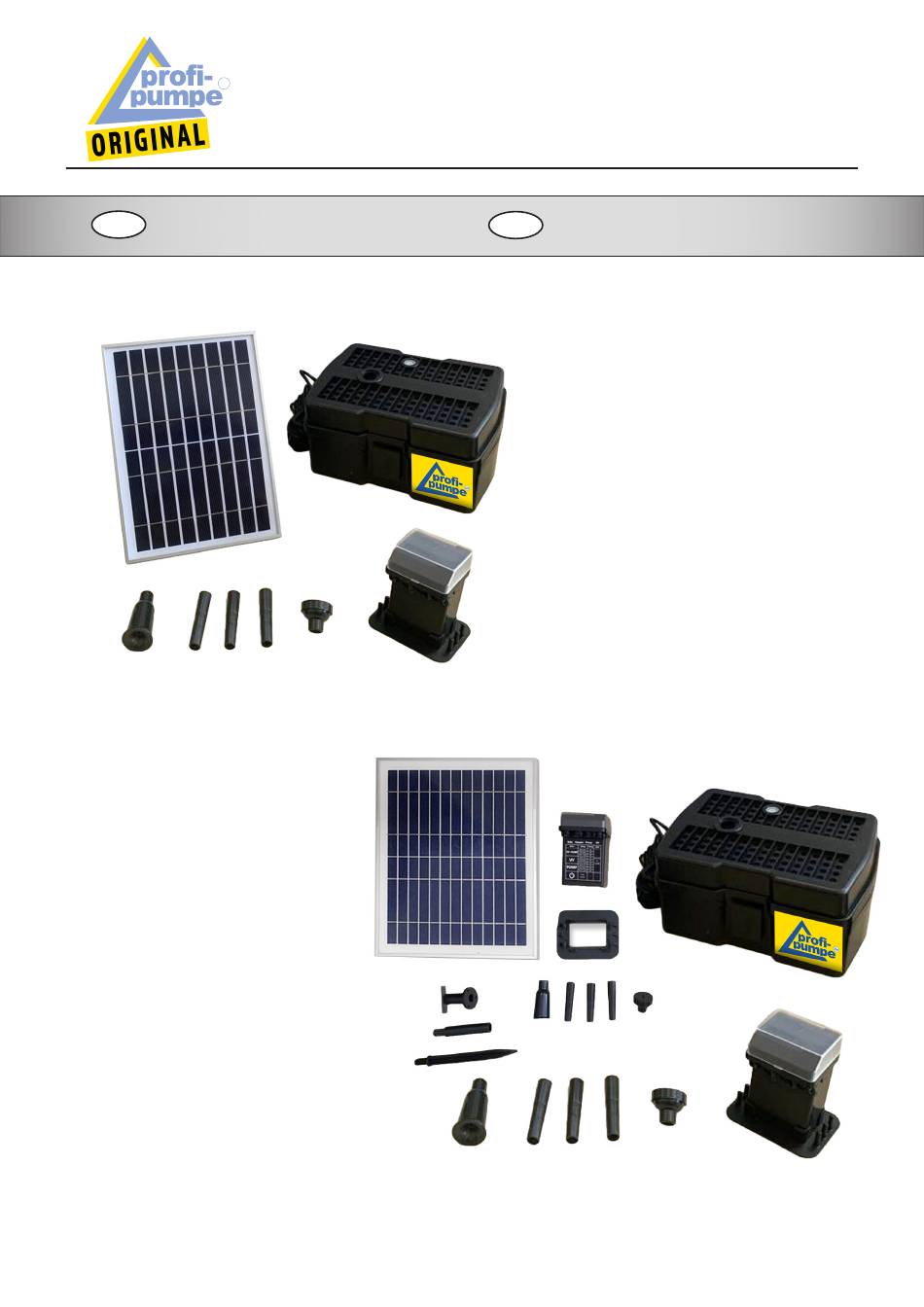

Teichpumpen-Set
Solar Aqua-Vital
9-UV-C
(SP01125-4)
Teichpumpen-Set
Solar Aqua-Vital
12-UV-C
(SP01126-4)
Technical changes, misprints and mistakes reserved! Newest information about our products can be found online
Technische Änderungen, Druckfehler und Irrtümer vorbehalten! Aktuelle Informationen zu unseren Produkten finden Sie auf:
https://www.profi-pumpe.de

Advertisement

Chapters

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Solar Aqua-Vital 9-UV-C and is the answer not in the manual?

Questions and answers

Summary of Contents for Profi-pumpe Solar Aqua-Vital 9-UV-C

  • Page 1 Teichpumpen-Set Solar Aqua-Vital 9-UV-C (SP01125-4) Teichpumpen-Set Solar Aqua-Vital 12-UV-C (SP01126-4) Technical changes, misprints and mistakes reserved! Newest information about our products can be found online Technische Änderungen, Druckfehler und Irrtümer vorbehalten! Aktuelle Informationen zu unseren Produkten finden Sie auf: https://www.profi-pumpe.de...
  • Page 2: Table Of Contents

    Please keep this manual with the instructions and safety instructions ca- refully in order to at any time you can restore them. Please always down- load the latest version of the user manual of www.profi-pumpe.de under „downloads“. This shall always prevail.
  • Page 3: Operation

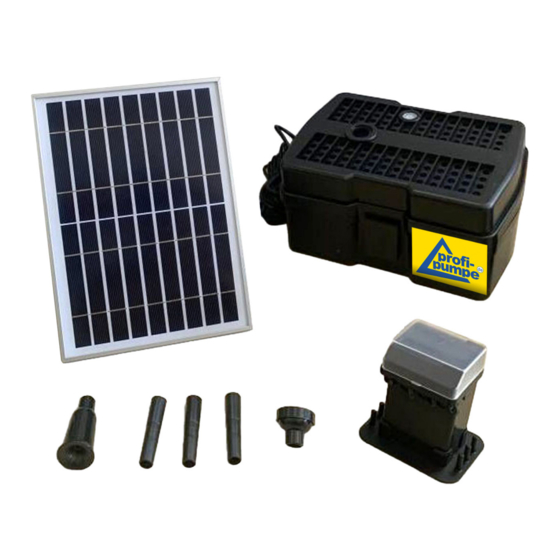

    English 3 3. OPERATION ● Unpack all components carefully ● Mount the solar panel (see illustration). Remove the protective film from the solar panel (if any). Overview of components and assembly Solar Pump Kit ● The solar pump is designed for outdoor use, the pump is powered by a solar panel. In order to make the pump work, the solar panel needs to be placed in direct sunlight –...
  • Page 4: Frost

    4 English Filter box Solar Panel Control box Base Position the solar panel so that it receives direct sunlight. The fountain can not work if the solar pa- nel is shaded. Adjust the solar panel angle to maximise the amount of solar energy collected. Summer 0°- 30°...
  • Page 5: Operating Instructions

    English 5 6. OPERATING INSTRUCTIONS Once installed, allow the control box to charge at least eight hours in direct sunlight or 8 hours by adapter in order to fully charge the Battery. 3.1 Press the “on/off” button, turn on/off the system. The “L4” indicator light is on. „L4“...
  • Page 6 6 English Indicator light Button Setting Timing Cycle Blink-according to Solid timing during running Press once Twice interval Three times Press twice (UV&Pump) interval Press 3 Four times interval times Press once Twice interval Same time During Three times Press twice as originally stand by (UV)
  • Page 7: Performing Of The Pump

    English 7 9. PERFORMANCE OF THE PUMP The performance of the pump depends on the orientation of the solar panels towards the sun and their intensity. The max. Performance is achieved under optimum conditions. A function in the shade or under cloudy skies can not be guaranteed. The solar pond kits are designed primarily for use in the summer months.
  • Page 8: Servicing

    8 English l When the battery is worn out, wrap the terminals with adhesive tape or similar materials be- fore disposal l Immediately discontinue use of the battery, if there is an unusuak smell, a change of color or shape, or if it appears abnormal in any other way l Do not place the battery in microwave ovens, high pressure containers or on cookware facili- ties l In the event of the battery is leaking and fluid gets into your eye, do not rub the eye, rinse...
  • Page 9: Security Tips

    English 9 14. SECURITY TIPS l Obey absolutely valid regulations on the electrical security l Never run pump dry l Pumping inflammable, as well as all other aggressive liquids is prohibited l Pay attention to the medium temperature max. 35°C l Never pull the pump on the electrical cable or pressure hose l Avoid cross section narrowing l Pay attention to the given particle size...
  • Page 10: Notes On Product Liability

    The undersigned, Amur S.à r.l., 36, Rue de la Gare, L-5540 Remich, certifies that the product named overleaf, namely SOLAR AQUA-VITAL 9-UV-C, SOLAR AQUA-VITAL 12-UV-C as placed on the market, complies with the relevant provisions listed below, the relevant EU harmonised directives and the EU standard for safety.
  • Page 11: Vorwort

    Bitte bewahren Sie die Bedienungsanleitung mit den Anweisungen und Sicherheitshin- weisen sorgfältig auf, um jederzeit darauf zurückgreifen zu können. Bitte laden Sie stets die neueste Ausführung der Bedienungsanleitung von www.profi-pumpe.de unter „download“ herunter. Diese ist stets maßgebend. 2. ALLGEMEINES Die Solar-Teichpumpen-Sets sind hochwertige Fontänen-Pumpensysteme für den Einsatz im Au- ßen- bzw.
  • Page 12: Inbetriebnahme

    12 Deutsch 3. INBETRIEBNAHME ● Entnehmen Sie alle Teile vorsichtig und kontrollieren Sie diese auf Vollständigkeit ● Montieren Sie das Solarpanel (siehe Abbildung). Entfernen Sie die Schutzfolie vom Solarpanel (wenn vorhanden). Übersicht der gelieferten Teile und Montage S olarpumpen-Bausatz ● Die Solarpumpe ist für die Verwendung im Freien konzipiert und wird von einem Solarmodul angetrieben.
  • Page 13: Frost

    Deutsch 13 Filterkasten Solarpanel Schaltkasten Sockel Positionieren Sie das Solarpanel so, dass es direktes Sonnenlicht erhält. Die Pumpe/Belüfter kann nicht funktionieren, wenn die Solarzelle beschattet wird. Passen Sie den Winkel des Solar- panels an. Sommer 0°- 30° Frühjahr/Herbst 30°- 60° Schließen Sie die Pumpe/Belüfter und das Solarpanel an (siehe Abbildung).
  • Page 14: Bedienung Und Funktion

    14 Deutsch 6. BEDIENUNG UND FUNKTION Lassen Sie das Steuergerät nach der Installation mindestens acht Stunden in direktem Sonnenlicht oder acht Stunden über einen Adapter aufladen, um den Akku vollständig aufzuladen. 3.1 Drücken Sie die Taste „on/off“, um das System ein- und auszuschalten. Die Kontrollleuchte „L4“ leuchtet.
  • Page 15 Deutsch 15 Anzeigelampe Zeitein- Schaltfläche Einstellung Zyklus stellung Blinken gemäß der Dauer- Zeiteinstellung wäh- haftes rend des Betriebs Leuchten Einmal Zweimaliges 2 Std. drücken Intervall Zweimal Dreimaliges 3 Std. (UV&Pumpe) drücken Intervall 3 Mal Viermaliges 4 Std. drücken Intervall Einmal Zweimaliges 2 Std.
  • Page 16: Leistung Der Pumpe

    16 Deutsch 9. LEISTUNG DER PUMPE Die Leistung der Pumpe hängt von der Ausrichtung des Solar- Panels zur Sonne und deren Inten- sität ab. Die max. Leistung wird bei optimalen Bedingungen erreicht. Eine Funktion im Schatten oder bei bewölktem Himmel kann nicht garantiert werden. Die Solarteichsets sind primär für den Einsatz in den Sommermonaten konzipiert.
  • Page 17: Wartung

    Deutsch 17 aus. Lagern Sie den Akku bei heißem Wetter nicht im Auto. Der Akku kann bei hohen Tempera- turen explodieren oder sich entzünden. l Akkus sollten nicht in Reichweite von Kindern aufbewahrt werden. l Um Kurzschlüsse zu vermeiden, sollten die Pole der Batterien vor der Entsorgung mit isolie- rendem Klebeband abgedeckt werden.
  • Page 18: Sicherheitshinweise

    18 Deutsch 14. SICHERHEITSHINWEISE l Unbedingt geltende Vorschriften zur elektrischen Sicherheit befolgen l Pumpe niemals trocken betreiben l Das Pumpen von entzündlichen, sowie allen anderen aggressiven Flüssigkeiten ist untersagt l Mediumtemperatur max. 35°C beachten l Niemals die Pumpe am stromführenden Kabel oder Druckleitung ziehen l Querschnittsverengung vermeiden l Bei längeren Stillstandszeiten die Pumpe säubern, mit klarem Wasser spülen und tro- cken bei Zimmertemperatur lagern...
  • Page 19: Entsorgungshinweise

    Der Unterzeichner Amur S.à r.l., 36, Rue de la Gare, L-5540 Remich bestätigt, dass die umseitig be- nannten Produkte, nämlich SOLAR AQUA-VITAL 9-UV-C, SOLAR AQUA-VITAL 12-UV-C in der in den Verkehr gebrachten Ausführung den unten aufgeführten einschlägigen Bestimmungen, den ent- sprechenden EU harmonisierten Richtlinien und dem EU-Standard für Sicherheit entspricht.
  • Page 20: Technical Data

    20 English / Deutsch 19. TECHNICAL DATA/TECHNISCHE DATEN Aqua-Vital Aqua-Vital English Deutsch 9-UV-C 12-UV-C SP01125-4 SP01126-4 Max. pump capacity Max. Fördermenge 450 l/h 850 l/h Max pump height Max. Förderhöhe 1,2 m 1,25 m Max. water temperature Max. Wassertemperatur 45 °C 45 °C Rated voltage Nennspannung...
  • Page 21: Spare Parts

    English / Deutsch 21 20. SPARE PARTS / ERSATZTEILE The spare parts are available for purchase from AMUR S.à.r.l. at www.profi-pumpe.de. Die Ersatzteile sind bei AMUR S.à.r.l. unter www.profi-pumpe.de käuflich zu erwerben. If you need further spare parts, please contact us.
  • Page 22 Notes/Notizen...
  • Page 23 Notes/Notizen...
  • Page 24 Imprint/Impressum Amur S.à r.l. www.amur.lu Email: info@amur.lu Tel.: (+49) 0611-9 45 87 77-0 Fax: (+49) 0611-9 45 87 77-11...
