Application Note
CDPX-X-E2-W-xx-EX2
Manual

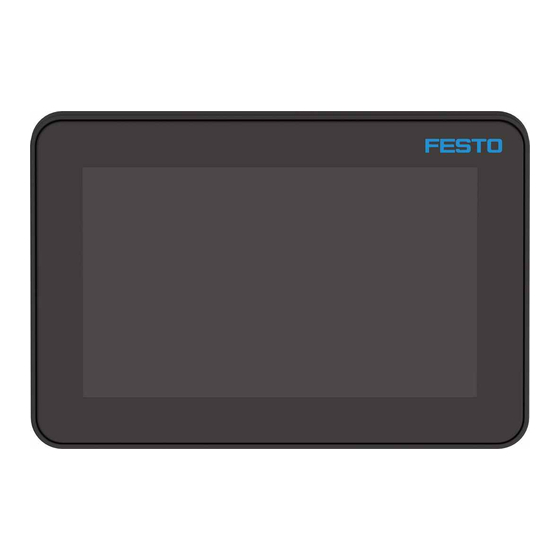

This Application Note describes the main features of the Festo operator
panels. The manual refers to the following models CDPX-X-E2-W-7-EX2,
CDPX-X-E2-W-10-EX2, CDPX-X-E2-W-15-EX2 and CDPX-X-E2-W-21-EX2.
This operational guidelines described below is information which re-
lates to the device, installation, transportation, storage, assembly, use
and maintenance.
CDPX-X-E2-W-xx-
EX2
100441
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Festo CDPX-X-E2-W EX2 Series
Summary of Contents for Festo CDPX-X-E2-W EX2 Series
- Page 1 Application Note CDPX-X-E2-W-xx-EX2 Manual CDPX-X-E2-W-xx- This Application Note describes the main features of the Festo operator panels. The manual refers to the following models CDPX-X-E2-W-7-EX2, CDPX-X-E2-W-10-EX2, CDPX-X-E2-W-15-EX2 and CDPX-X-E2-W-21-EX2. This operational guidelines described below is information which re- lates to the device, installation, transportation, storage, assembly, use and maintenance.
- Page 2 Festo SE & Co. KG. Festo SE & Co KG reserves the right to make modifications to this document in whole or in part. All brand and product names are trademarks or registered trademarks of their respective owners.
-
Page 3: Table Of Contents
Table of contents Components/Software used ........................5 Software Used ............................. 5 Hardware Used ............................5 APPLICATION NOTE DESCRIPTION ......................6 Product Overview ............................7 Standards and Approvals ........................... 8 Product Identification ..........................9 Technical Specifications ........................... 10 Technical Data ............................13 Dimensions ............................... -
Page 5: Components/Software Used
Components/Software used Components/Software used Software Used Type/Name Software Version Festo Designer Studio V4.5.0.224 Table 1.1: Software used Hardware Used Type/Name Firmware Version CDXP-X-E2-W-7-EX2 Config-OS 1.3.638 CDXP-X-E2-W-10-EX2 Main-OS 1.3.638 CDXP-X-E2-W-15-EX2 Bootloader 1.0.11 CDXP-X-E2-W-21-EX2 Ethernet Cables NEBC-R3G8M22-K-3-N-S-R3G8 NEDU-L2R1-R3U1G12-5L1-1L2- K-R3L1G12M22 Table 1.2: Hardware used Application Note –... -
Page 6: Application Note Description
APPLICATION NOTE DESCRIPTION APPLICATION NOTE DESCRIPTION The manual contains safety standards that must be respected for the personal safety and to avoid damage. Indications of attention are divided into three levels of severity: DANGER: indicates a failure to observe safety rules and such failure may cause death or serious injuries. -
Page 7: Product Overview
Product Overview 3 Product Overview Festo CDPX-E2 products are ideal for field installation in critical areas. High-resolution displays and multitouch PCAP touchscreen with a robust glass front. Power-over-Ethernet (PoE) for maximum simplicity of connection using standard shielded CAT 5 wiring. Full IP protection with the use of dedicated connectors for the maximum flexibility of in- stallation, from mounting arm to a simple M22 hole. -
Page 8: Standards And Approvals
Standards and Approvals 4 Standards and Approvals The products have been designed for use in an industrial environment in compliance with the 2014/53/EU EMC Directive. The products have been designed in compliance with: EN 61000-6-4 EN 61000-6-2 EN 61000-6-3 EN 61000-6-1 EN 61010 EN 61010-2-201 The installation of these devices in residential, commercial and light industrial environments... -
Page 9: Product Identification
An example of the information reported is shown below: product name CDPX-X-E2-15-W-EX2 part number 8155222 year/week of production xx/yy serial number AA00012P8000000561AA approvals CE / UL / … Manufacturer address Festo SE & Co. KG DE-73734 Esslingen Made in Italy Application Note – CDPX-X-E2-W-xx-EX2 Page 9 of 26... -
Page 10: Technical Specifications
Technical Specifications Technical Specifications Projected capacitive – Multitouch Touchscreen technology 3V 7mAh Vanadium-Lithium, rechargeable, Back-up battery not user replaceable, model VL1220. 4GB (8GB for CDPX-X-E2-W-15 / 21-EX2) Flash 1GB (2GB for CDPX-X-E2-W-15 / 21-EX2) Clock/Calendar with back-up battery Hardware clock <100ppm Accuracy RTC (at 25°C) Environmental conditions... - Page 11 Technical Specifications Durability information Backlight service life 40000 Hrs. or more (LED type) (Time of continuous operation until the brightness of the backlight reaches 50% of the rated value when the surrounding air temperature is 25°C) - see Note 1 Note 1: Extended use in environments where the surrounding air temperature is 40°C or higher may degrade backlight quality/reliability/durability.
- Page 12 Projected capacitive touch screens (PCAP) are suitable for operation with or without gloves. A large number of gloves (rubber gloves, light/heavy leather gloves, disposable latex gloves, etc.) are supported. Due to the variety of commercially available gloves, however, FESTO cannot guarantee all types Page 12 of 26 Application Note – CDPX-X-E2-W-xx-EX2...
-
Page 13: Technical Data
Technical Data Technical Data Model CDPX-X-E2-W-7-EX2 CDPX-X-E2-W-10-EX2 Display / Backlight TFT Colour / LED TFT Colour / LED Colours Resolution 1024 x 600 1280 x 800 Diagonal (inches) 7” widescreen 10.1” widescreen Viewing angles Direction L / Direction R Direction L / Direction R horizontal Typ. - Page 14 Technical Data Model CDPX-X-E2-W-15-EX2 CDPX-X-E2-W-21-EX2 Display / Backlight TFT Colour / LED TFT Colour / LED Colours Resolution 1366 x 768 1920 x 1080 Diagonal (inches) 15.6” widescreen 21.5” widescreen Viewing angles Direction L / Direction R Direction L / Direction R horizontal Typ.
-
Page 15: Dimensions
Technical Data Dimensions MODEL CDPX-X-E2-W-7-EX2 131.6mm/5.18” 195.2 / 7.68” 16,5mm/0.64” 17mm/0.66” CDPX-X-E2-W-10-EX2 183.1mm / 7.2” 264.5mm / 10.41” 16.5mm / 0.64” 17mm / 0.66” CDPX-X-E2-W-15-EX2 248mm / 9.76” 398.6mm / 15.69” 26.5mm / 1.04” 17mm / 0.66” CDPX-X-E2-W-21-EX2 325.6mm / 12.81” 534.1mm / 21.02” 26.5mm / 1.04! 17mm / 0.66”... -
Page 16: Installation Environment And Procedure
Technical Data Installation Environment and Procedure Avoid prolonged exposition to direct sunlight to avoid the risk of overheating the device. The equipment is not intended for installation in contact with corrosive chemical compounds. Check the resistance of the front panel to a specific compound before installation. Do not use tools of any kind (screwdrivers, etc.) to operate the touch screen of the panel. -
Page 17: Safety Instructions
Technical Data Safety instructions Application Note – CDPX-X-E2-W-xx-EX2 Page 17 of 26... -
Page 18: Connections
Connections Connections Ethernet Port Pin Description Reserved The Ethernet port has two status indicators. Please see description in figure GREEN Green OFF: Valid link has not been detected ON: No activity ON: Valid link has been detected Blinking: Activity Page 18 of 26 Application Note –... -
Page 19: Power Supply, Grounding And Shielding
Power Supply, Grounding and Shielding Power Supply, Grounding and Shielding The power supply terminal block is shown in the figure below Use a shielded CAT 5 cable or higher Note: Ensure that the power supply has enough power capacity for the operation of the equipment The unit must always be grounded to earth with shielded CAT 5 cable. -
Page 20: Battery
Battery 10 Battery These devices are equipped with rechargeable Lithium battery, not user-replaceable. The following information is maintained by the battery: hardware real-time clock (date and time) Charge: At first installation must be charged for 48 hours. When the battery is fully charged, it ensures a period of 3 months of date and time back-up at 25°C. Battery CDPX-X-E2-W-7-EX2 CDPX-X-E2-W-10-EX2... - Page 21 Battery CDPX-X-E2-W-15-EX2 CDPX-X-E2-W-21- Application Note – CDPX-X-E2-W-xx-EX2 Page 21 of 26...
-
Page 22: Special Instructions For Use
Special Instructions for Use 11 Special Instructions for Use The equipment shall only be used in an area of not more than pollution degree 2, as defined in IEC/EN 60664-1. The equipment shall be installed in an enclosure that provides a degree of protection not less than IP 54 in accordance with IEC/EN 60079-15. -
Page 23: Getting Started
Getting Started 12 Getting Started CDPX HMI products delivery configuration is based on a loader. Use the services of the loader to install applications on the device such as Designer Studio runtime or browsers. Designer Studio version V4.5 or higher is required. Designer Studio is a software tool that must be properly installed on a computer running Microsoft Windows. -
Page 24: System Settings
System Settings 13 System Settings CDPX-X-E1-../ E2-.. HMI products have a system settings interface to allow configuration of system options. The user interface of System Settings is based on HTML pages accessible from the HMI screen or re- motely using a Web browser Chrome v44 or higher using port 443. To connect enter “https://IP/machine_config”... - Page 25 System Settings Activation of System Settings in User Mode: Factory default status Press “System Setting” button on the HMI screen (Designer Studio runtime running) Recall context menu and select “System Settings”. To recall the context menu click and hold any unused area of the touchscreen for a few seconds.
-
Page 26: Unpacking And Packing Instructions
Unpacking and Packing instructions 14 Unpacking and Packing instructions CDPX-X-E2-W-7-EX2 and CDPX-X-E2-W-10-EX2 CDPX-X-E2-W-15-EX2 and CDPX-X-E2-W-21-EX2 To repack the unit, please follow the instructions backwards Page 26 of 26 Application Note – CDPX-X-E2-W-xx-EX2...
