FastTt Carbon Aero Bar Installation Manual
Hide thumbs
Also See for Carbon Aero Bar:
- Installation manual (20 pages) ,
- Installation manual (15 pages) ,
- Installation manual (20 pages)
Related Manuals for FastTt Carbon Aero Bar
Summary of Contents for FastTt Carbon Aero Bar

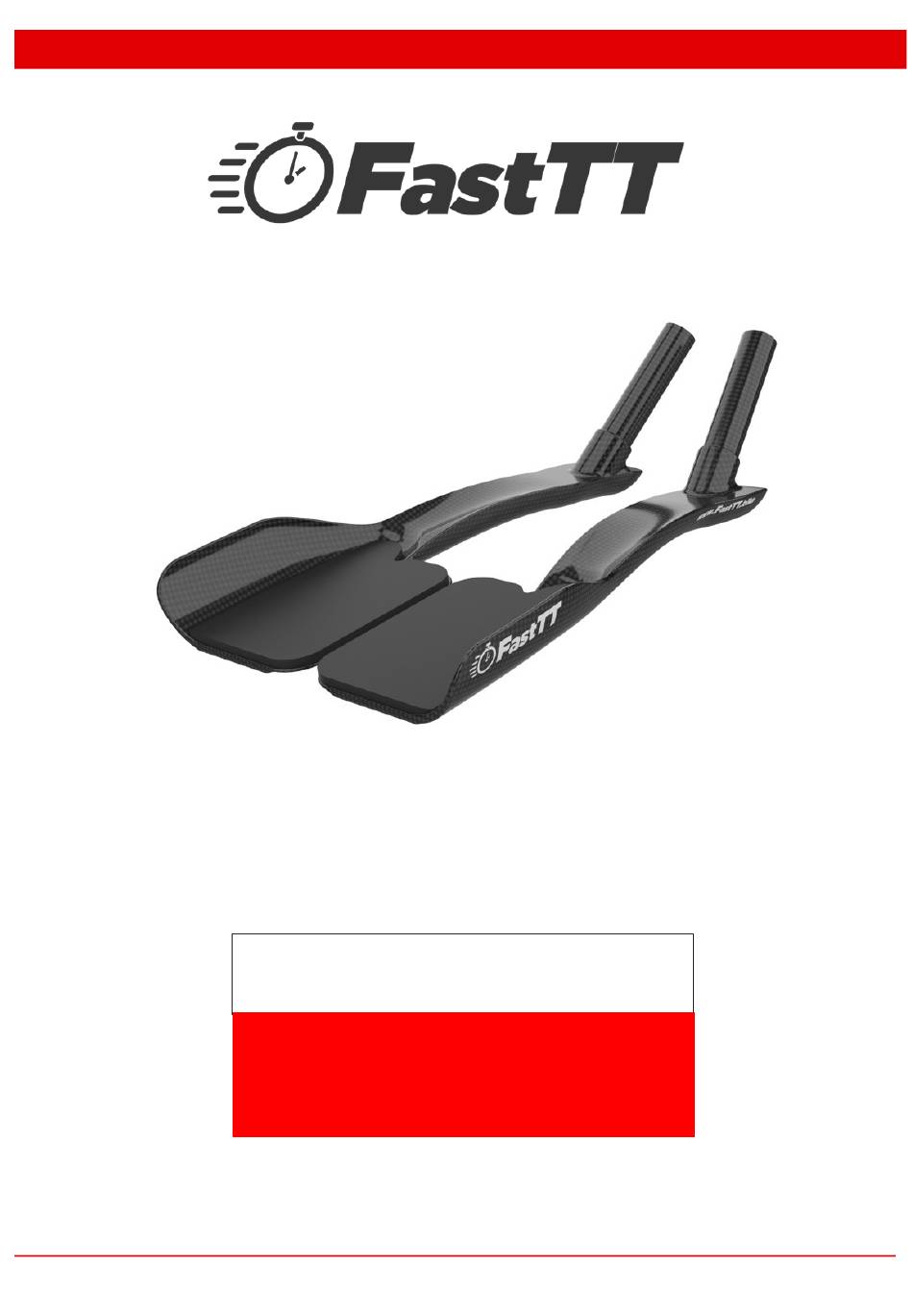

- Page 1 [Designed for Speed] Carbon Aero Bar INSTALLATION GUIDE MODEL: Track Pursuit Aero Bar PRE-DRILLED BOLT & RIDE www.FastTT.bike www.fastTT.bike FastTT Aero Bar Installation Guide - TKP Pre-Drilled...
- Page 2 Congratulations on purchasing your FastTT Aero Bars! The following pages will guide you through the installation process. Please read the instructions from start to finish BEFORE commencing installation. It is important to follow the installation sequence. www.fastTT.bike FastTT Aero Bar Installation Guide - TKP Pre-Drilled...
-
Page 3: Parts Included
PARTS INCLUDED SECTION A - GETTING STARTED NOTE: The 4x 16mm bolts should NOT be used for mounting the TT bars. These are only used for FastTT Tri bars. www.fastTT.bike FastTT Aero Bar Installation Guide - TKP Pre-Drilled... - Page 4 (measured at the fore/aft centre) to top tip of bar end. 1. Height of top of elbow pad from the ground (measured at fore/aft centre). 2. Top of bar end from the ground. www.fastTT.bike FastTT Aero Bar Installation Guide - TKP Pre-Drilled...
- Page 5 (if applicable). Elbow pad measurements for UCI compliance should be taken at the fore/aft centre of the pad. Please refer to the UCI website for measurement rules based on rider height: https://www.uci.org/equipment/bh2JJzw1eB0n876rX2iB1 www.fastTT.bike FastTT Aero Bar Installation Guide - TKP Pre-Drilled...
- Page 6 90° vertical (check with a spirit level). Please refer to the UCI website for measurement rules based on rider height - https://www.uci.org/equipment/bh2JJzw1eB0n876rX2iB1 www.fastTT.bike FastTT Aero Bar Installation Guide - TKP Pre-Drilled...
-
Page 7: Section B - Trimming The Bar Ends
UCI compliance. Measure twice, cut once! Use a hacksaw or Dremel cutting tool to trim off the unwanted bar end. SECTION A - GETTING STARTED SECTION C - MEASURING FOR INSTALLATION www.fastTT.bike FastTT Aero Bar Installation Guide - TKP Pre-Drilled... -
Page 8: Section C - Mounting The Bars
SECTION C – MOUNTING THE BARS Placement options FastTT aero bars offer a wide range of bolt holes and bracket placement options for you to find your preferred setup. Fitting adjustable angled risers If fitting FastTT adjustable angled risers, bolt the bottom blocks of the risers to your base bar or spacer stack. - Page 9 Fitting the mounting brackets to FastTT angled riser and Profile Design brackets Using the supplied M5 button head bolts, attach the bracket to the top block of the FastTT Adjustable angled riser or to the Profile Design wing bracket, depending on the mounting option you selected.
- Page 10 Dremel. Unless you ordered FastTT long bolts you will need to provide the correct length and thread diameter bolts for your bike. Tighten the bolts to the torque specified by the bolt supplier or your owner’s manual.
-
Page 11: Section D - Marking And Drilling The Mounting Holes
We also stock a comprehensive range of long mounting bolts: https://www.fasttt.bike/product-category/mounting-bolts/ If you are using the FastTT adjustable angled riser, or our spacers/wedges, they have a channel in the rear to fit the shifter wires. -
Page 12: Section D - Miscellaneous
IMPORTANT SERVICE NOTE! After a few rides we recommend that you check and retighten the mounting bolts on your FastTT Aero Bars. The bolts can become slightly loose after initial riding due to natural bedding in of the bolts into the carbon mounting base. This can potentially cause a small amount of lateral movement in the bar. -
Page 13: Section E - Warranty And Disclaimer
SECTION E – WARRANTY AND DISCLAIMER WARRANTY FastTT Aero Bars are lightweight carbon competition units. In the event of a fall or harsh impact, please check the bars carefully for any visible damage. Whilst carbon fibre is exceptionally strong, it does not tolerate impacts, and damage that is invisible to the naked eye can occur.
