Page 1

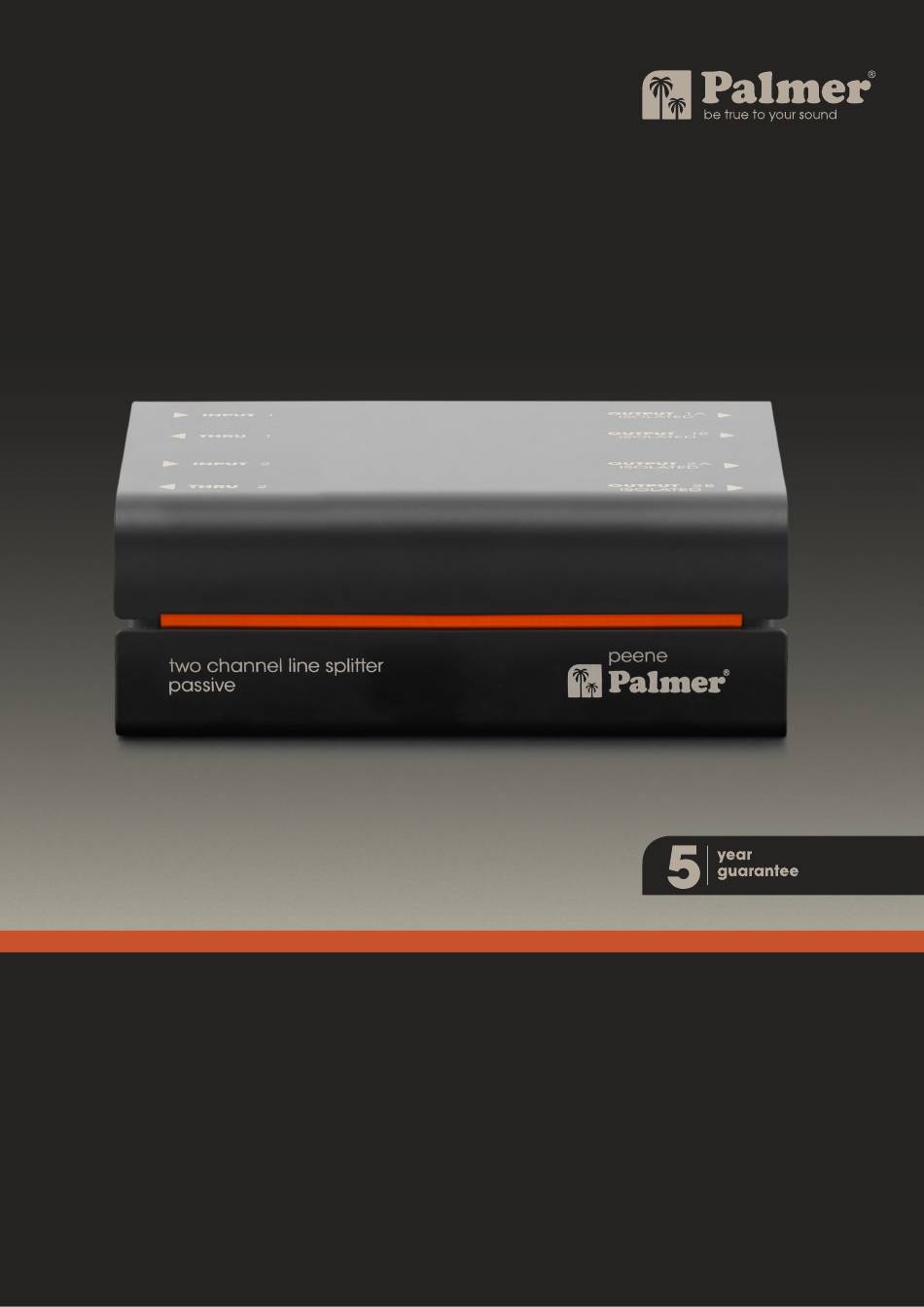

BEDIENUNGSANLEITUNG USER MANUAL MANUAL DE USUARIO MANUEL D’UTILISATEUR MANUAL DE INSTRUCCIONES INSTRUKCJA OBSŁUGI peene 2-Kanal Line-Splitter passiv river series...
Page 2
RIVER SERIES DE BEDIENUNGSANLEITUNG EN USER MANUAL MANUAL DE USUARIO MANUEL D’UTILISATEUR MANUAL DE INSTRUCCIONES INSTRUKCJA OBSŁUGI...
Page 3
FRANKFURT Lass deine Signale fließen, natürlich und kraftvoll wie ein Fluss! Die River Series verkörpert diesen Anspruch bis ins Detail: Mit hochpräzisen Schaltungen, designt von unseren preisgekrönten Ingenieuren, damit dein Sound unver- fälscht sein Ziel erreicht: das Herz deiner Zuhörer.
BEDIENUNGSANLEITUNG peene 2-Kanal Line-Splitter passiv BESTIMMUNGSGEMÄSSER GEBRAUCH Bei dem Produkt handelt es sich um ein Gerät für die Veranstaltungstechnik, sowie Studio, TV und Broadcast! Das Produkt ist für den professionellen Einsatz im Bereich der Veranstaltungstechnik, sowie Studio, TV und Broad- cast entwickelt worden und ist nicht für die Verwendung in Haushalten geeignet! Weiterhin ist dieses Produkt nur für qualifizierte Benutzer mit Fachkenntnissen im Umgang mit Veranstaltungstechnik, sowie Studio, TV und Broadcast vorgesehen!
BEDIENUNGSANLEITUNG peene 2-Kanal Line-Splitter passiv ANSCHLÜSSE UND BEDIENELEMENTE 1. INPUT 1 / INPUT 2 Symmetrische Line-Eingänge mit weiblichen 3-Pol XLR-Buchsen für Kanal 1 und 2. 2. THRU 1 / THRU 2 Symmetrische Line-Ausgänge mit männlichen 3-Pol XLR-Buchsen. THRU 1 ist direkt mit INPUT 1 verdrahtet und THRU 2 direkt mit INPUT 2.
Page 6
BEDIENUNGSANLEITUNG VERKABELUNGSBEISPIEL PA 01 PA 02 PA 03 INPUT 1 OUTPUT 1A THRU 1 OUTPUT 1B INPUT 2 OUTPUT 2A THRU 2 OUTPUT 2B...
Page 7
BEDIENUNGSANLEITUNG TECHNISCHE DATEN ALLGEMEIN Artikelnummer PEENE Produktart Line Splitter Anzahl Kanäle passiv Übertrager isoliert Anzahl Eingänge Eingangstyp symmetrisch Eingangsanschlüsse Anzahl Ausgänge Ausgangstyp symmetrisch Ausgangsanschlüsse Ground/Lift Schalter Gehäuse Aluminium Strangguss Abmessungen (H/B/T) 140 x 50 x 128 mm Gewicht 0,805 kg Umgebungstemperatur im Betrieb -20°C…70°C Relative Luftfeuchtigkeit...
Page 10
BEDIENUNGSANLEITUNG ENTSORGUNG VERPACKUNG: HERSTELLERERKLÄRUNGEN 1. Verpackungen können über die üblichen Herstellergarantie & Haftungsbeschränkung Entsorgungswege dem Wertstoffkreislauf Adam Hall GmbH zugeführt werden. Adam-Hall-Str. 1 D-61267 Neu Anspach 2. Bitte trennen Sie die Verpackung ent- sprechend der Entsorgungsgesetze und E-Mail. Info@adamhall.com / +49 (0)6081 / 9419-0. Wertstoffverordnungen in Ihrem Land.
Page 11
FRANKFURT Let your signals flow, naturally and powerfully like a river! The River Series embodies this claim down to the last detail: featuring high-precision circuits, designed by our award-winning engineers to ensure your sound reaches its destination – the hearts of your listeners.
Page 12
USER MANUAL peene 2-channel line splitter passive INTENDED USE This product is a device for event technology, as well as studio, TV and broadcast! This product has been developed for professional use in the fields of event technology, studio, TV and broadcast. It is not suitable for household use! Furthermore, this product is only intended for qualified users with specialist knowledge of event technology, as well as studio, TV and broadcast!
USER MANUAL peene 2-channel line splitter passive CONNECTIONS AND OPERATING ELEMENTS 1. INPUT 1 / INPUT 2 Balanced line inputs with female 3-pin XLR sockets for channel 1 and 2. 2. THRU 1 / THRU 2 Balanced line outputs with male 3-pin XLR connectors. THRU 1 is wired directly to INPUT 1 and THRU 2 is wired directly to INPUT 2.
USER MANUAL TECHNICAL DATA GENERAL Product number PPEENE Product type Line Splitter No. of channels Type passive Transformer isolated No. of inputs Input type balanced Input connections No. of outputs Output type balanced Output connections Ground/lift switch Housing Aluminium continuous casting Dimensions (H/W/D) 140 x 50 x 128 mm Weight...
Page 18
USER MANUAL DISPOSAL PACKAGING: MANUFACTURER’S DECLARATIONS 1. Packaging can be fed into the reusable Manufacturer's warranty & limitation of liability material cycle using the usual disposal Adam Hall GmbH methods. Adam-Hall-Str. 1 61627, Neu-Anspach, Germany 2. Please separate the packaging in accordance with disposal laws and recycling regulations in Email: Info@adamhall.com / +49 (0)6081 / 9419-0.
